COMPONENTS (INSTALLATION)

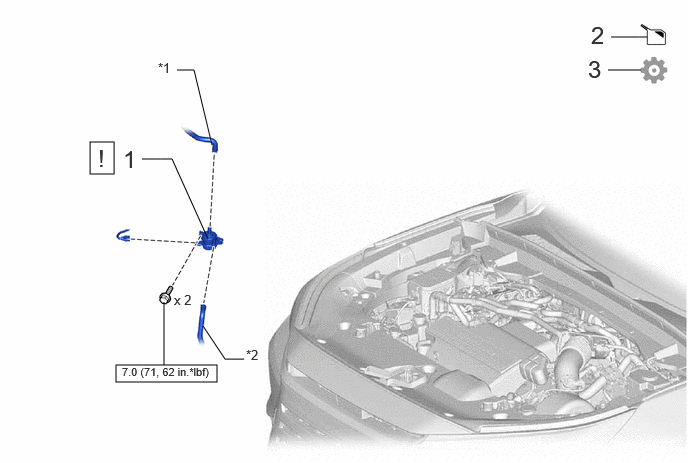

Fig 1: Water Pump With Motor (For PHEV Model) Installation Components With Torque Specifications

Procedure		Part Name Code
2	INVERTER WATER PUMP ASSEMBLY	G9040	See step 1	-	-
3	ADD COOLANT (for Inverter)	-	-	See step 2	-
4	INSPECT FOR COOLANT LEAK (for Inverter)	-	-	See step 3	-

*1	No. 2 Inverter Cooling Hose	*2	No. 3 Inverter Cooling Hose
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
