Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BATTERY VOLTAGE SENSOR

    Refer to REMOVAL [12/2023 - ]

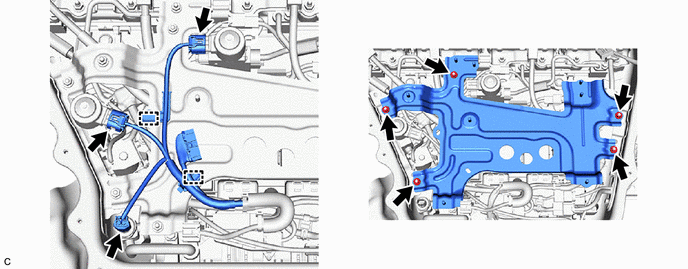

  2. REMOVE NO. 10 TRACTION BATTERY BRACKET
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1080487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

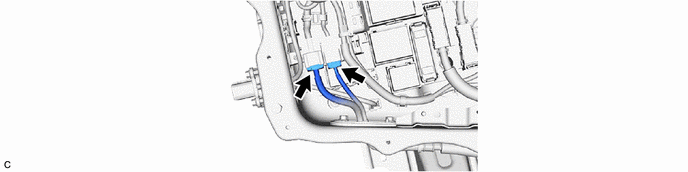

  3. DISCONNECT NO. 2 TRACTION BATTERY WIRE
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1079876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

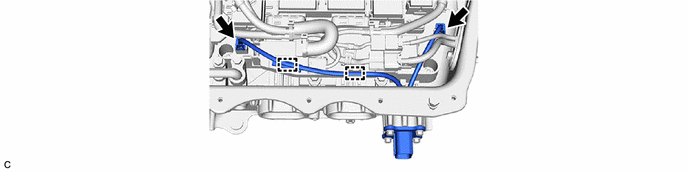

  4. DISCONNECT NO. 1 TRACTION BATTERY WIRE
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1079875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

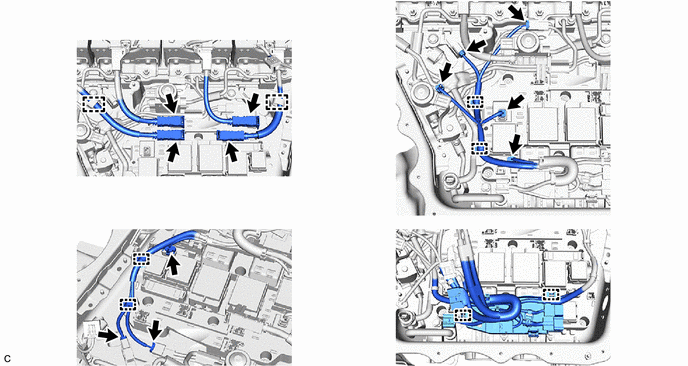

  5. REMOVE NO. 3 TRACTION BATTERY WIRE
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    NOTE:

    Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.
    1. GTY1079873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 TRACTION BATTERY WIRE
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    HINT: Perform this procedure only when replacement of the No. 2 traction battery wire is necessary.
    1. GTY1079751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

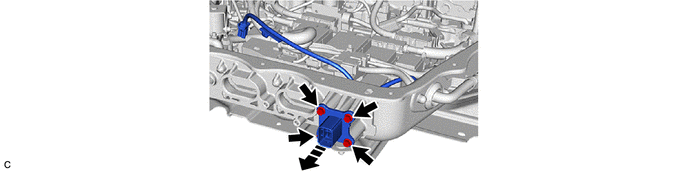

  7. REMOVE NO. 1 TRACTION BATTERY WIRE
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    HINT: Perform this procedure only when replacement of the No. 1 traction battery wire is necessary.
    1. GTY1080468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

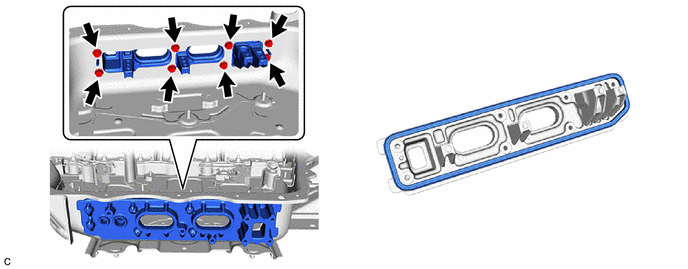

  8. REMOVE NO. 15 TRACTION BATTERY BRACKET
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    HINT: Perform this procedure only when replacement of the No. 15 traction battery bracket and No. 2 HV battery seal is necessary.
    1. GTY1079747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

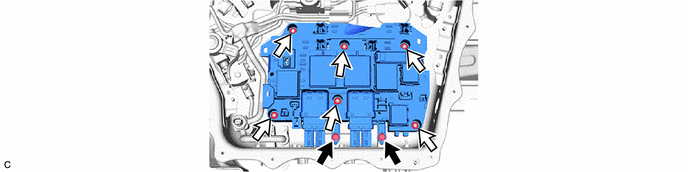

  9. REMOVE NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    NOTE:

    If the No. 2 traction battery device box assembly has been struck or dropped, replace it with a new one.
    1. GTY1079743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
