Recovery Inspection [12/2023 - ]: Procedure
- INSPECT FOR ELECTROLYTE LEAK WARNING:
Be sure to wear insulated gloves and protective goggles.
- Position the HV supply battery assembly as shown in the illustration and leave it for 5 minutes.
*a 155 mm (6.10 in.) or more - Check that no electrolyte is leaking from the HV supply battery assembly.
OK
There is no electrolyte leaking from the HV supply battery assembly.
WARNING:- Perform this procedure in an area where the battery will not be exposed to fire.
- Do not touch the HV supply battery assembly, unless absolutely necessary, as electrolyte may be leaking.
NOTE:If there is an electrolyte leak, make sure to wear insulated gloves and goggles and clean it using a piece of cloth. Do not leave electrolyte-contaminated cloths unattended. Dispose of them according to law or local regulations.
Result
Result OK NG
Result:
NG
DISCHARGING
Result:
OK
See step 2
- Position the HV supply battery assembly as shown in the illustration and leave it for 5 minutes.
- CHECK FOR DTCS
- Check the previously recorded DTCs which resulted in replacement of the HV supply battery assembly.
Result
Result Proceed to DTC record not available. A The HV supply battery assembly was replaced due to a reason other than the DTCs listed in the following table. B The HV supply battery assembly was replaced due to one of the DTCs listed in the following table. C DTC No. P1A6017 P1A6317 P1A6617 P31AA17 P0C3000 P31B300 P1C7D49
Result:
B
See step 5
Result:
C
DISCHARGING
Result:
A
See step 3
- Check the previously recorded DTCs which resulted in replacement of the HV supply battery assembly.
- CHECK HV SUPPLY BATTERY ASSEMBLY VOLTAGE WARNING:
Be sure to wear insulated gloves.
- Measure the voltage according to the value(s) in the table below.
*1 HV Battery Main Cable (A) *2 HV Battery Main Cable (B) *3 Traction Battery Plug Cable (No. 3 HV Supply Stack Sub-Assembly) - - Standard Voltage
Tester Connection Condition Specified Condition A - D Always Below 99.5 V B - C Below 298.6 V WARNING:Make sure not to cross the probes of the electrical tester.
Result
Result OK NG
Result:
NG
DISCHARGING
Result:
OK
See step 4
- Measure the voltage according to the value(s) in the table below.
- INSULATION INSPECTION OF HV SUPPLY BATTERY ASSEMBLY WARNING:
Be sure to wear insulated gloves.
- Using a megohmmeter set to 500 V, measure the insulation resistance according to the value(s) in the table below.NOTE:
Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.
Standard Resistance

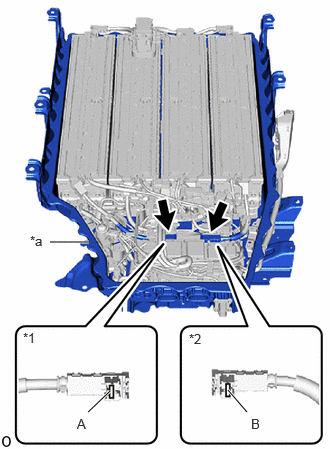

Tester Connection Condition Specified Condition A - Battery Outer Case Always 1 MΩ or higher B - Battery Outer Case Always 1 MΩ or higher *1 HV Battery Main Cable (A) *2 HV Battery Main Cable (B) *a Battery Outer Case Result
Result OK NG
Result:
NG
DISCHARGING
Result:
OK
See step 5
- Using a megohmmeter set to 500 V, measure the insulation resistance according to the value(s) in the table below.
- HV SUPPLY BATTERY ASSEMBLY VISUAL CHECK WARNING:
Be sure to wear insulated gloves.
- Check that the HV supply battery assembly is not deformed or damaged.
OK
The HV supply battery assembly is not deformed or damaged.
Result
Result OK NG
Result:
OK
RETURN HV SUPPLY BATTERY ASSEMBLY
Result:
NG
DISCHARGING
- Check that the HV supply battery assembly is not deformed or damaged.
