Caution / Notice / Hint

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (INSTALLATION)

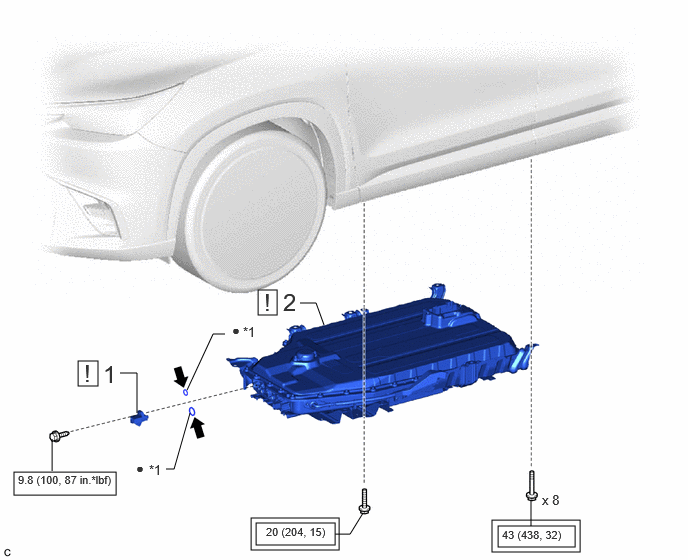

Fig 1: HV Battery (For PHEV Model) Installation Components With Torque Specifications (1 Of 5)
GTY1238646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 VALVE TO CONNECTOR TUBE 88295A See step  1 - -
2 HV SUPPLY BATTERY ASSEMBLY G9510 See step  2 - -
*1 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Compressor oil ND-OIL 11 or equivalent

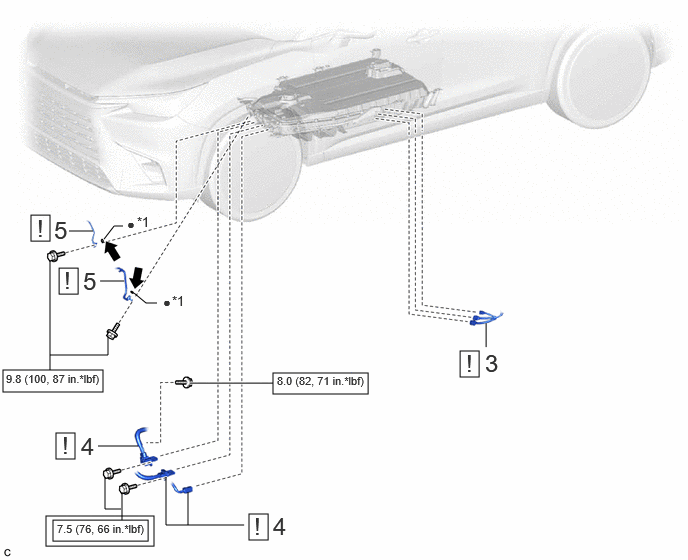

Fig 2: HV Battery (For PHEV Model) Installation Components With Torque Specifications (2 Of 5)
GTY1230378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
3 NO. 2 TRACTION BATTERY WIRE G96B2 See step  3 - -
4 FLOOR UNDER WIRE 821H1 See step  4 - -
5 NO. 9 DISCHARGE TUBE 88G15K See step  5 - -
*1 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Compressor oil ND-OIL 11 or equivalent

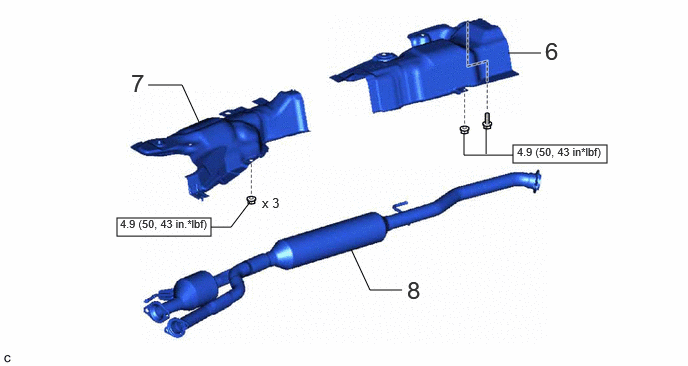

Fig 3: HV Battery (For PHEV Model) Installation Components With Torque Specifications (3 Of 5)
GTY1233085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
6 FRONT LOWER NO. 1 FLOOR HEAT INSULATOR 17410 - - -
7 NO. 1 FLOOR HEAT INSULATOR 58151A See step  7 - -
8 FRONT EXHAUST PIPE ASSEMBLY 58152A - - -
N.m (kgf/cm, ft.lbf): Specified torque - -

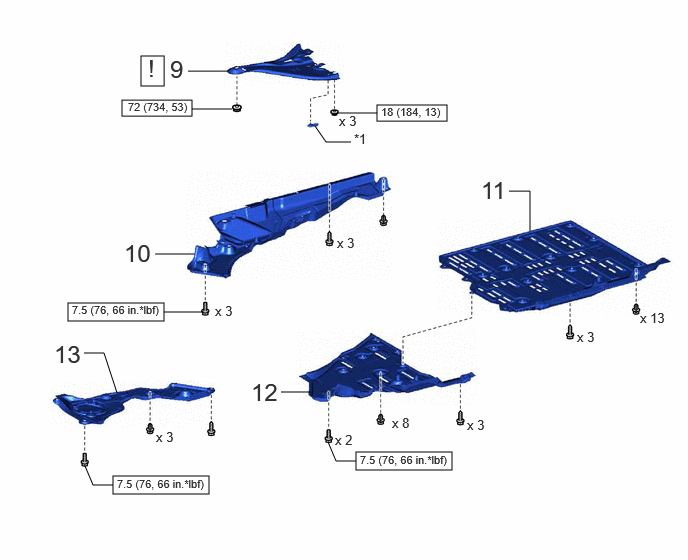

Fig 4: HV Battery (For PHEV Model) Installation Components With Torque Specifications (4 Of 5)
GTY1230587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
9 ENGINE UNDER COVER HEAT INSULATOR 51648B See step  9 - -
10 FRONT FLOOR COVER RH 58165C - - -
11 NO. 2 FLOOR UNDER COVER 58399D - - -
12 FRONT FLOOR COVER LH 58166A - - -
13 REAR ENGINE UNDER COVER RH - - - -
*1 NO. 23 TRACTION BATTERY BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque - -

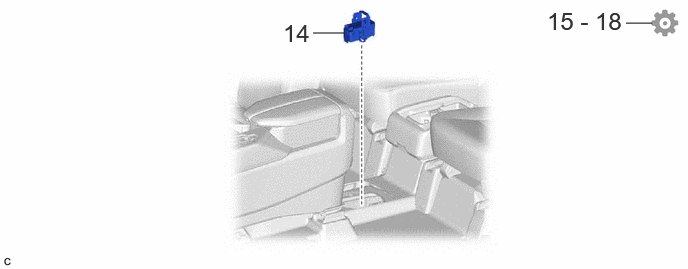

Fig 5: HV Battery (For PHEV Model) Installation Components (5 Of 5)
GTY1230785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
14 SERVICE PLUG GRIP G3834 - - -
15 CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT - - - See step  15
16 WARM UP COMPRESSOR - - - See step  16
17 INSPECT FOR REFRIGERANT LEAK - - - See step  17
18 PERFORM INITIALIZATION - - - See step  18
