COMPONENTS (INSTALLATION)

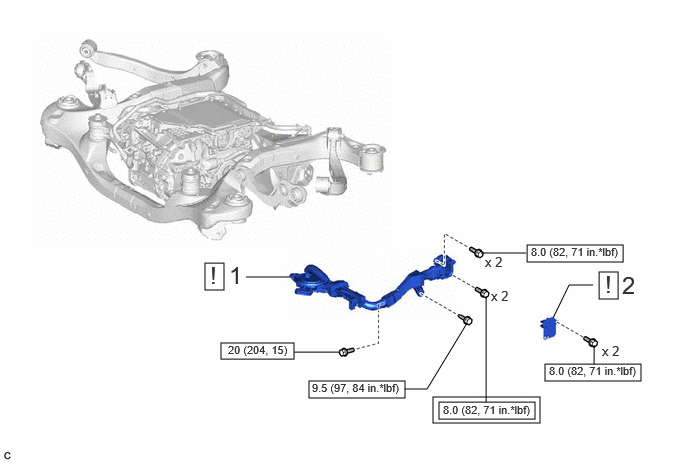

Fig 1: Frame Wire (For PHEV Model) Installation Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	NO. 3 HIGH VOLTAGE FLOOR UNDER WIRE	-	See step 1	-	-
2	UPPER INVERTER COVER SUB-ASSEMBLY	G9022B	See step 2	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

N.m (kgf/cm, ft.lbf): Specified torque

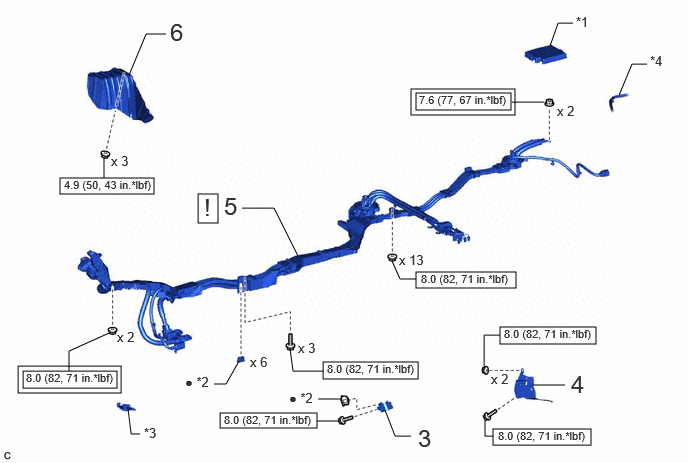

Fig 2: Frame Wire (For PHEV Model) Installation Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	WIRE HARNESS CLAMP BRACKET	-	-	-	-
4	WIRE HARNESS PROTECTOR COVER	-	-	-	-
5	INSTALL FLOOR UNDER WIRE	821H1	See step 5	-	-
6	FRONT NO. 1 FLOOR HEAT INSULATOR SUB-ASSEMBLY	58041A	-	-	-

*1	UPPER NO. 4 RELAY BLOCK COVER	*2	STUD CLAMP
*3	NO. 1 TERMINAL CAP	*4	HV SOCKET INVERTER WIRE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

Fig 3: Frame Wire (For PHEV Model) Installation Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
7	REAR SUSPENSION MEMBER SUB-ASSEMBLY	51206A	-	-	-

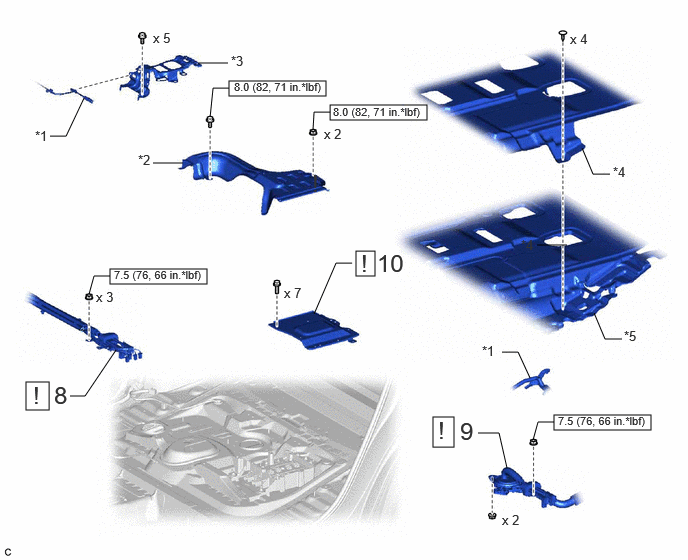

Fig 4: Frame Wire (For PHEV Model) Installation Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
8	FLOOR UNDER WIRE	821H1	See step 8	-	-
9	NO. 3 HIGH VOLTAGE FLOOR UNDER WIRE	-	See step 9	-	-
10	JUNCTION BLOCK COVER	82672A	See step 10	-	-

*1	FLOOR WIRE	*2	WIRING HARNESS CLAMP BRACKET
*3	NO. 3 CONSOLE BOX MOUNTING BRACKET	*4	FRONT FLOOR CARPET ASSEMBLY
*5	NO. 1 REAR FLOOR SILENCER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

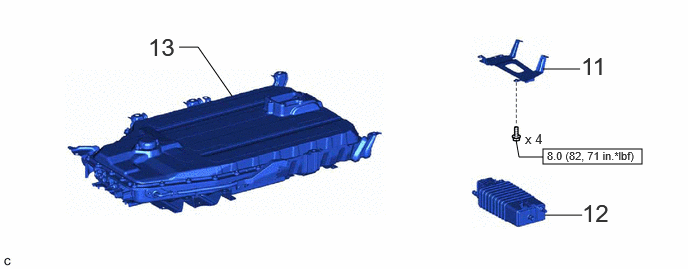

Fig 5: Frame Wire (For PHEV Model) Installation Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
11	CHARCOAL CANISTER BASE BRACKET	77751	-	-	-
12	CHARCOAL CANISTER ASSEMBLY	77740	-	-	-
13	HV SUPPLY BATTERY ASSEMBLY	G9510	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

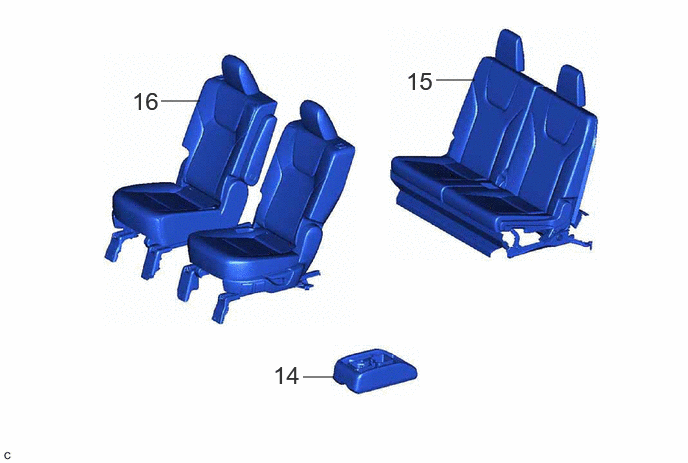

Fig 6: Frame Wire (For PHEV Model) Installation Components (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
14	REAR CONSOLE BOX ASSEMBLY	58910C	-	-	-
15	REAR NO. 2 SEAT ASSEMBLY	-	-	-	-
16	REAR NO. 1 SEAT ASSEMBLY	-	-	-	-

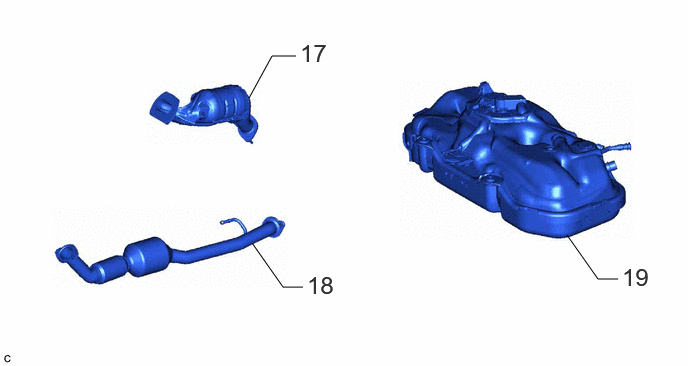

Fig 7: Frame Wire (For PHEV Model) Installation Components (7 Of 9)

Procedure		Part Name Code
17	EXHAUST MANIFOLD ASSEMBLY RH	17140	-	-	-
18	FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY	17402	-	-	-
19	FUEL TANK SUB-ASSEMBLY	77001A	-	-	-

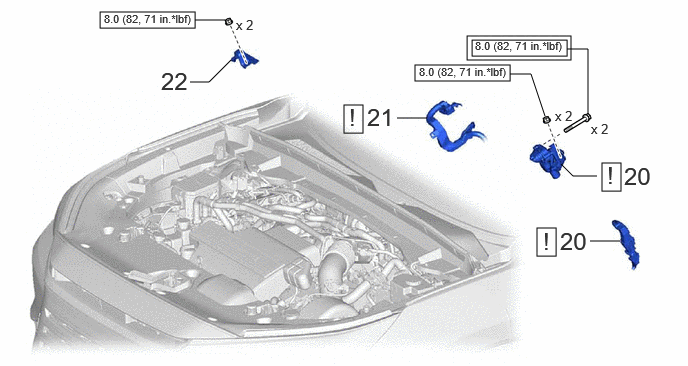

Fig 8: Frame Wire (For PHEV Model) Installation Components With Torque Specifications (8 Of 9)

Procedure		Part Name Code
20	FLOOR UNDER WIRE	821H1	See step 20	-	-
21	ENGINE ROOM MAIN WIRE	82111	See step 21	-	-
22	NO. 2 INVERTER PROTECTOR	G921F	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

N.m (kgf/cm, ft.lbf): Specified torque

Fig 9: Frame Wire (For PHEV Model) Installation Components (9 Of 9)

Procedure		Part Name Code
23	SERVICE PLUG GRIP	G3834	-	-	-
24	CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT	-	-	-	See step 24
25	WARM UP COMPRESSOR	-	-	-	See step 25
26	INSPECT FOR REFRIGERANT LEAK	-	-	-	See step 26
27	PERFORM INITIALIZATION	-	-	-	See step 27
