WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 1 junction block assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Auxiliary battery terminal is disconnected/reconnected Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly Parking Support Brake System* Refer to INITIALIZATION [09/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

WARNING:
  • Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information .
    GTY588409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [09/2023 - ]

  • To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.
    GTY588386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]

  • To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Front Camera System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [09/2023 - ]
Adaptive High Beam System
Lighting System (w/ Automatic Headlight Beam Level Control System)
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Back Door System Reset back door close position Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System After the ignition switch is turned to ON, the servo motor and cooler expansion valve standard position is recognized. -


COMPONENTS (REMOVAL)

Fig 1: Junction Block (For PHEV Model) Removal Components (1 Of 5)
GTY1237570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 PRECAUTION - See step  1 - -
2 SERVICE PLUG GRIP G3834 - - -

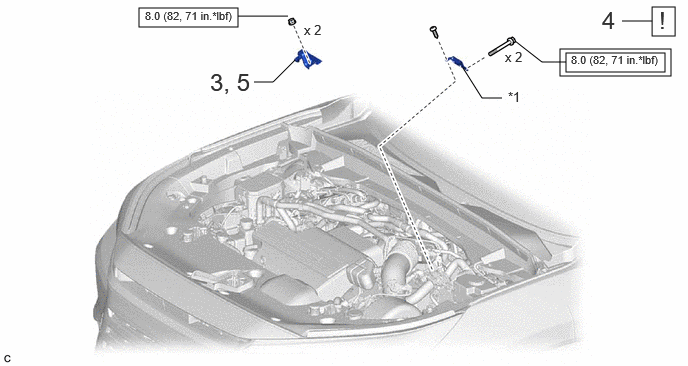

Fig 2: Junction Block (For PHEV Model) Removal Components With Torque Specifications (2 Of 5)
GTY1228196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
3 REMOVE NO. 2 INVERTER PROTECTOR G921F - - -
4 CHECK TERMINAL VOLTAGE - See step  4 - -
5 INSTALL NO. 2 INVERTER PROTECTOR G921F - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Fig 3: Junction Block (For PHEV Model) Removal Components (3 Of 5)
GTY1233052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
6 REAR NO. 1 SEAT ASSEMBLY - - - -
7 REAR NO. 2 SEAT ASSEMBLY - - - -
8 REAR CONSOLE BOX ASSEMBLY 58910C - - -
Fig 4: Junction Block (For PHEV Model) Removal Components (4 Of 5)
GTY1229425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
9 JUNCTION BLOCK COVER 82672A See step  9 - -
10 NO. 3 HIGH VOLTAGE FLOOR UNDER WIRE - - - -
11 FLOOR UNDER WIRE 821H1 - - -
*1 FLOOR WIRE *2 WIRING HARNESS CLAMP BRACKET
*3 NO. 3 CONSOLE BOX MOUNTING BRACKET *4 FRONT FLOOR CARPET ASSEMBLY
*5 NO. 1 REAR FLOOR SILENCER - -
Fig 5: Junction Block (For PHEV Model) Removal Components (5 Of 5)
GTY1237455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
12 NO. 1 JUNCTION BLOCK ASSEMBLY 82670A See step  12 - -
