Inspection [09/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT NO. 1 TRACTION BATTERY DEVICE BOX
    1. Inspect SMRB:
      1. Measure the resistance according to the value(s) in the table below.
        GTY1240268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Traction Battery Device Box)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        z17-1 (+) - e1-1 (CBI) Auxiliary battery voltage not applied between terminals z15-4 (SMRB) and z15-3 (GND) 10 kΩ or higher
        Auxiliary battery voltage applied between terminals z15-4 (SMRB) and z15-3 (GND) Below 1 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z15-4 (SMRB) - z15-3 (GND) -40 to 80°C (-40 to 176°F) 19.0 to 59.0 Ω

        If the result is not as specified, replace the No. 1 traction battery device box.

    2. Inspect SMRG:
      1. Measure the resistance according to the value(s) in the table below.

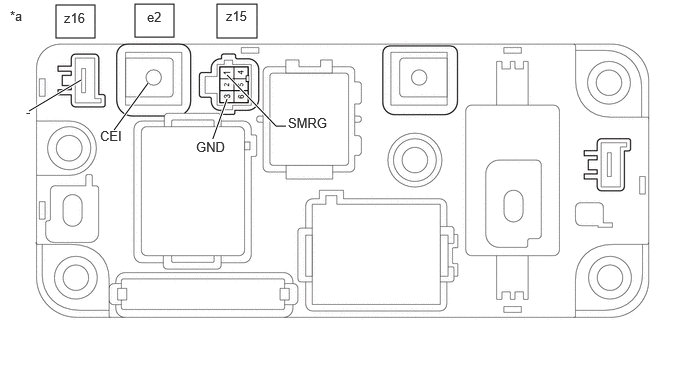

        GTY1233516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Traction Battery Device Box)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        z16-1 (-) - e2-1 (CEI) Auxiliary battery voltage not applied between terminals z15-1 (SMRG) and z15-3 (GND) 10 kΩ or higher
        Auxiliary battery voltage applied between terminals z15-1 (SMRG) and z15-3 (GND) Below 1 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z15-1 (SMRG) - z15-3 (GND) -40 to 80°C (-40 to 176°F) 19.0 to 59.0 Ω

        If the result is not as specified, replace the No. 1 traction battery device box.

    3. Inspect SMRP:
      1. Measure the resistance according to the value(s) in the table below.
        GTY1233521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Traction Battery Device Box)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        z16-1 (-) - e2-1 (CEI) Auxiliary battery voltage not applied between terminals z15-6 (SMRP) and z15-3 (GND) 10 kΩ or higher
        Auxiliary battery voltage applied between terminals z15-6 (SMRP) and z15-3 (GND) 24.3 to 29.7 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z15-6 (SMRP) - z15-3 (GND) -40 to 80°C (-40 to 176°F) 140 to 290 Ω

        If the result is not as specified, replace the No. 1 traction battery device box.
