Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING GTS
    1. GTY1075510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Read the Data List.

        Powertrain > HV Battery > Data List

        Tester Display
        Hybrid/EV Battery Temperature 1
        Hybrid/EV Battery Temperature 2
        Hybrid/EV Battery Temperature 3
        Hybrid/EV Battery Temperature 4
        Hybrid/EV Battery Temperature 5
        Hybrid/EV Battery Temperature 6
        Hybrid/EV Battery Temperature 7
        Hybrid/EV Battery Temperature 8
        Hybrid/EV Battery Temperature 9
        Hybrid/EV Battery Temperature 10
        Hybrid/EV Battery Temperature 11
        Hybrid/EV Battery Temperature 12
        Hybrid/EV Battery Temperature 13
        Hybrid/EV Battery Temperature 14
        Hybrid/EV Battery Temperature 15
        Hybrid/EV Battery Temperature 16
        Hybrid/EV Battery Temperature 17
        Hybrid/EV Battery Temperature 18
        Hybrid/EV Battery Temperature 19
        Hybrid/EV Battery Temperature 20
        NOTE:

        If any of the temperatures listed in "Hybrid Battery Temperature 1 to 20" are 50°C or more, leave the vehicle until the temperature drops to less than 50°C.

  2. REMOVE NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE NO. 2 TRACTION BATTERY COOLER TUBE
    See step  2
  4. REMOVE NO. 1 TRACTION BATTERY COOLER TUBE
    See step  3
  5. REMOVE NO. 14 TRACTION BATTERY BRACKET
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1079761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
        NOTE:

        Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

      2. Remove the 2 nuts to disconnect the traction battery plug cable.
      3. Remove the 3 nuts and No. 14 traction battery bracket from the No. 2 HV supply stack sub-assembly.
  6. DISCONNECT NO. 5 TRACTION BATTERY CABLE (NO. 2 HV SUPPLY STACK SUB-ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1079450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

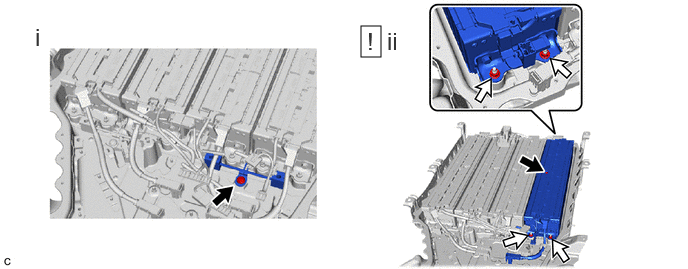

    1. GTY1079706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip.
      2. Remove the bolt, 4 nuts and No. 1 HV supply stack sub-assembly.
        NOTE:

        If the No. 1 traction battery cooler sheet is stuck to the bottom surface of the No. 1 HV supply stack sub-assembly, carefully remove the sheet to prevent damaging the bottom surface of the No. 1 HV supply stack sub-assembly.

  8. REMOVE NO. 3 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1079110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 HV Supply Stack Sub-assembly *2 No. 19 Traction Battery Bracket
      1. Remove the bolt, 4 nuts, No. 19 traction battery bracket and No. 3 HV supply stack sub-assembly.
        NOTE:

        If the No. 1 traction battery cooler sheet is stuck to the bottom surface of the No. 3 HV supply stack sub-assembly, carefully remove the sheet to prevent damaging the bottom surface of the No. 3 HV supply stack sub-assembly.

  9. REMOVE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1080472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 HV Supply Stack Sub-assembly *2 No. 16 Traction Battery Bracket
      1. Remove the clip.
      2. Remove the bolt, 4 nuts, No. 16 traction battery bracket and No. 2 HV supply stack sub-assembly.
        NOTE:

        If the No. 1 traction battery cooler sheet is stuck to the bottom surface of the No. 2 HV supply stack sub-assembly, carefully remove the sheet to prevent damaging the bottom surface of the No. 2 HV supply stack sub-assembly.

  10. REMOVE NO. 4 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

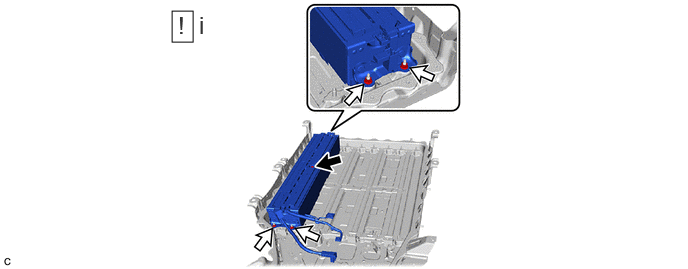

    1. GTY1080484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, 4 nuts and No. 4 HV supply stack sub-assembly.
        NOTE:

        If the No. 1 traction battery cooler sheet is stuck to the bottom surface of the No. 4 HV supply stack sub-assembly, carefully remove the sheet to prevent damaging the bottom surface of the No. 4 HV supply stack sub-assembly.

  11. REMOVE WIRE HARNESS CLAMP
    HINT:
    Perform this procedure only when replacement of the wire harness clamp is necessary.
    1. GTY1080405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 21 TRACTION BATTERY BRACKET

    See step  2

  13. REMOVE NO. 1 TRACTION BATTERY COOLER CONDUCTOR

    See step  3

  14. REMOVE NO. 1 TRACTION BATTERY COOLER SHEET

    See step  4

  15. REMOVE NO. 1 TRACTION BATTERY HEATER

    See step  5

  16. REMOVE NO. 2 TRACTION BATTERY HEATER

    See step  6

  17. PERFORM RECOVERY INSPECTION
    1. Before returning the HV supply stack sub-assembly, make sure to perform a recovery inspection.

      Refer to RECOVERY INSPECTION [12/2023 - ]
