Recovery Inspection [12/2023 - ]: Procedure
- INSPECT FOR ELECTROLYTE LEAK WARNING:
Be sure to wear insulated gloves and protective goggles.
- Inspect for electrolyte leaks after removing the HV supply stack sub-assembly.
OK
No leak was found on the lower part of the battery outer case.
WARNING:- Perform this procedure in an area where the battery will not be exposed to fire.
- Do not touch the HV supply stack sub-assembly, unless absolutely necessary, as electrolyte may be leaking.
NOTE:If there is an electrolyte leak, make sure to wear insulated gloves and goggles and clean it using a piece of cloth. Do not leave electrolyte-contaminated cloths unattended. Dispose of them according to law or local regulations.
Result
Result OK NG
Result:
NG
DISCHARGING
Result:
OK
See step 2
- Inspect for electrolyte leaks after removing the HV supply stack sub-assembly.
- CHECK FOR DTCS
- Check the previously recorded DTCs which resulted in replacement of the HV supply stack sub-assembly.
Result
Result Proceed to DTC record not available. A The HV supply stack sub-assembly was replaced due to a reason other than the DTCs listed in the following table. B The HV supply stack sub-assembly was replaced due to one of the DTCs listed in the following table. C DTC No. P1A60-17 P31AA-17 P0C30-00 P31B3-00 P1C7D-49
Result:
B
See step 5
Result:
C
DISCHARGING
Result:
A
See step 3
- Check the previously recorded DTCs which resulted in replacement of the HV supply stack sub-assembly.
- CHECK HV SUPPLY STACK SUB-ASSEMBLY VOLTAGE WARNING:
Be sure to wear insulated gloves and protective goggles.

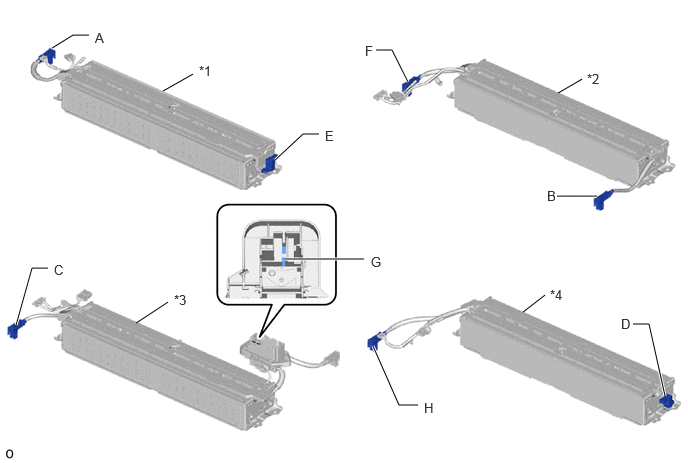

- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A - E Always Below 100.8 V B - F C - G D - H WARNING:Make sure not to cross the probes of the electrical tester.
*1 No. 1 HV Supply Stack Sub-assembly *2 No. 2 HV Supply Stack Sub-assembly *3 No. 3 HV Supply Stack Sub-assembly *4 No. 4 HV Supply Stack Sub-assembly Result
Result OK NG
Result:
NG
DISCHARGING
Result:
OK
See step 4
- Measure the voltage according to the value(s) in the table below.
- INSULATION INSPECTION OF HV SUPPLY STACK SUB-ASSEMBLY WARNING:
Be sure to wear insulated gloves and protective goggles.

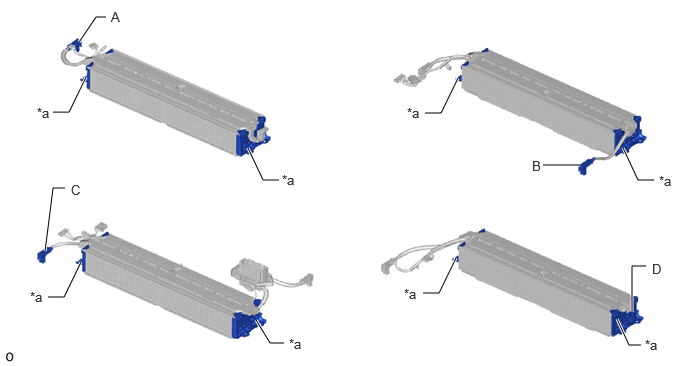

- Using a megohmmeter set to 500 V, measure the insulation resistance according to the value(s) in the table below.NOTE:
Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.
Standard Resistance
Tester Connection Condition Specified Condition A - Insulation Inspection Area of the Bolt A Always 1 MΩ or higher B - Insulation Inspection Area of the Bolt B C - Insulation Inspection Area of the Bolt C D - Insulation Inspection Area of the Bolt D *a Insulation Inspection Area - - Result
Result OK NG
Result:
NG
DISCHARGING
Result:
OK
See step 5
- Using a megohmmeter set to 500 V, measure the insulation resistance according to the value(s) in the table below.
- HV SUPPLY STACK SUB-ASSEMBLY VISUAL CHECK WARNING:
Be sure to wear insulated gloves and protective goggles.
- Check that the HV supply stack sub-assembly is not deformed or damaged.
OK
The HV supply stack sub-assembly is not deformed or damaged.
Result
Result OK NG
Result:
OK
RETURN HV SUPPLY STACK SUB-ASSEMBLY
Result:
NG
DISCHARGING
- Check that the HV supply stack sub-assembly is not deformed or damaged.
