Installation [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 2 TRACTION BATTERY HEATER

    See step  1

  2. INSTALL NO. 1 TRACTION BATTERY HEATER

    See step  2

  3. INSTALL NO. 1 TRACTION BATTERY COOLER SHEET
    See step  1
  4. INSTALL NO. 1 TRACTION BATTERY COOLER CONDUCTOR
    See step  2
  5. INSTALL NO. 21 TRACTION BATTERY BRACKET

    See step  5

  6. INSTALL WIRE HARNESS CLAMP
    HINT:
    Perform this procedure only when replacement of the wire harness clamp is necessary.
  7. INSTALL NO. 4 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    NOTE:

    Tighten the 4 nuts and bolt in the order of 4 nuts, bolt.

    Bolt

    Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

    Nut

    Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

  8. INSTALL NO. 2 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    NOTE:

    Tighten the 4 nuts and bolt in the order of 4 nuts, bolt.

    Bolt

    Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

    Nut

    Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

  9. INSTALL NO. 3 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

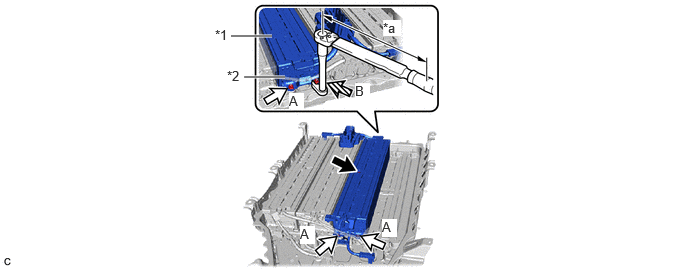

    1. GTY1080002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 HV Supply Stack Sub-assembly *2 No. 19 Traction Battery Bracket
      *a Torque Wrench Fulcrum Length - -
      1. Temporarily install the No. 3 HV supply stack sub-assembly and No. 19 traction battery bracket to the No. 1 traction battery carrier with the bolt, 4 nuts.
      2. Fully tighten the 3 nuts (A).

        Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

      3. Using the 12 mm union nut wrench, tighten the nut (B).

        Specified tightening torque

        Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [09/2023 - ]

        • When using a union nut wrench (fulcrum length of 20 mm (0.787 in.)) + torque wrench (fulcrum length of 162 mm (6.378 in.)): 14.2 N.m (145 kgf/cm, 10 ft.lbf)
      4. Fully tighten the bolt.

        Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

  10. INSTALL NO. 1 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    NOTE:

    Tighten the 4 nuts and bolt in the order of 4 nuts, bolt.

    Bolt

    Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

    Nut

    Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

  11. CONNECT NO. 5 TRACTION BATTERY CABLE (NO. 2 HV SUPPLY STACK SUB-ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
  12. INSTALL NO. 14 TRACTION BATTERY BRACKET
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  13. INSTALL NO. 1 TRACTION BATTERY COOLER TUBE
    See step  8
  14. INSTALL NO. 2 TRACTION BATTERY COOLER TUBE
    See step  14
  15. INSPECT REFRIGERANT LEAK

    See step  1

  16. INSTALL NO. 2 TRACTION BATTERY DEVICE BOX ASSEMBLY

    See step  1

  17. PERFORM INITIALIZATION

    Refer to WORK PROCEDURE [12/2023 - ]
