Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 4 HV SUPPLY STACK SUB-ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE NO. 21 TRACTION BATTERY BRACKET
    1. GTY1079436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 TRACTION BATTERY COOLER CONDUCTOR

    See step  3

  4. REMOVE NO. 1 TRACTION BATTERY COOLER SHEET

    See step  4

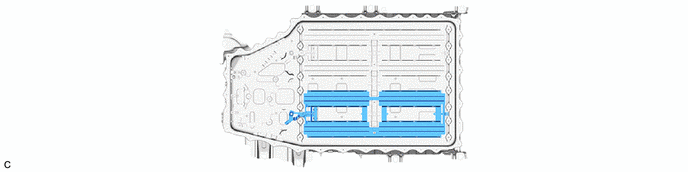

  5. REMOVE NO. 1 TRACTION BATTERY HEATER
    1. GTY1079434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 TRACTION BATTERY HEATER
    1. GTY1079448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
