Removal [09/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR NO. 1 SEAT ASSEMBLY
- for Captain Seat Type:
  Refer to REMOVAL [09/2023 - ]
- for 60/40 Split Seat Type:
  for LH Side: Refer to REMOVAL [09/2023 - ]

  for RH Side: Refer to REMOVAL [09/2023 - ]
REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]
REMOVE REAR CONSOLE BOX ASSEMBLY (for Captain Seat Type)
Refer to REMOVAL [09/2023 - ]

REMOVE FRONT FLOOR CARPET ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 REAR FLOOR SILENCER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 HV BATTERY INTAKE DUCT LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

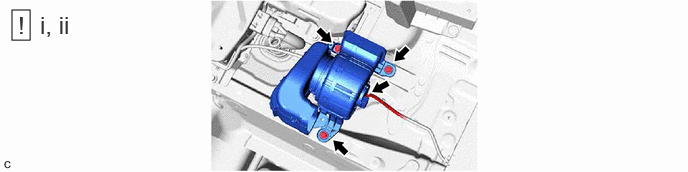

REMOVE BATTERY COOLING BLOWER ASSEMBLY

Disconnect the battery cooling blower assembly connector.
Remove the 3 bolts and battery cooling blower assembly from the HV battery.
NOTE:

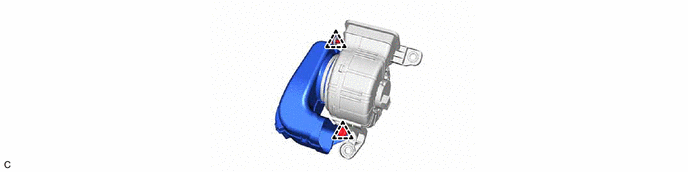

- Be sure not to touch the fan part of the battery cooling blower assembly.
- Do not lift the battery cooling blower assembly using the wire harness.

REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT
1. Use the same procedure as for the LH side.
REMOVE NO. 2 BATTERY COOLING BLOWER ASSEMBLY
1. Use the same procedure as for the LH side.

REMOVE NO. 2 HV BATTERY INTAKE DUCT LH

REMOVE NO. 2 HYBRID BATTERY INTAKE DUCT
1. Use the same procedure as for the LH side.
