Removal [12/2023 - ]: Procedure

Refer to REMOVAL [12/2023 - ]

NOTE: Using height adjustment attachments and plate lift attachments, keep the engine assembly horizontal. To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly. Using an engine sling device and engine lift, secure the engine assembly before servicing.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Using SST, hold the crankshaft pulley.
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021

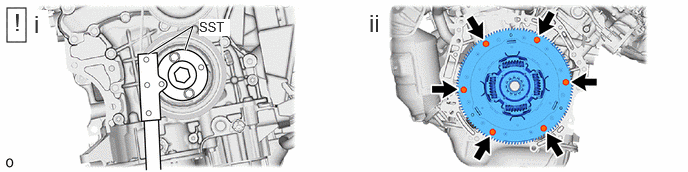

   2. Remove the 6 bolts and transmission input damper assembly from the flywheel sub-assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Using SST, hold the crankshaft pulley.
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021

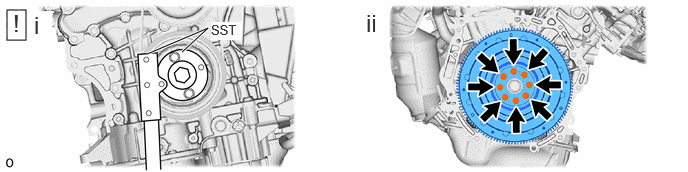

   2. Remove the 8 bolts and flywheel sub-assembly from the crankshaft.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Cut Position

   -

   -

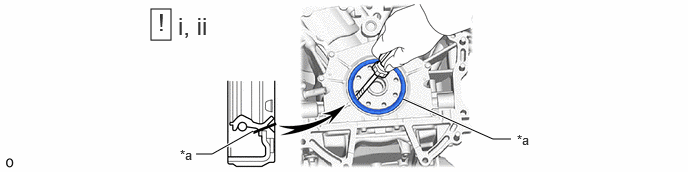

   1. Using a knife, cut through the lip of the rear engine oil seal.
   2. Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
      NOTE:

      Be careful not to damage the crankshaft.
