Installation [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR ENGINE OIL SEAL
    NOTE:
    • Using height adjustment attachments and plate lift attachments, keep the engine assembly horizontal.
    • To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
    • Using an engine sling device and engine lift, secure the engine assembly before servicing.

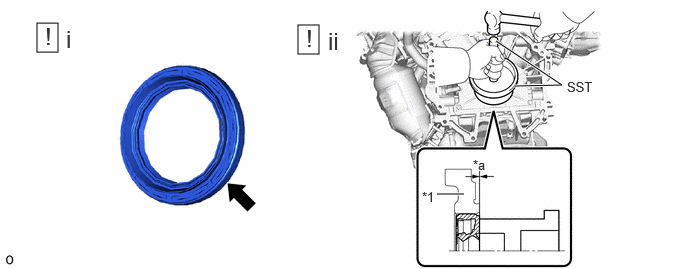

    1. GTY1233221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Engine Oil Seal Retainer - -
      *a Oil Seal Protrusion Height - -
      1. Apply MP grease to the lip of a new rear engine oil seal.
      2. Using SST and a hammer, tap in the rear engine oil seal.
        • SST: 09223-15030
        • SST: 09950-70010
          1. 09951-07150

        Oil Seal Protrusion Height

        -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

        NOTE:
        • Keep the lip free from foreign matter.
        • Do not tap in the rear engine oil seal at an angle.
  2. INSTALL FLYWHEEL SUB-ASSEMBLY

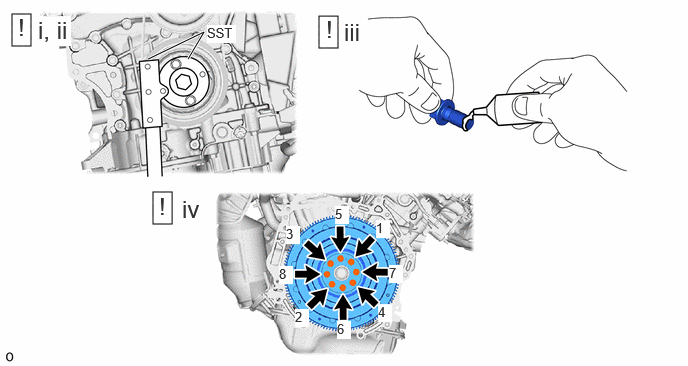

    1. Fig 1: Flywheel Sub-Assembly Tightening Sequence
      GTY1229654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, hold the crankshaft pulley.
        • SST: 09213-70011
          1. 09213-70020
        • SST: 09330-00021
      2. Clean the 8 bolts and 8 bolt holes.
      3. Apply adhesive to the 8 bolts.

        Adhesive

        Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      4. Install the flywheel sub-assembly to the crankshaft with the 8 bolts. Uniformly tighten the 8 bolts in the order shown in the illustration.

        Torque: 83 N.m (846 kgf/cm, 61 ft.lbf)

        NOTE:

        Do not start the engine for at least 1 hour after installing the flywheel sub-assembly.

  3. INSTALL TRANSMISSION INPUT DAMPER ASSEMBLY

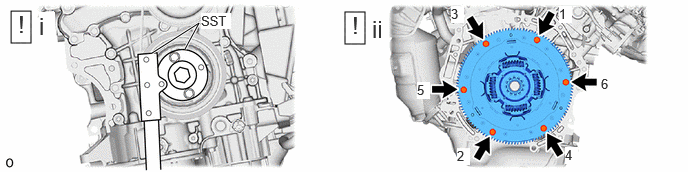

    1. Fig 2: Transmission Input Damper Assembly Tightening Sequence
      GTY1238698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, hold the crankshaft pulley.
        • SST: 09213-70011
          1. 09213-70020
        • SST: 09330-00021
      2. Install the transmission input damper assembly to the flywheel sub-assembly with 6 new bolts. Uniformly tighten the 6 bolts in the order shown in the illustration.

        Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

        NOTE:
        • Make sure that there is no oil on the transmission input damper assembly or flywheel sub-assembly.
        • Make sure to install the transmission input damper assembly in the correct direction.
        • Do not allow grease to contact the splines of the transmission input damper assembly or the input shaft.
  4. INSTALL HYBRID VEHICLE TRANSAXLE ASSEMBLY

    Refer to INSTALLATION [12/2023 - ]
