COMPONENTS (INSTALLATION)

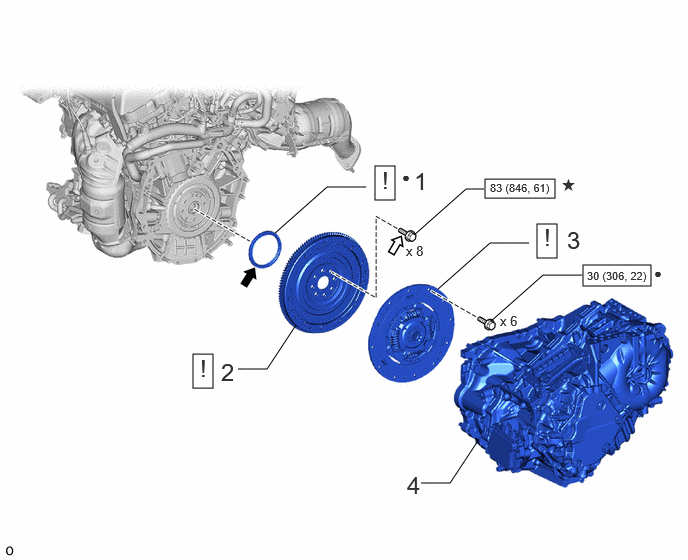

Fig 1: Rear Crankshaft Oil Seal Installation Components With Torque Specifications

Procedure		Part Name Code
1	REAR ENGINE OIL SEAL	11381A	See step 1	-	-
2	FLYWHEEL SUB-ASSEMBLY	13405	See step 2	-	-
3	TRANSMISSION INPUT DAMPER ASSEMBLY	31270	See step 3	-	-
4	HYBRID VEHICLE TRANSAXLE ASSEMBLY	30900	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease		Adhesive 1324
*	Precoated part	-	-
