Installation [12/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Oil Seal Protrusion Height

   -

   -

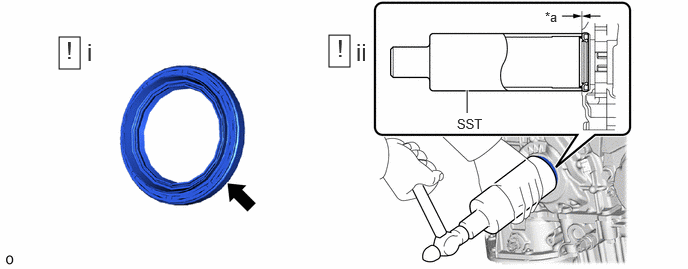

   1. Apply MP grease to the lip of a new timing chain case oil seal.
   2. Using SST and a hammer, tap in the timing chain case oil seal until its surface is flush with the timing chain cover assembly edge.
      • SST: 09316-60011
        1. 09316-00011

      Oil Seal Protrusion Height

      0 to 1.0 mm (0 to 0.0394 in.)

      NOTE:

      • Keep the lip free from foreign matter.
      • Do not tap in the timing chain case oil seal at an angle.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold	-	-
   	Turn	-	-

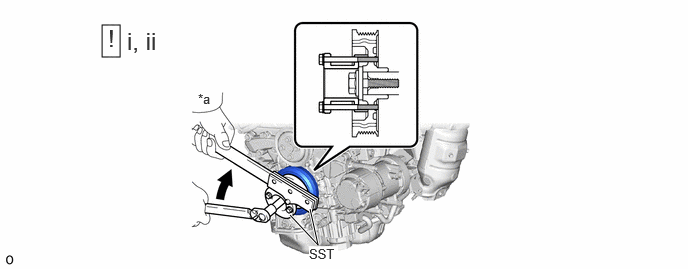

   1. Align the crankshaft timing gear key with the key groove of the crankshaft pulley.
   2. Using SST to hold the crankshaft pulley in place, install the crankshaft pulley set bolt.
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021

      Torque: 260 N.m (2651 kgf/cm, 192 ft.lbf)

Refer to INSTALLATION [12/2023 - ]
