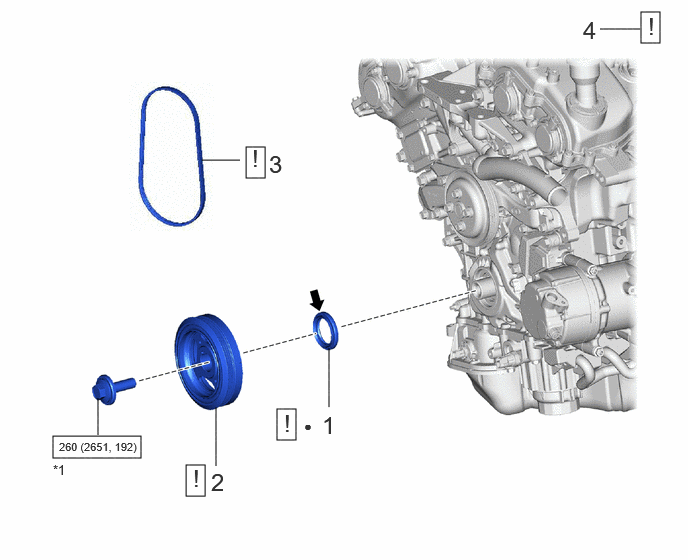

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TIMING CHAIN CASE OIL SEAL | 11301C | See step 1 | - | - |
| 2 | CRANKSHAFT PULLEY | 13471 | See step 2 | - | - |
| 3 | V-RIBBED BELT | 16361A | See step 3 | - | - |
| 4 | REMOVE ENGINE ASSEMBLY FROM ENGINE STAND | - | See step 4 | - | - |
| *1 | CRANKSHAFT PULLEY SET BOLT | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
