Parts Location [12/2023 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

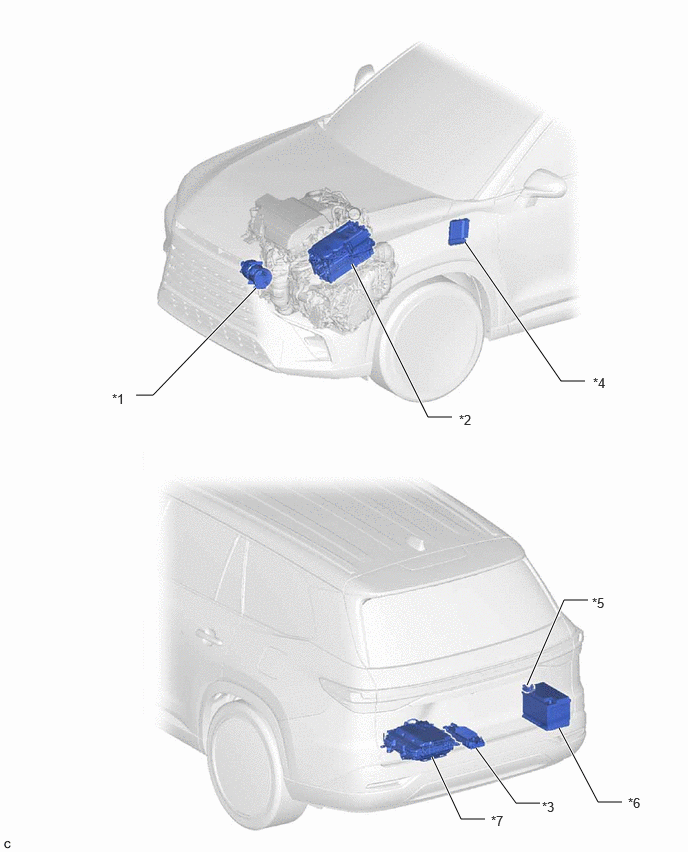

| *1 |
COMPRESSOR WITH MOTOR ASSEMBLY |
*2 |
HYBRID MOTOR CONTROL INVERTER ASSEMBLY |
| *3 |
DC/DC CONVERTER ASSEMBLY |
*4 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *5 |
BATTERY STATE SENSOR ASSEMBLY |
*6 |
AUXILIARY BATTERY |
| *7 |
ELECTRIC VEHICLE CHARGER ASSEMBLY |
- |
- |
