Parts Location [12/2023 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

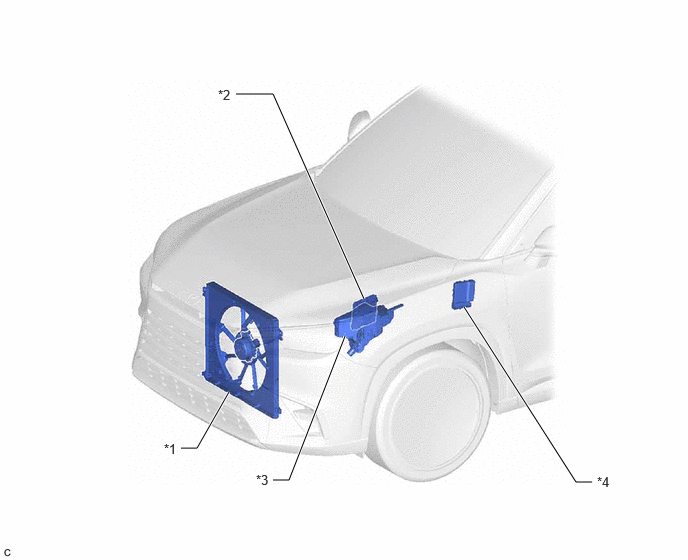

| *1 |
FAN WITH MOTOR ASSEMBLY
- COOLING FAN MOTOR
- COOLING FAN ECU |
*2 |
ECM |
| *3 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- EFI-MAIN NO. 1 RELAY |
*4 |
HYBRID VEHICLE CONTROL ECU |
