Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SUSPENSION TOWER DAMPER

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 6

  4. DISCONNECT NO. 2 MOTOR COOLING HOSE

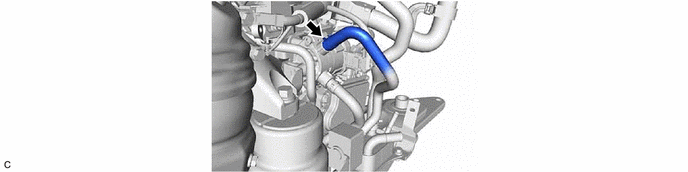

    1. GTY1229695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT NO. 1 MOTOR COOLING HOSE

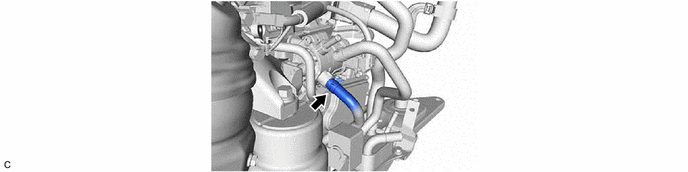

    1. GTY1229696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE OIL PUMP WITH MOTOR ASSEMBLY

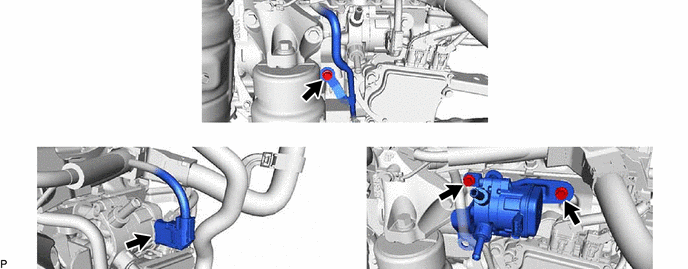

    1. GTY1235501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
