Components [12/2023 - ]
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

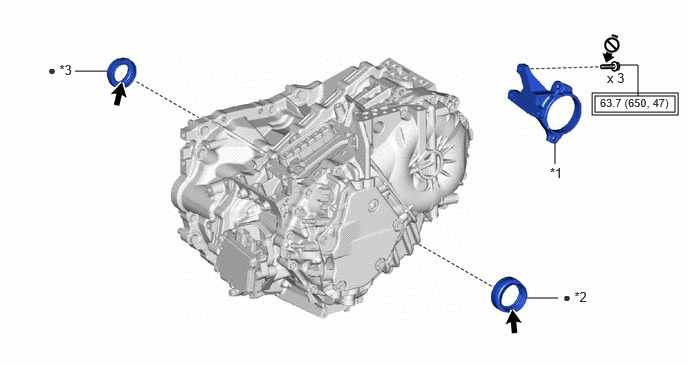

| *1 | DRIVE SHAFT BEARING BRACKET | *2 | FRONT DRIVE SHAFT OIL SEAL LH |
| *3 | FRONT DRIVE SHAFT OIL SEAL RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| MP grease | Do not apply lubricants to the threaded parts |
