Parts Location [09/2023 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

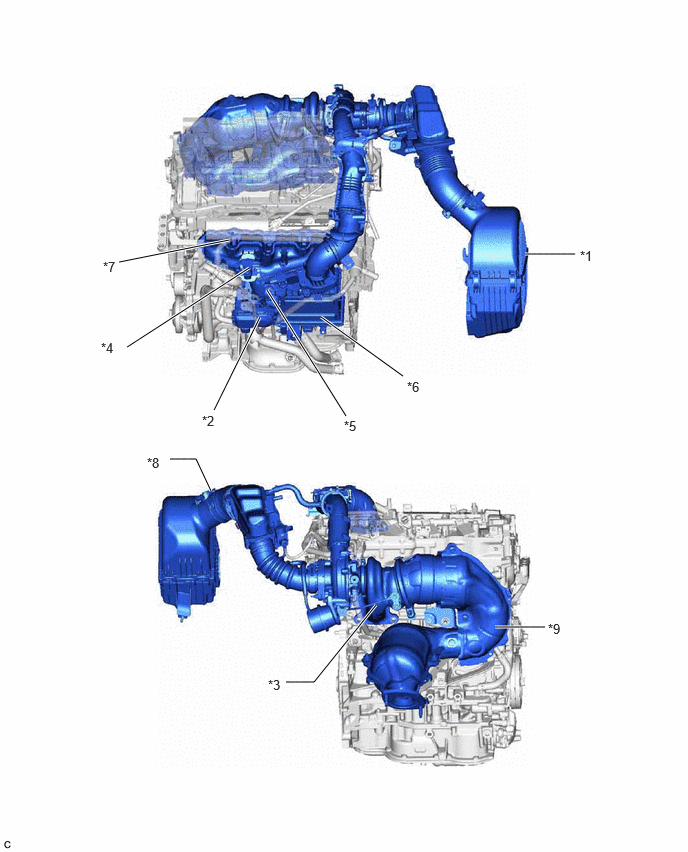

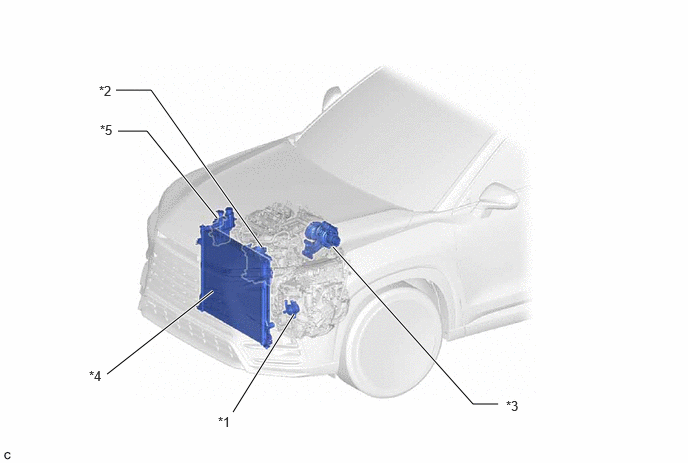

Intake System
| *1 | AIR CLEANER ASSEMBLY | *2 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *3 | TURBOCHARGER SUB-ASSEMBLY | *4 | NO. 1 TURBO PRESSURE SENSOR |
| *5 | NO. 2 TURBO PRESSURE SENSOR | *6 | INTERCOOLER ASSEMBLY |
| *7 | INTAKE MANIFOLD | *8 | MASS AIR FLOW METER SUB-ASSEMBLY |
| *9 | CONVERTER WITH CATALYST ASSEMBLY | - | - |
