DTC U117E-87: Lost Communication with Drive Motor Control Module "A" (ch4) Missing Message [09/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

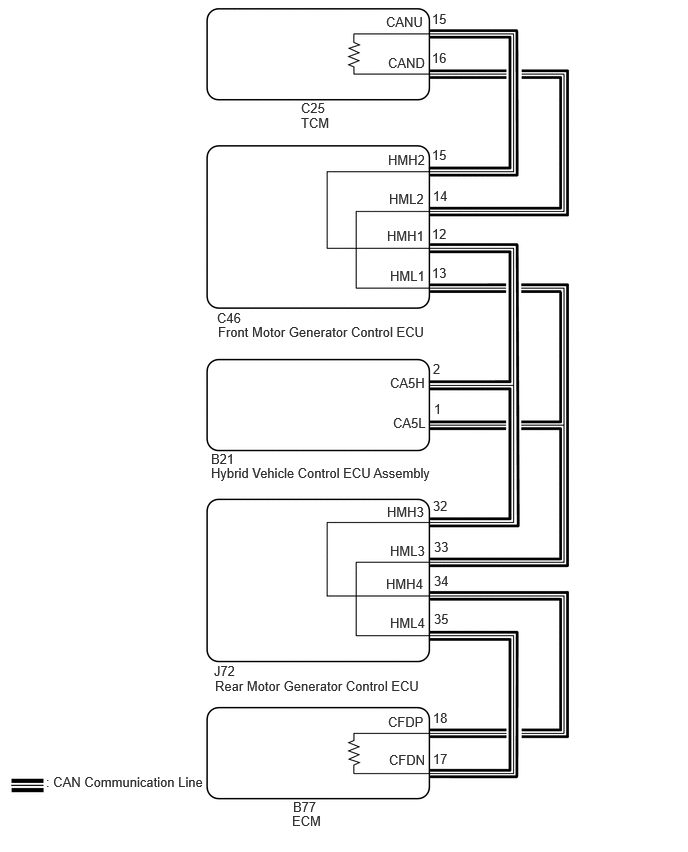

ML-bus circuit

GTY1235612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to ECU Power Source Circuit of the front motor generator control ECU.
