DTC P04F0-9C: Evaporative Emission System High Load Purge Line "A" Performance Low/Insufficient Flow [09/2023 - ]: Procedure

1. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   P04F0-9C and other DTCs are output	A
   P04F0-9C and P0441-9C are output	B
   P04F0-9C is output	C

   HINT:

   If any DTCs other than P04F0-9C are output, troubleshoot those DTCs first.

Result:

A

GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2023 - ]

Result:

B

GO TO DTC P0441-9C. Refer to  DTC P0441-9C: Evaporative Emission System Incorrect Purge Flow Low/Insufficient Flow [09/2023 - ]

Result:

C

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the high load purge line connections.

   OK

   High load purge line is connected correctly.

   Result

   Proceed to
   OK
   NG

Result:

NG

SECURELY RECONNECTION HIGH LOAD PURGE LINE

Result:

OK

See step  3

Pre-procedure1

• Disconnect the vacuum hose from the purge VSV.

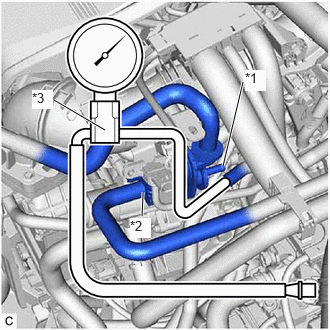

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *1	Purge VSV
  *2	High load purge line (to air cleaner hose assembly)
  *3	Vacuum gauge

• Connect the vacuum gauge to the purge line (to air cleaner hose assembly)
• Put the engine in Inspection Mode (for measuring Exhaust Gas).

  Powertrain > Hybrid Control > Utility

  Tester Display
  Inspection Mode

• Start the engine.

• Perform the "Control the Wastegate Valve Duty Ratio".

  Powertrain > Engine > Active Test

  Tester Display
  Control the Wastegate Valve Duty Ratio

• Operate the Active Test at 30%.
• Check the suction while racing the engine at 2500 rpm.

  OK

  Suction applied.

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None

Result:

NG

See step  5

Result:

OK

See step  4

Refer to INSPECTION [09/2023 - ]

Result

Result:

OK

See step  9

Result:

NG

REPLACE PURGE VSV. Refer to  REMOVAL [09/2023 - ]

1. Check the high load purge line.

   OK

   High load purge line is not clogged and damaged.

   Result

   Proceed to
   OK
   NG

Result:

NG

CLEAN OR REPLACE HIGH LOAD PURGE LINE

Result:

OK

See step  6

Refer to ON-VEHICLE INSPECTION [09/2023 - ]

Result

Result:

NG

CLEAN OR REPLACE AIR CLEANER HOSE ASSEMBLY

Result:

OK

See step  7

1. Check the ejector drive line.

   OK

   Ejector drive line is not clogged and damaged.

   Result

   Proceed to
   OK
   NG

Result:

NG

CLEAN OR REPLACE EJECTOR DRIVE LINE

Result:

OK

See step  8

1. Inspect the air tube assembly.

   OK

   Ejector drive port of the air tube assembly is not clogged and damaged.

   Result

   Proceed to
   OK
   NG

Result:

NG

CLEAN OR REPLACE AIR TUBE ASSEMBLY

Result:

OK

See step  9

1. Check the purge pressure sensor hose.

   OK

   Purge pressure sensor hose is not clogged and damaged.

   Result

   Proceed to
   OK
   NG

Result:

NG

CLEAN OR REPLACE PURGE PRESSURE SENSOR HOSE

Result:

OK

See step  10

Pre-procedure1

• Disconnect the purge pressure sensor connector.
• Disconnect the ECM connector.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  C11-3 (VC) - C26-85 (VCPH)	Always	Below 1 Ω	Ω
  C11-2 (PRG) - C26-62 (PHPG)	Always	Below 1 Ω	Ω
  C11-1 (GND) - C26-63 (EPHP)	Always	Below 1 Ω	Ω
  C11-3 (VC) or C26-85 (VCPH) - Body ground and other terminals	Always	10 kΩ or higher	kΩ
  C11-2 (PRG) or C26-62 (PHPG) - Body ground and other terminals	Always	10 kΩ or higher	kΩ
  C11-1 (GND) or C26-63 (EPHP) - Body ground and other terminals	Always	10 kΩ or higher	kΩ

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  11

HINT:

Refer to REMOVAL [09/2023 - ]

Result

Result:

NEXT

See step  12

Pre-procedure1

• None

• Clear the DTCs.

  Powertrain > Engine > Clear DTCs

  Result

  Proceed to
  NEXT

Post-procedure1

• Turn the ignition switch off and wait for at least 30 seconds.

Result:

NEXT

See step  13

Pre-procedure1

• Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

• Read the DTCs.

  Powertrain > Engine > Trouble Codes

  Result

  Result	Proceed to
  DTCs are not output	A
  P04F0-9C is output	B

Post-procedure1

• None

Result:

A

END

Result:

B

REPLACE ECM. Refer to  REMOVAL [09/2023 - ]
