DTC P0234-00: Turbocharger/Supercharger "A" Overboost Condition [09/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0234-00)
    1. Read the DTCs.

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      P0234-00 and other DTCs are output A
      P0234-00 is output B

      HINT:

      If any DTCs other than P0234-00 are output, troubleshoot those DTCs first.

    Result:

    A

    GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2023 - ]

    Result:

    B

    See step  2

  2. READ VALUE USING GTS (ATMOSPHERIC PRESSURE)
    1. Check the value of Data List item.

      Powertrain > Engine > Data List

      Tester Display
      Atmospheric Pressure
    2. Using the following table, determine the normal atmospheric pressure for the current altitude and temperature.

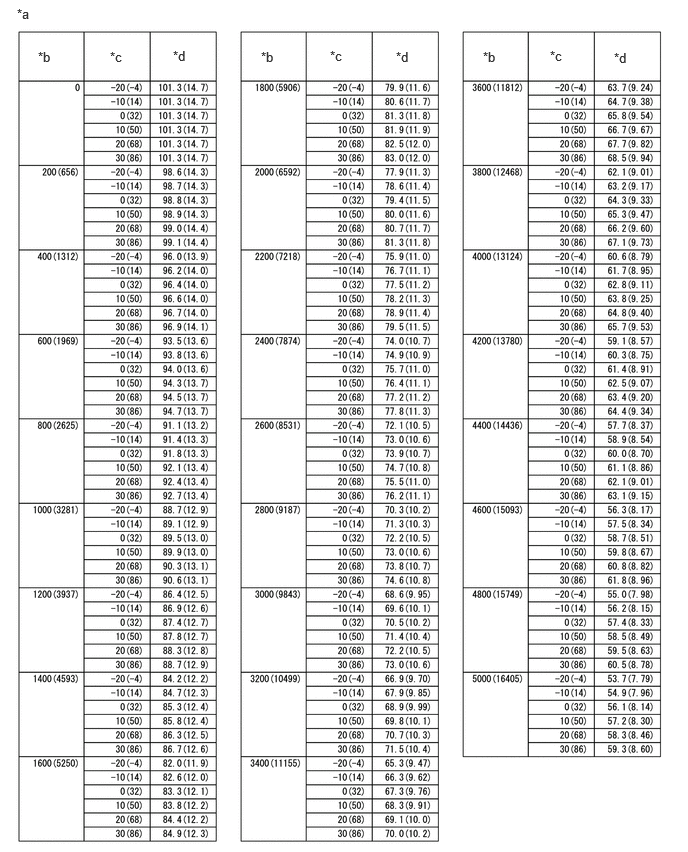

      GTY1003743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Altitude, Temperature and Atmospheric Pressure Correlation Table *b Altitude (m (ft.))
      *c Temperature (°C (°F)) *d Atmospheric Pressure (kPa (psi))

      HINT:

      • Standard atmospheric pressure is approximately 101 kPa(abs) (14.65 psi(abs)).
      • For every 100 m (328 ft.) increase in altitude, atmospheric pressure drops by approximately 1 kPa (0.15 psi). This varies depending on the weather.
    3. Compare the value of Atmospheric Pressure with the normal atmospheric pressure in the table.

      Result

      Result Proceed to
      Other than below A
      Difference between value of Atmospheric Pressure and normal atmospheric pressure is 10 kPa (1.45 psi) or higher B

    Result:

    B

    REPLACE ECM. Refer to  REMOVAL [09/2023 - ]

    Result:

    A

    See step  3

  3. READ VALUE USING GTS (INTAKE AIR TEMPERATURE)
    1. According to the display on the GTS, read the Data List.

      Powertrain > Engine > Data List

      Tester Display
      Intake Air Temperature

      Result

      Result Proceed to
      Difference between value of Intake Air Temperature and actual ambient air temperature is 10°C (18°F) or higher A
      Other than above B

    Result:

    B

    See step  16

    Result:

    A

    See step  4

  4. INSPECT MASS AIR FLOW METER SUB-ASSEMBLY
    1. Inspect the mass air flow meter sub-assembly, referring to On-vehicle Inspection for Mass Air Flow Meter.

      Refer to ON-VEHICLE INSPECTION [09/2023 - ]

    2. Inspect the mass air flow meter sub-assembly, referring to Inspection for Mass Air Flow Meter.

      Refer to INSPECTION [09/2023 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  5

  5. INSPECT NO. 2 TURBO PRESSURE SENSOR

    Refer to ON-VEHICLE INSPECTION [09/2023 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  6

  6. INSPECT TURBOCHARGER SUB-ASSEMBLY (WASTE GATE VALVE)
    1. Inspect the waste gate valve.

      Refer to INSPECTION [09/2023 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE TURBOCHARGER SUB-ASSEMBLY. Refer to  REMOVAL [09/2023 - ]

    Result:

    OK

    See step  7

  7. INSPECT VACUUM REGULATING VALVE ASSEMBLY

    Refer to INSPECTION [09/2023 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE VACUUM REGULATING VALVE ASSEMBLY. Refer to  REMOVAL [09/2023 - ]

    Result:

    OK

    See step  8

  8. INSPECT TURBOCHARGER SUB-ASSEMBLY (WASTE GATE VALVE ACTUATOR)
    1. Inspect the waste gate valve actuator.

      Refer to ON-VEHICLE INSPECTION [09/2023 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE TURBOCHARGER SUB-ASSEMBLY. Refer to  REMOVAL [09/2023 - ]

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (VACUUM REGULATING VALVE ASSEMBLY - ECM)

    Pre-procedure1

    • Disconnect the vacuum regulating valve assembly connector.
    • Disconnect the ECM connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C40-1 (+) - C26-20 (WGV+) Always Below 1 Ω Ω
      C40-2 (-) - C26-21 (WGV-) Always Below 1 Ω Ω
      C40-1 (+) or C26-20 (WGV+) - Body ground and other terminals Always 10 kΩ or higher kΩ
      C40-2 (-) or C26-21 (WGV-) - Body ground and other terminals Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CLEAR DTC

    Pre-procedure1

    • None
    • Clear the DTCs.

      Powertrain > Engine > Clear DTCs

      Result

      Proceed to
      NEXT

    Post-procedure1

    • Turn the ignition switch off and wait for at least 30 seconds.

    Result:

    NEXT

    See step  11

  11. CHECK WHETHER DTC OUTPUT RECURS (DTC P0234-00)

    Pre-procedure1

    • Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
    • Perform the All Readiness.

      Powertrain > Engine > Utility

      Tester Display
      All Readiness
    • Input the DTC: P0234-00.
    • Check the DTC judgment result.

      Result

      Result Proceed to
      NORMAL
      (DTCs are not output)      		 A
      ABNORMAL
      (P0234-00 is output)      		 B

    Post-procedure1

    • None

    Result:

    A

    END

    Result:

    B

    REPLACE ECM. Refer to  REMOVAL [09/2023 - ]

  12. CHECK HARNESS AND CONNECTOR

    Pre-procedure1

    • Disconnect the No. 2 turbo pressure sensor connector.
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      C42-3 (VC) - C42-2 (E2) Ignition switch ON 4.5 to 5.5 V V
      C42-1 (PTA) - C42-2 (E2) Ignition switch ON 3.0 to 5.5 V V

    Post-procedure1

    • Turn the ignition switch off and wait for at least 30 seconds.

    Pre-procedure2

    • None
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C42-3 (VC) - C42-1 (PTA) Ignition switch off 171 to 189 kΩ kΩ
      C42-2 (E2) - Body ground Always Below 1 Ω Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure2

    • None

    Result:

    OK

    REPLACE NO. 2 TURBO PRESSURE SENSOR. Refer to  REMOVAL [09/2023 - ]

    Result:

    NG

    See step  13

  13. CHECK HARNESS AND CONNECTOR (NO. 2 TURBO PRESSURE SENSOR - ECM)

    Pre-procedure1

    • Disconnect the No. 2 turbo pressure sensor connector.
    • Disconnect the ECM connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C42-3 (VC) - C26-102 (VPTA) Always Below 1 Ω Ω
      C42-2 (E2) - C26-125 (EPTA) Always Below 1 Ω Ω
      C42-1 (PTA) - C26-126 (PTA) Always Below 1 Ω Ω
      C42-3 (VC) or C26-102 (VPTA) - Body ground and other terminals Always 10 kΩ or higher kΩ
      C42-1 (PTA) or C26-126 (PTA) - Body ground and other terminals Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [09/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  14. CHECK HARNESS AND CONNECTOR

    Pre-procedure1

    • Disconnect the mass air flow meter sub-assembly connector.
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      C13-3 (VCC) - C13-2 (E2G) Ignition switch ON 4.8 to 5.2 V V
      C13-1 (FG) - C13-2 (E2G) Ignition switch ON 4.8 to 5.2 V V

    Post-procedure1

    • Turn the ignition switch off and wait for at least 30 seconds.

    Pre-procedure2

    • None
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C13-3 (VCC) - C13-1 (FG) Ignition switch off 2.09 to 2.31 kΩ kΩ
      C13-2 (E2G) - Body ground Always Below 1 Ω Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure2

    • None

    Result:

    OK

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [09/2023 - ]

    Result:

    NG

    See step  15

  15. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)

    Pre-procedure1

    • Disconnect the mass air flow meter sub-assembly connector.
    • Disconnect the ECM connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C13-3 (VCC) - C26-73 (VCVG) Always Below 1 Ω Ω
      C13-1 (FG) - C26-75 (VG) Always Below 1 Ω Ω
      C13-2 (E2G) - C26-74 (E2G) Always Below 1 Ω Ω
      C13-3 (VCC) or C26-73 (VCVG) - Body ground and other terminals Always 10 kΩ or higher kΩ
      C13-1 (FG) or C26-75 (VG) - Body ground and other terminals Always 10 kΩ or higher kΩ
      C13-2 (E2G) or C26-74 (E2G) - Body ground and other terminals Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [09/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  16. INSPECT MASS AIR FLOW METER SUB-ASSEMBLY (INTAKE AIR TEMPERATURE SENSOR)

    Refer to INSPECTION [09/2023 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [09/2023 - ]

    Result:

    OK

    See step  17

  17. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)

    Pre-procedure1

    • Disconnect the mass air flow meter sub-assembly connector.
    • Disconnect the ECM connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C13-4 (THA) - C26-76 (THA) Always Below 1 Ω Ω
      C13-2 (E2G) - C26-74 (E2G) Always Below 1 Ω Ω
      C13-4 (THA) or C26-76 (THA) - Body ground and other terminals Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [09/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
