Removal [09/2023 - ]: Procedure

  1. DRAIN COOLANT (for Inter cooler)

    Refer to PROCEDURE - Step 4

  2. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to REMOVAL [09/2023 - ]

  3. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2WD)
    See step  2
  4. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  5. REMOVE COWL VENTILATOR PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 4 [12/2023 - ]

  6. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 25
  7. REMOVE NO. 3 ENGINE COVER

    Refer to PROCEDURE - Step 26

  8. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY

    See step  5

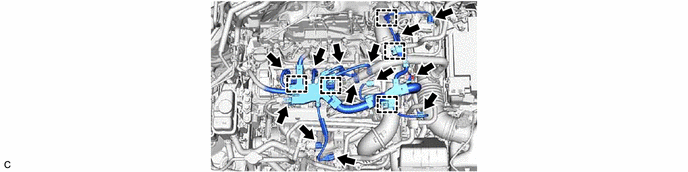

  9. DISCONNECT ENGINE WIRE
    1. GTY1241239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

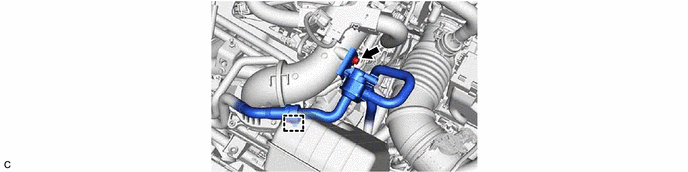

  10. DISCONNECT PURGE VALVE (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY)
    1. GTY1237952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

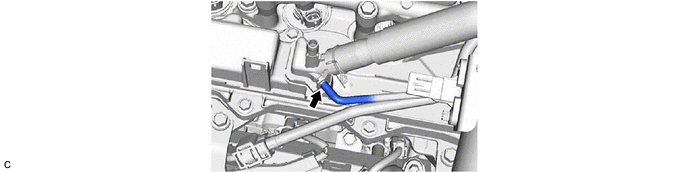

  11. DISCONNECT NO. 1 VENTILATION PRESSURE SENSOR HOSE
    1. GTY1237951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE AIR TUBE ASSEMBLY
    See step  9

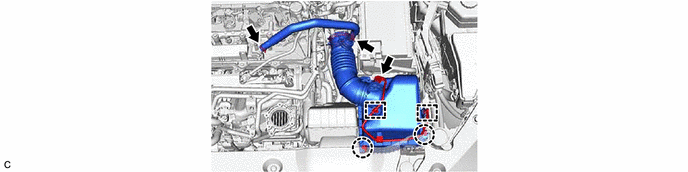

  13. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
    1. GTY1241204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

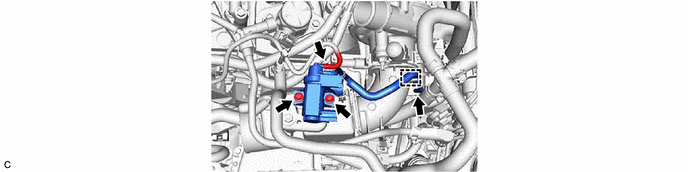

  14. REMOVE VACUUM REGULATING VALVE ASSEMBLY
    1. GTY1237950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

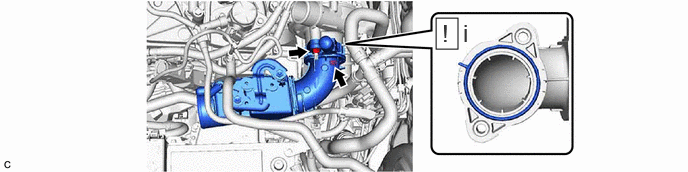

  15. REMOVE COMPRESSOR INLET ELBOW SUB-ASSEMBLY
    1. GTY1232382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the throttle body gasket from the compressor inlet elbow sub-assembly.

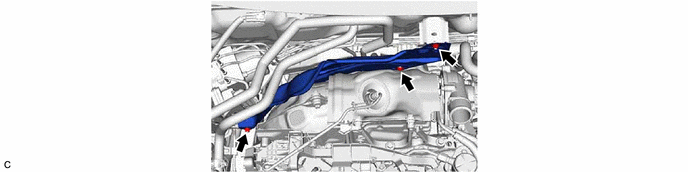

  16. REMOVE DASH PANEL HEAT INSULATOR
    1. GTY1237953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE AIR FUEL RATIO SENSOR (for Sensor 1)
    Refer to PROCEDURE - Step 6

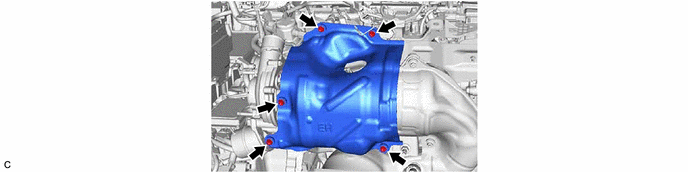

  18. REMOVE NO. 1 TURBO INSULATOR
    1. GTY1241205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

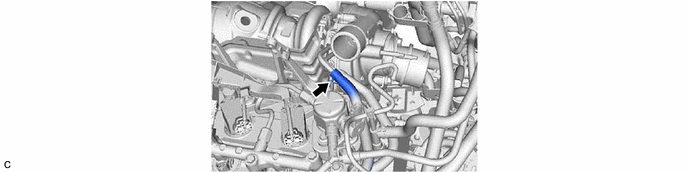

  19. DISCONNECT NO. 3 TURBO WATER HOSE
    1. GTY1237958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

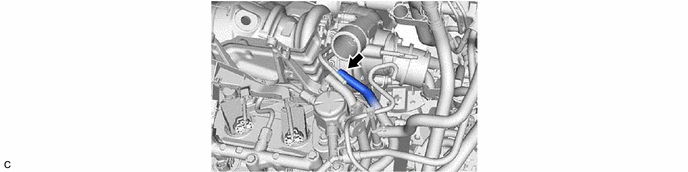

  20. DISCONNECT NO. 2 TURBO WATER HOSE
    1. GTY1237957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

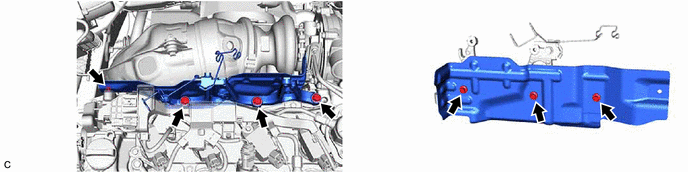

  21. REMOVE NO. 1 HEAT INSULATOR BRACKET
    1. GTY1237956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

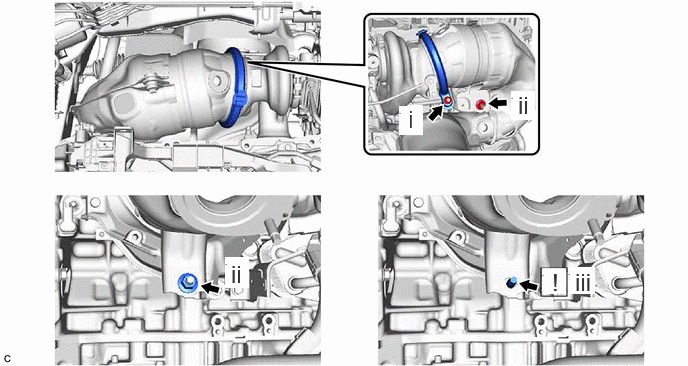

  22. SEPARATE CONVERTER WITH CATALYST ASSEMBLY
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.
    1. GTY1233649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and disconnect the exhaust pipe clamp.
      2. Remove the 2 nuts and disconnect the converter with catalyst assembly.
      3. Using an E10 "TORX" socket wrench, remove the stud bolts from the manifold stay.
  23. REMOVE EXHAUST PIPE CLAMP
    1. GTY1132958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

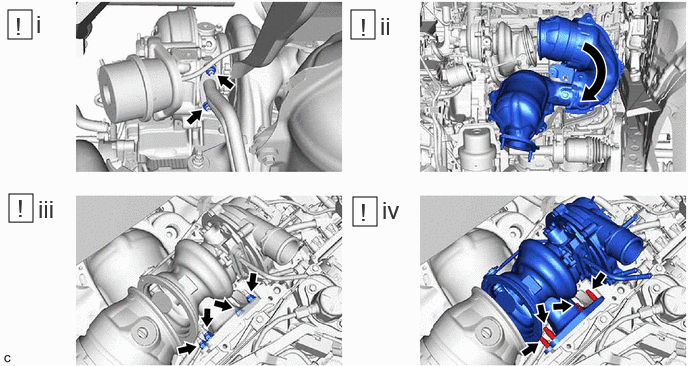

  24. REMOVE TURBOCHARGER SUB-ASSEMBLY
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.
    1. GTY1236115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 nuts from the bottom of the vehicle and disconnect the No. 1 turbo oil pipe from the turbocharger sub-assembly.
      2. Rotate the converter with catalyst assembly in vehicle outer side to secure removal space.
      3. Remove the 4 nuts.
      4. Using an E10 "TORX" socket wrench, remove the 4 stud bolts from the cylinder head sub-assembly.
  25. REMOVE TURBINE OUTLET ELBOW GASKET
    1. GTY1078089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    1. GTY1078173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
