Removal [09/2023 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 7

  2. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 4

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 25
  4. REMOVE NO. 3 ENGINE COVER

    Refer to PROCEDURE - Step 26

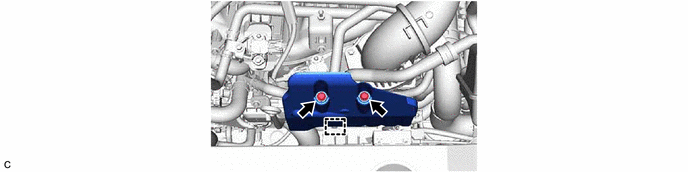

  5. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY
    1. GTY1238132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  13

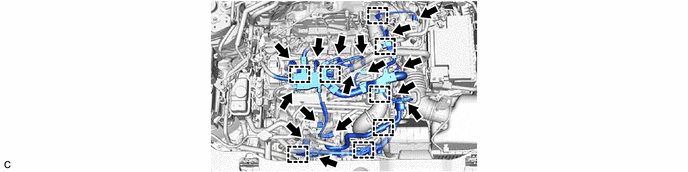

  7. DISCONNECT ENGINE WIRE
    1. GTY1241243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT PURGE VALVE (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY)

    See step  10

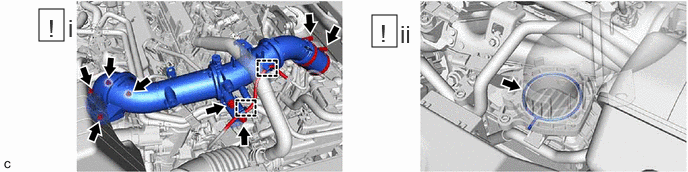

  9. REMOVE AIR TUBE ASSEMBLY
    1. GTY1228371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 4 bolts and air tube assembly from the intercooler assembly.
      2. Remove the air tube gasket from the intercooler assembly.

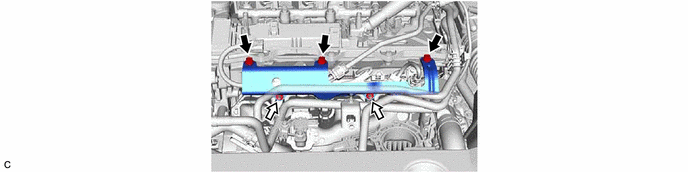

  10. REMOVE FUEL DELIVERY GUARD
    1. GTY1238121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

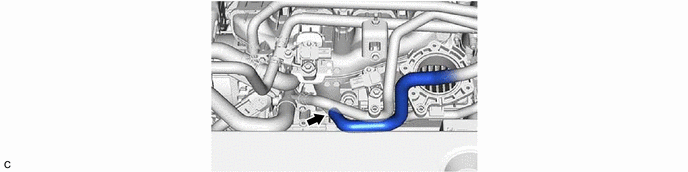

  11. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. GTY1238120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

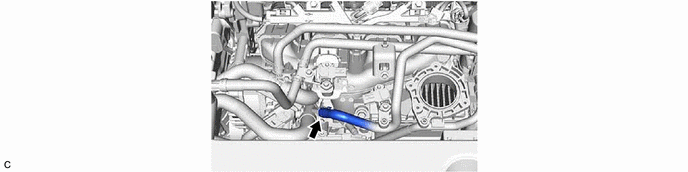

  12. DISCONNECT NO. 1 TURBO WATER HOSE
    1. GTY1238119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

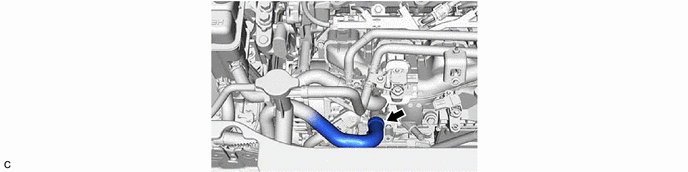

  13. DISCONNECT NO. 1 INTERCOOLER COOLING WATER HOSE
    1. GTY1238125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

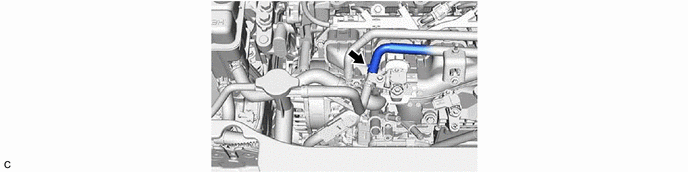

  14. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. GTY1238124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

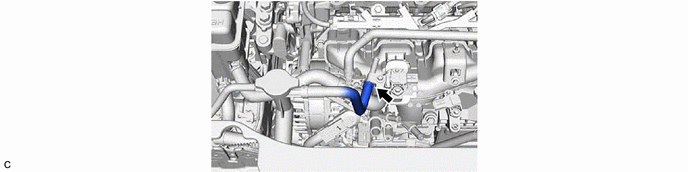

  15. DISCONNECT NO. 5 WATER BY-PASS HOSE (Type A)
    1. GTY1238123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

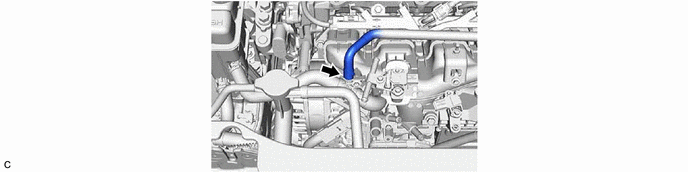

  16. DISCONNECT NO. 4 TURBO WATER HOSE
    1. GTY1241241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

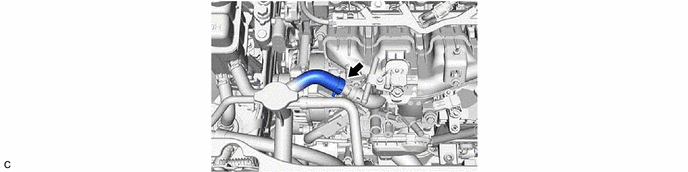

  17. DISCONNECT NO. 2 INTERCOOLER COOLING WATER HOSE
    1. GTY1238131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

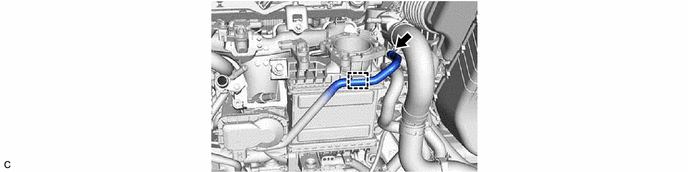

  18. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1238130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

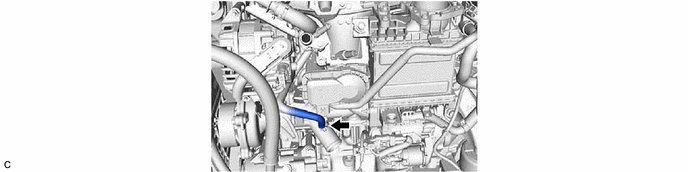

  19. DISCONNECT NO. 5 WATER BY-PASS HOSE (Type B)
    1. GTY1241242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    Refer to PROCEDURE - Step 13

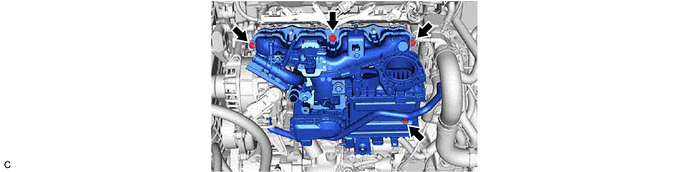

  21. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY
    1. GTY1241238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 7 INTERCOOLER COOLING WATER HOSE
    1. GTY1130440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1130445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NO. 6 INTERCOOLER COOLING WATER HOSE
    1. GTY1130444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1130443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INTERCOOLER ASSEMBLY
    1. GTY1078588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 nuts and bolts to separate the intercooler assembly from the intake manifold and No. 2 air tube.
      2. Using an 8 mm socket wrench, remove the bolt and No. 2 turbo pressure sensor from the intercooler assembly.
      3. Remove the No. 2 air tube gasket from the intercooler assembly.
      4. Remove the No. 1 intake manifold to head gasket from the intake manifold.
