Removal [09/2023 - ]: Procedure

  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
    1. GTY1228933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1228927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

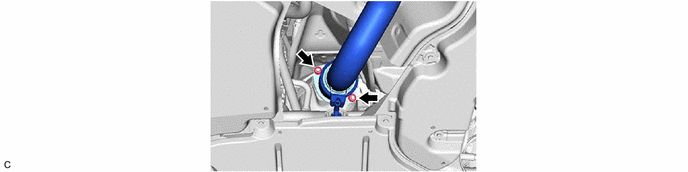

    1. GTY1228928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1228925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
