Installation [09/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

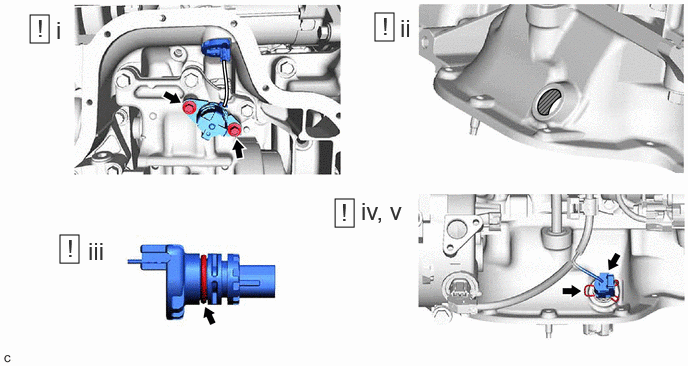

   1. Using an 8 mm socket wrench, install the engine oil level sensor to the engine balancer assembly with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   2. Remove any dirt or foreign matter from the engine oil level sensor connector installation hole.
   3. Apply a light coat of engine oil to the O-ring of the engine oil level sensor.
   4. Install a new clip to the engine oil level sensor.
   5. Connect the engine oil level sensor connector.
      NOTE:

      If there is any engine oil on the connector, clean the connector using a cloth or similar.

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 6

For 1Motor-HEV Model:

Refer to PROCEDURE - Step 1

For Gasoline Model:

Refer to PROCEDURE - Step 1

Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
