Installation [09/2023 - ]: Procedure

  1. INSTALL LOWER RADIATOR SUPPORT
  2. INSTALL RADIATOR SUPPORT CUSHION
  3. INSTALL FILLER NECK
    1. GTY1203308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer - -
      Push Push in
      1. Align the filler neck with the radiator assembly, push the filler neck onto the radiator assembly, then push in the retainer to secure the connection.
        NOTE:

        Confirm that the retainer makes a "click" sound when pushed.

      2. Check that the radiator assembly and filler neck are securely connected by pulling on them.
  4. INSTALL RADIATOR ASSEMBLY

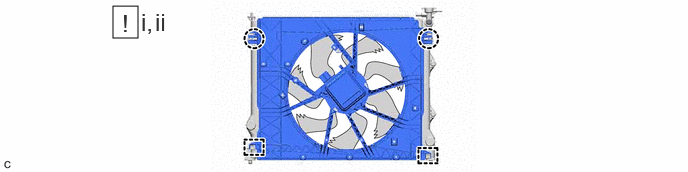

    1. GTY1196659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 guides.
      2. Engage the 2 claws to install the fan with motor assembly to the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when installing the fan with motor assembly.

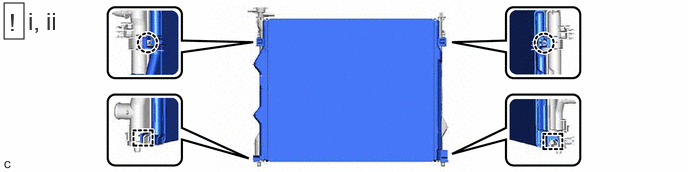

    2. GTY1197398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 guides.
      2. Engage the 2 claws to install the intercooler cooling radiator assembly to the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when installing the intercooler cooling radiator assembly.

    3. GTY1197379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the intercooler cooling radiator assembly and radiator assembly with the fan with motor assembly to the vehicle body.
        NOTE:

        Do not apply excessive force to the cooler condenser assembly or pipe when installing the intercooler cooling radiator assembly and radiator assembly with the fan with motor assembly.

      2. Engage the 2 guides.
      3. Engage the 2 claws to install the cooler condenser assembly to the intercooler cooling radiator assembly.
        NOTE:

        Do not damage the cooler condenser assembly when installing the intercooler cooling radiator assembly.

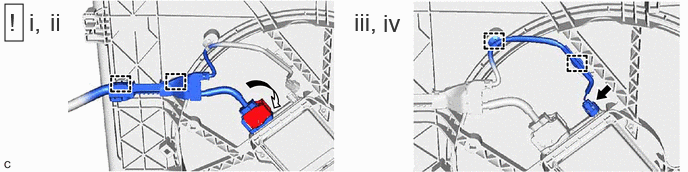

    4. GTY1195221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the cooling fan motor connector and rotate the lever to lock it.
        NOTE:
        • When connecting the cooling fan motor connector, make sure that the connecting parts of the cooling fan motor connector are free of dirt, water or other foreign matter.
        • Be sure to securely connect the cooling fan motor connector.
      2. Engage the 2 clamps to connect the wire harness to the fan with motor assembly.
      3. Connect the cooling fan motor connector.
      4. Engage the 2 clamps to connect the wire harness to the fan with motor assembly.
  5. CONNECT NO. 2 RADIATOR HOSE

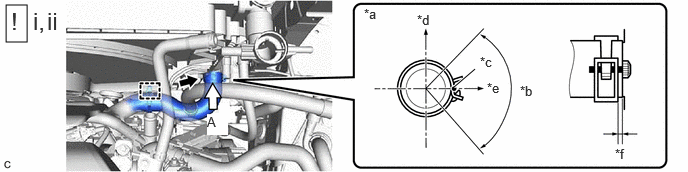

    1. GTY1195660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 2 radiator hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 2 radiator hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
      2. Engage the clamp to connect the No. 2 radiator hose to the fan with motor assembly.
  6. CONNECT OUTLET NO. 2 INVERTER COOLING HOSE (for 1Motor-HEV Model)

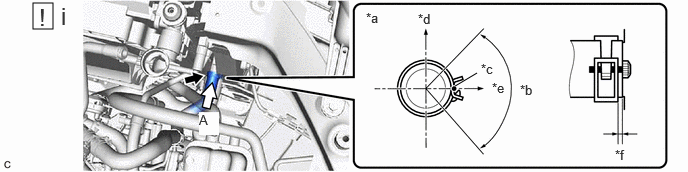

    1. GTY1194301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 7 mm (0.0787 to 0.276 in.)
      1. Connect the outlet No. 2 inverter cooling hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the outlet No. 2 inverter cooling hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  7. CONNECT NO. 1 INTERCOOLER COOLING WATER HOSE ASSEMBLY (for Gasoline Model)

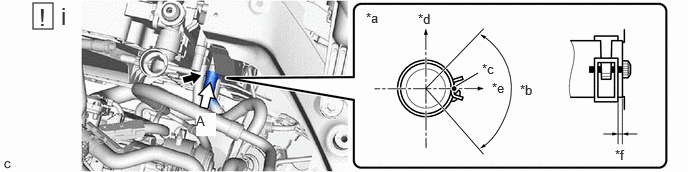

    1. GTY1203268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 7 mm (0.0787 to 0.276 in.)
      1. Connect the No. 1 intercooler cooling water hose assembly to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 intercooler cooling water hose assembly until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  8. CONNECT NO. 1 INVERTER COOLING HOSE (for 1Motor-HEV Model)

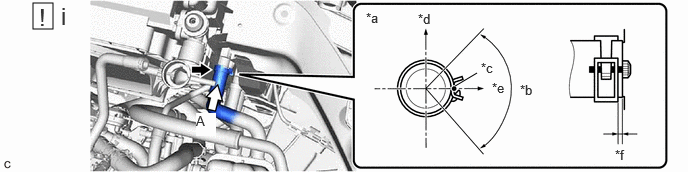

    1. GTY1201701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 7 mm (0.0787 to 0.276 in.)
      1. Connect theNo. 1 inverter cooling hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 inverter cooling hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  9. CONNECT NO. 1 INTERCOOLER COOLING WATER HOSE (for Gasoline Model)

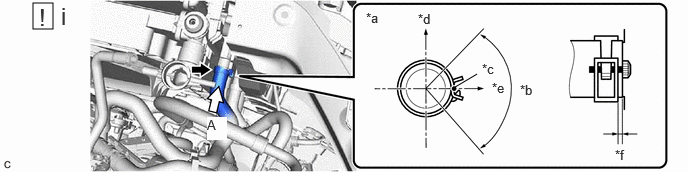

    1. GTY1201536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 7 mm (0.0787 to 0.276 in.)
      1. Connect the No. 1 intercooler cooling water hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 intercooler cooling water hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  10. CONNECT NO. 1 RADIATOR HOSE (for 1Motor-HEV Model)

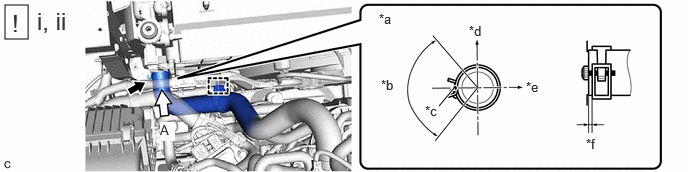

    1. GTY1199228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 1 radiator hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 radiator hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
      2. Engage the clamp to connect the No. 1 radiator hose to the fan with motor assembly.
  11. CONNECT RADIATOR HOSE SUB-ASSEMBLY (for Gasoline Model)

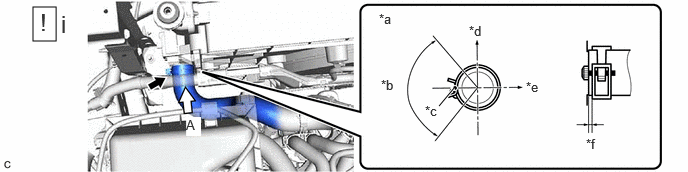

    1. GTY1196313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the radiator hose sub-assembly to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the radiator hose sub-assembly until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  12. CONNECT NO. 6 WATER BY-PASS HOSE
  13. CONNECT NO. 5 WATER BY-PASS HOSE

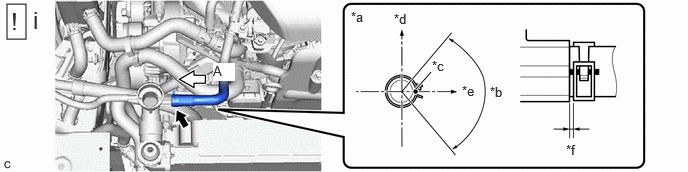

    1. GTY1195804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Rear Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 5 water by-pass hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 5 water by-pass hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  14. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

  15. INSTALL NO. 1 RADIATOR AIR GUIDE RH
  16. INSTALL NO. 1 RADIATOR AIR GUIDE LH
  17. INSTALL THERMISTOR ASSEMBLY

    Refer to INSTALLATION [09/2023 - 12/2023] , or refer to INSTALLATION [12/2023 - ]

  18. INSTALL HOOD LOCK ASSEMBLY
    Refer to PROCEDURE - Step 3
  19. INSTALL HOOD LOCK ASSEMBLY LH
    Refer to PROCEDURE - Step 4
  20. INSTALL HOOD LOCK CONTROL JUNCTION ASSEMBLY

    Refer to PROCEDURE - Step 5

  21. CONNECT HOOD LOCK CONTROL CABLE ASSEMBLY
  22. INSTALL HOOD LOCK CONTROL COVER

    Refer to PROCEDURE - Step 7

  23. INSTALL HOOD SPRING ASSEMBLY
  24. INSTALL INLET AIR CLEANER ASSEMBLY
  25. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    For Sport Package: Refer to PROCEDURE - Step 9

    Except Sport Package: Refer to PROCEDURE - Step 9 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 10 [12/2023 - ]

  26. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH (for Sport Package)

    Refer to PROCEDURE - Step 13

  27. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH (for Sport Package)

    Refer to PROCEDURE - Step 12

  28. INSTALL FRONT BUMPER ENERGY ABSORBER
  29. INSTALL FRONT BUMPER ASSEMBLY

    For Sport Package: Refer to INSTALLATION [09/2023 - ]

    Except Sport Package: Refer to INSTALLATION [09/2023 - ]

  30. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 6

  31. ADD COOLANT (for Intercooler)

    For Gasoline Model: Refer to PROCEDURE - Step 5

    For 1Motor-HEV Model: Refer to PROCEDURE - Step 5

  32. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 1

  33. INSPECT FOR COOLANT LEAK (for Intercooler)

    For 1Motor-HEV Model: Refer to PROCEDURE - Step 1

    For Gasoline Model: Refer to PROCEDURE - Step 1

  34. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [09/2023 - ]

  35. INSTALL SUSPENSION TOWER DAMPER (w/ Suspension Tower Damper)
    Refer to PROCEDURE - Step 1 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 1 [12/2023 - ]
  36. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    For 1Motor-HEV Model: Refer to PROCEDURE - Step 81

    For Gasoline Model: Refer to PROCEDURE - Step 90

  37. INSTALL NO. 1 ENGINE UNDER COVER

    For 1Motor-HEV Model: Refer to PROCEDURE - Step 82

    For Gasoline Model: Refer to PROCEDURE - Step 91

  38. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
  39. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
