Installation [09/2023 - ]: Procedure

INSTALL GENERATOR ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

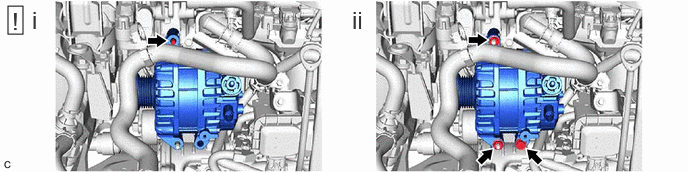

Using an E8 "TORX" socket wrench, temporarily install the generator assembly with the stud bolt.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
Install the generator assembly with the bolt and 2 nuts.
Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

CONNECT ENGINE WIRE
Bolt

Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Nut

Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
INSTALL INTERCOOLER RESERVE TANK ASSEMBLY
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
CONNECT NO. 3 INTERCOOLER COOLING WATER HOSE
CONNECT NO. 2 INTERCOOLER COOLING WATER HOSE
INSTALL V-RIBBED BELT
Refer to INSTALLATION [09/2023 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 5
ADD COOLANT (for Intercooler)
Refer to PROCEDURE - Step 5
INSPECT FOR COOLANT LEAK (for Intercooler)
Refer to PROCEDURE - Step 1
INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 91
INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
Refer to WORK PROCEDURE [09/2023 - ]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [09/2023 - ]
