Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

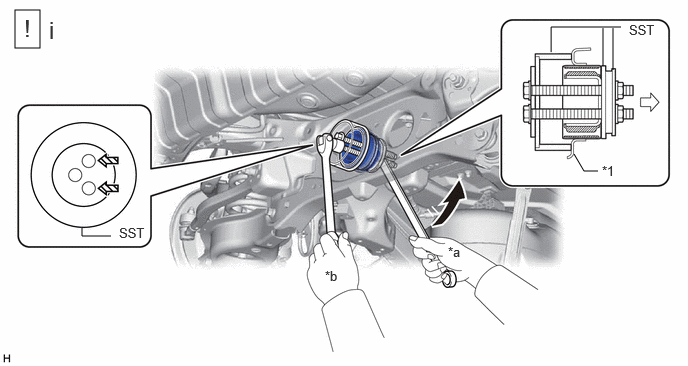

   *1	Rear Suspension Member Sub-assembly	-	-
   *a	Turn	*b	Hold
   	Turning Direction		Front of Vehicle
   	SST Bolt Position	-	-

   1. Using SST, remove the rear No. 1 differential mount cushion.
      • SST: 09316-12010
      • SST: 09570-24011
      NOTE:

      • Do not bring SST into contact with the rear suspension member sub-assembly.
      • Before using SST, apply grease to SST bolt.
      • Set SST in the correct direction.
      • Do not tilt the bolt of SST.
      • Do not reuse the rear No. 1 differential mount cushion.
