Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT FENDER MUDGUARD

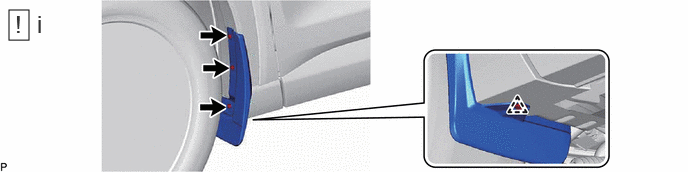

    1. GTY1229774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 4 mm hexagon socket wrench, remove the 3 hexagon screws.
      2. Remove the clip and front fender mudguard.
  2. REMOVE QUARTER PANEL REAR MUDGUARD

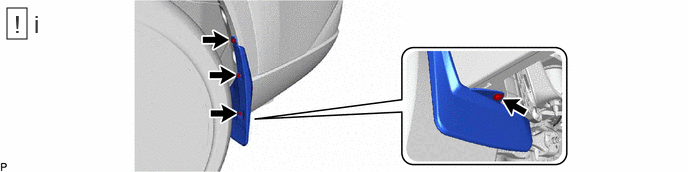

    1. GTY1239474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 4 mm hexagon socket wrench, remove the 3 hexagon screws.
      2. Remove the screw and quarter panel rear mudguard.
