Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear bumper assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly | Parking Support Brake System* | Refer to INITIALIZATION [09/2023 - ] |
*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.
- After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
- When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. Refer to PRECAUTION [09/2023 - ] Lighting System (w/ Automatic Headlight Beam Level Control System) Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [09/2023 - ] Front Camera System Adaptive High Beam System LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLYEffect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Back Door System Reset back door close position Refer to INITIALIZATION [09/2023 - ] Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. - - w/ Parking Support Brake System:
When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.
Refer to CALIBRATION [09/2023 - ]
- If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (frame, stud bolt) to make sure it is not dented or bent.
- If a problem is found during the visual inspection, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.
for Target Adjustment (Triangle Target): Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [09/2023 - ]
for Driving Adjustment: Refer to DRIVING ADJUSTMENT [12/2023 - ]

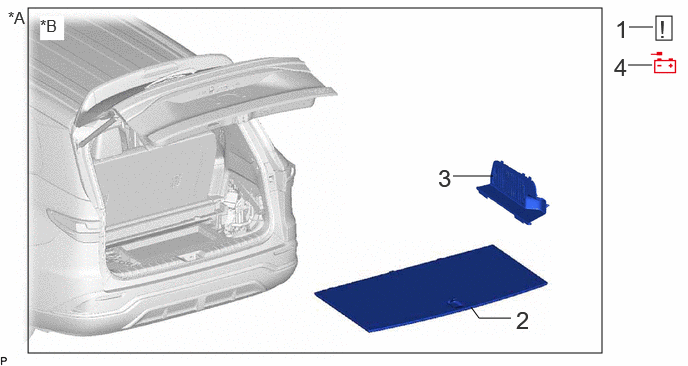

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 3 | BATTERY SERVICE HOLE COVER | 58441L | - | - | - |
| 4 | CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| *A | w/ Kick Sensor | *B | except Gasoline Model |

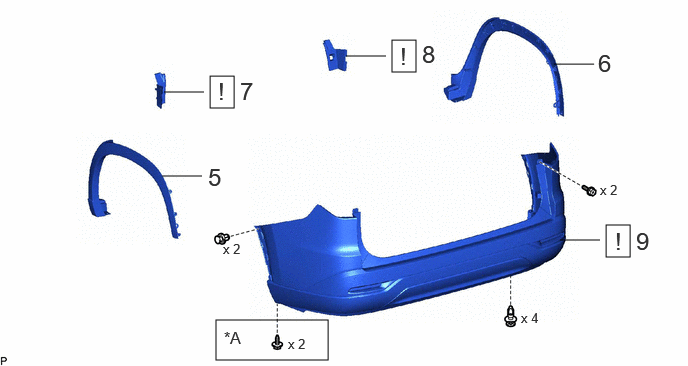

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | QUARTER PANEL WHEEL OPENING MOULDING LH | 75874 | - | - | - |
| 6 | QUARTER PANEL WHEEL OPENING MOULDING RH | 75873 | - | - | - |
| 7 | REAR COMBINATION LIGHT COVER LH | 81498 | See step 7 | - | - |
| 8 | REAR COMBINATION LIGHT COVER RH | 81497 | See step 8 | - | - |
| 9 | REAR BUMPER ASSEMBLY | - | See step 9 | - | - |
| *A | w/o Mudguard | - | - |
