Removal [09/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 1

1. Use the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push		Place Hand Here
   	Remove in this Direction (1)		Remove in this Direction (2)

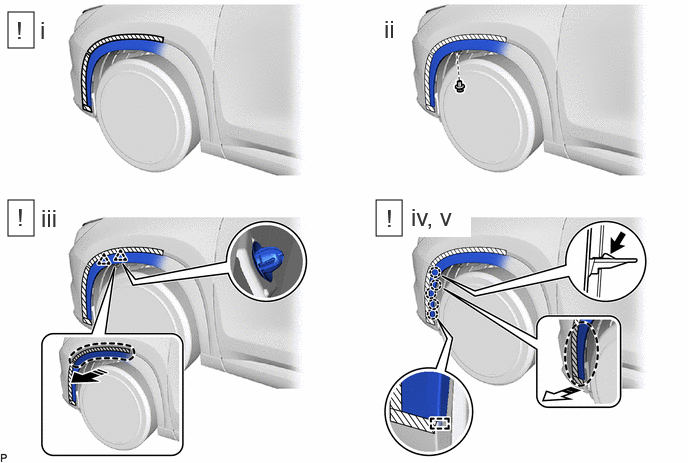

   1. Apply protective tape around the front fender wheel opening moulding sub-assembly LH as shown in the illustration.
   2. Remove the clip.
   3. Disengage the 2 clips as shown in the illustration.
   4. Disengage the 5 claws by pushing the area indicated by the arrow in the illustration with a finger.
      NOTE:

      To avoid damaging the claws, do not forcibly pull the front fender wheel opening moulding sub-assembly LH.

   5. Disengage the guide and disconnect the front fender wheel opening moulding sub-assembly LH.

1. Use the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

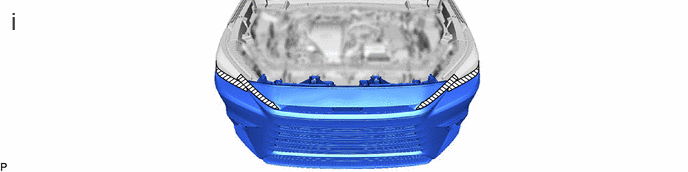

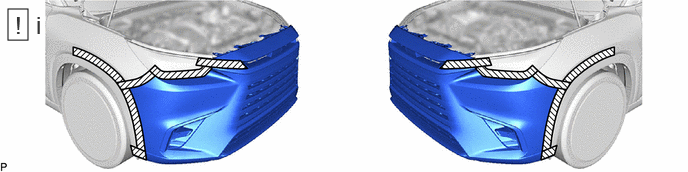

   1. Apply protective tape around the front bumper assembly as shown in the illustration.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

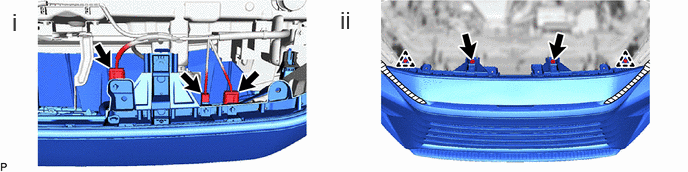

   1. Disconnect each connector.

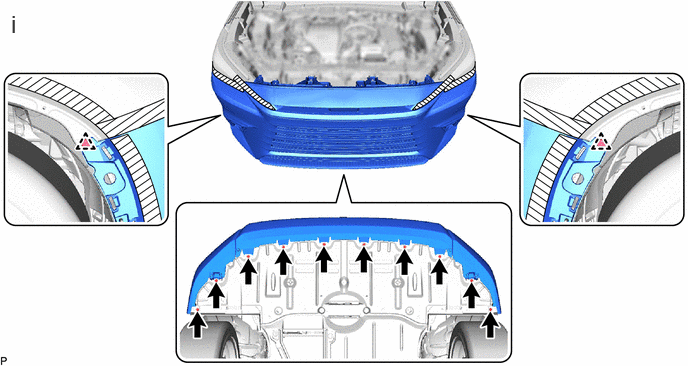

   2. Remove the 2 bolts and 2 clips.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

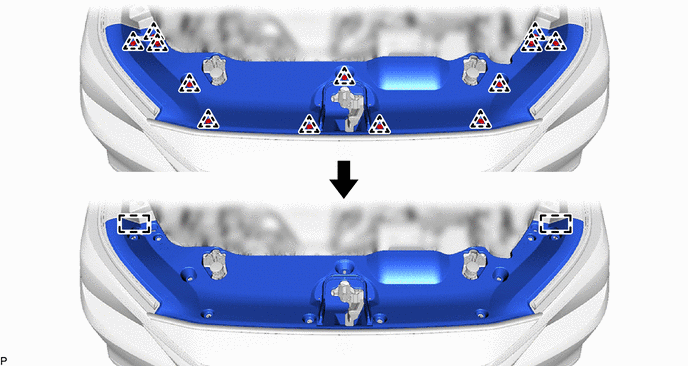

   1. Remove the 2 clips and 10 screws.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction (1)

   Remove in this Direction (2)

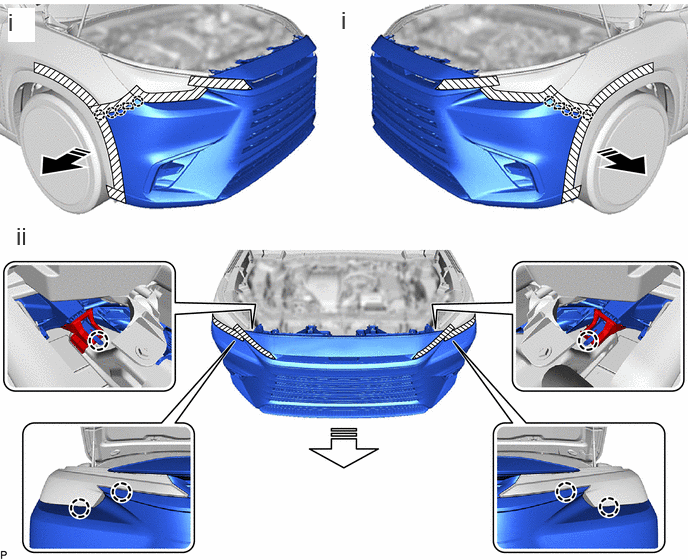

   1. Disengage the 8 claws and 2 guides as shown in the illustration.
   2. Disengage the 6 claws to disconnect the front bumper assembly as shown in the illustration.
5. w/ Headlight Cleaner System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

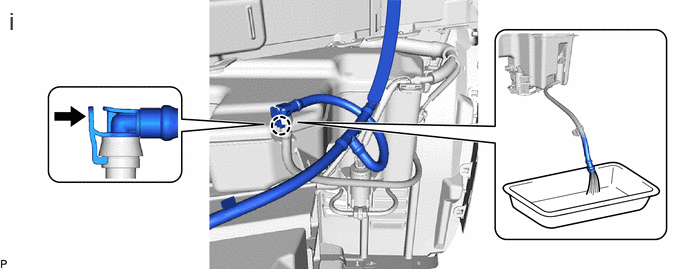

   1. Disconnect the washer hose and drain the washer fluid as shown in the illustration.

      HINT:

      Use a container to collect the washer fluid.

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the front bumper assembly.
