Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front bumper assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Front bumper assembly* Radiator grille*	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
Front bumper assembly* Radiator grille*	Front television camera view adjustment	Advanced Park	Refer to CALIBRATION [09/2023 - ]
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

HINT:

w/ Parking Support Brake System:
When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.

Refer to CALIBRATION [09/2023 - ]
w/ Front Side Radar:
If the headlight assembly is damaged or deformed due to an accident, contact, etc., and repairs have been made to the area of the body to which the headlight assembly is installed, it is necessary to perform front side radar sensor adjustment.

for Target Adjustment (Triangle Target): Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [09/2023 - ]

for Driving Adjustment: Refer to DRIVING ADJUSTMENT [09/2023 - 12/2023] , or refer to DRIVING ADJUSTMENT [12/2023 - ]
When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.
for TARGET ADJUSTMENT (TRIANGLE TARGET): Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [09/2023 - 12/2023] , or refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [12/2023 - ]

for TARGET ADJUSTMENT (FLAT SURFACE TARGET): Refer to TARGET ADJUSTMENT (FLAT SURFACE TARGET) [09/2023 - 12/2023] , or refer to TARGET ADJUSTMENT (FLAT SURFACE TARGET) [12/2023 - ]

for DRIVING ADJUSTMENT: Refer to DRIVING ADJUSTMENT [09/2023 - 12/2023] , or refer to DRIVING ADJUSTMENT [12/2023 - ]

COMPONENTS (REMOVAL)

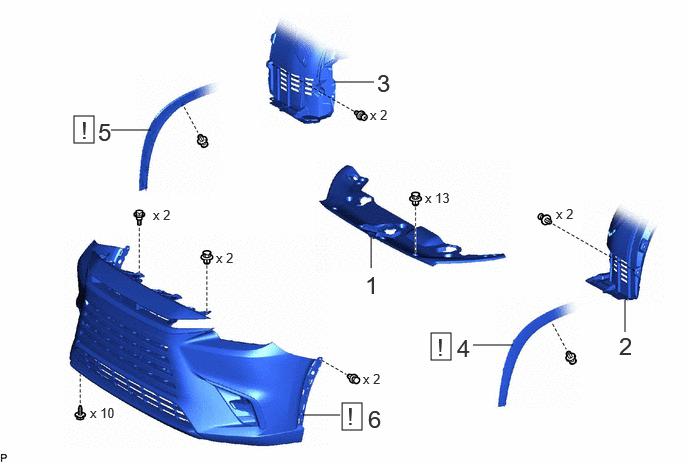

Fig 1: Front Bumper (Except Sport Package) Removal Components

Procedure		Part Name Code
1	COOL AIR INTAKE DUCT SEAL	53295E	-	-	-
2	FRONT FENDER LINER LH	53876A	-	-	-
3	FRONT FENDER LINER RH	53875A	-	-	-
4	FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH	75086	See step 4	-	-
5	FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY RH	75085A	See step 5	-	-
6	FRONT BUMPER ASSEMBLY	-	See step 6	-	-
