Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

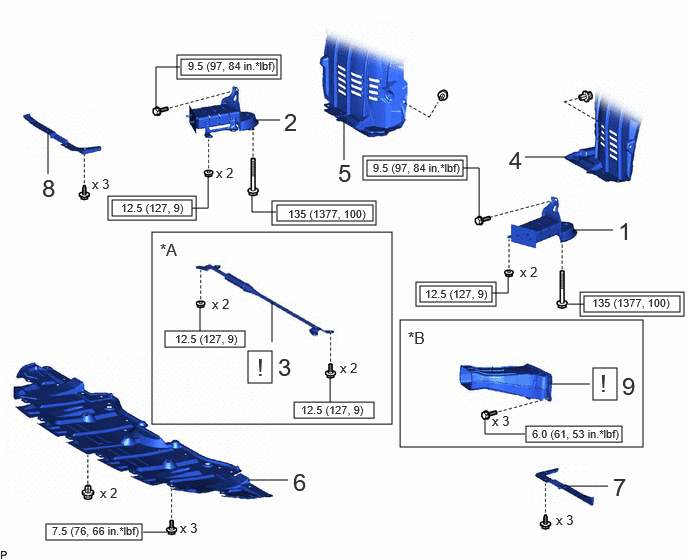

Fig 1: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications [12/2023 - ] (1 Of 8)
GTY1239637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH 52103A - - -
2 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH 52102B - - -
3 SUSPENSION TOWER DAMPER 48691E See step  3 - -
4 FRONT FENDER LINER LH 53876A - - -
5 FRONT FENDER LINER RH 53875A - - -
6 NO. 1 ENGINE UNDER COVER 51441 - - -
7 FRONT WHEEL OPENING EXTENSION PAD LH 53852B - - -
8 FRONT WHEEL OPENING EXTENSION PAD RH 53851D - - -
9 TRANSMISSION OIL COOLER AIR DUCT 32917A See step  9 - -
*A w/ Suspension Tower Damper *B w/ Transmission Oil Cooler Air Duct
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

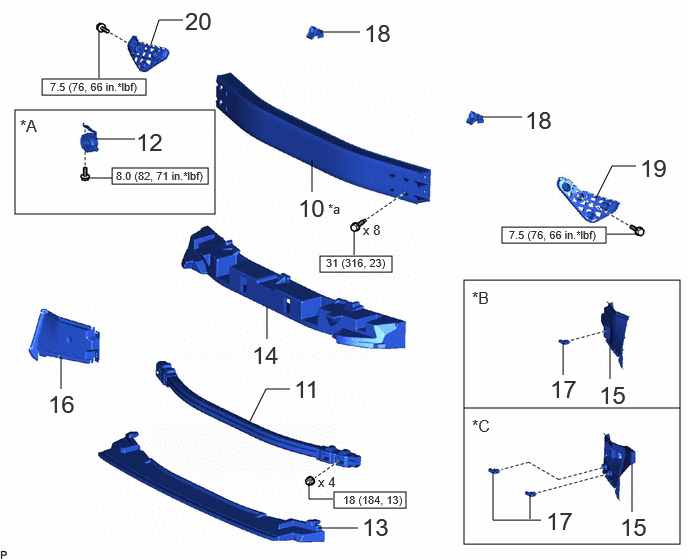

Fig 2: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications [12/2023 - ] (2 Of 8)
GTY1240448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
10 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY 52021 - - -
11 NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY 52029C - - -
12 VEHICLE APPROACHING SPEAKER ASSEMBLY 86570 - - -
13 FRONT BUMPER LOWER ABSORBER 52618 - - -
14 FRONT BUMPER ENERGY ABSORBER 52611 - - -
15 FRONT RADIATOR SIDE AIR GUIDE PLATE LH 16695A - - -
16 FRONT RADIATOR SIDE AIR GUIDE PLATE RH 16691A - - -
17 THERMISTOR ASSEMBLY 88790B - - -
18 NO. 2 FRONT BUMPER LOWER RETAINER 52527B - - -
19 FRONT BUMPER SIDE RETAINER LH 52536 - - -
20 FRONT BUMPER SIDE RETAINER RH 52535 - - -
*A w/ Acoustic Vehicle Alerting System *B for T24A-FTS
*C for PHEV Model
*a HINT:
As the illustration shown is an example, the actual details may differ.
N.m (kgf/cm, ft.lbf): Specified torque - -

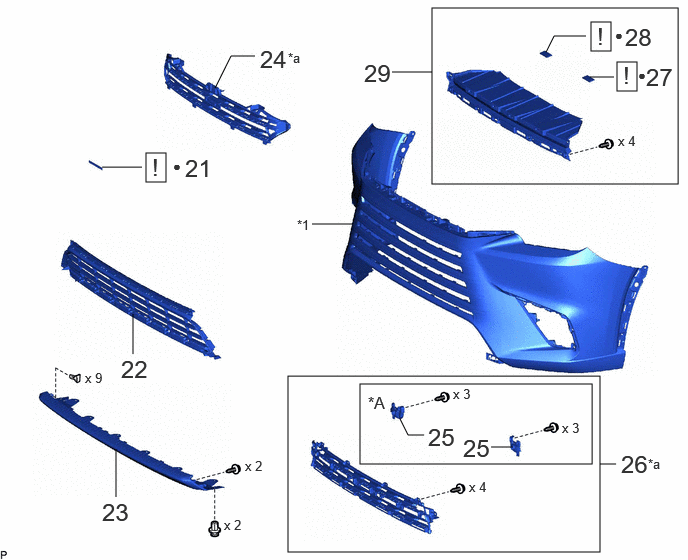

Fig 3: Front Bumper (Except Sport Package) Reassembly Components [12/2023 - ] (3 Of 8)
GTY1227953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
21 FRONT BUMPER PROTECTOR 52541 See step  21 - -
22 NO. 1 LOWER RADIATOR GRILLE 53112E - - -
23 FRONT BUMPER GUARD 52411 - - -
24 RADIATOR GRILLE ASSEMBLY - - - -
25 FRONT CENTER ULTRASONIC SENSOR RETAINER 89C48G - - -
26 RADIATOR GRILLE 53111 - - -
27 FRONT BUMPER PAD LH 52423 See step  27 - -
28 FRONT BUMPER PAD RH 52422B See step  28 - -
29 NO. 1 RADIATOR GRILLE SEAL 53155D - - -
*A w/ Parking Support Brake System - -
*1 FRONT BUMPER LOWER COVER - -
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
• Non-reusable part - -

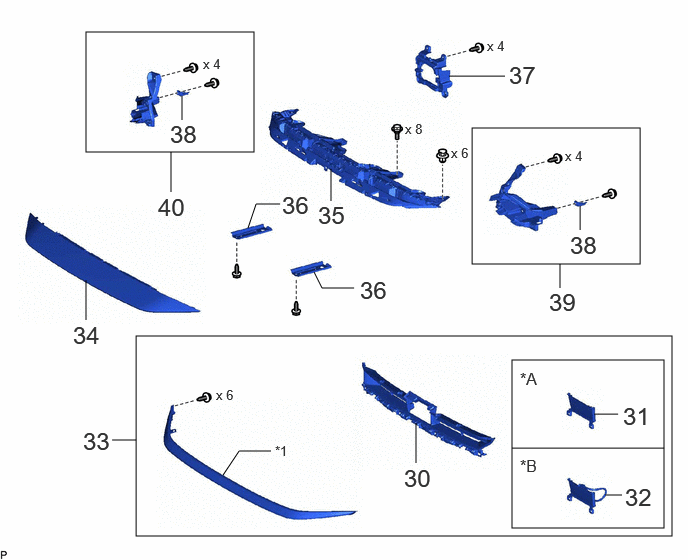

Fig 4: Front Bumper (Except Sport Package) Reassembly Components [12/2023 - ] (4 Of 8)
GTY1240951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
30 RADIATOR GRILLE GARNISH 53141H - - -
31 NO. 2 RADIATOR GRILLE GARNISH 53142G - - -
32 NO. 2 RADIATOR GRILLE GARNISH 53142G - - -
33 RADIATOR GRILLE SUB-ASSEMBLY - - - -
34 FRONT BUMPER MOULDING 52711C - - -
35 RADIATOR GRILLE BRACKET 53115B - - -
36 FRONT BUMPER UPPER RETAINER 52521C - - -
37 NO. 2 RADIATOR GRILLE BRACKET 53116B - - -
38 NO. 1 FRONT BUMPER LOWER RETAINER 52526A - - -
39 FRONT BUMPER SIDE BRACKET LH 52144D - - -
40 FRONT BUMPER SIDE BRACKET RH 52143D - - -
*A w/o Heater *B w/ Heater
*1 NO. 1 RADIATOR GRILLE MOULDING - -

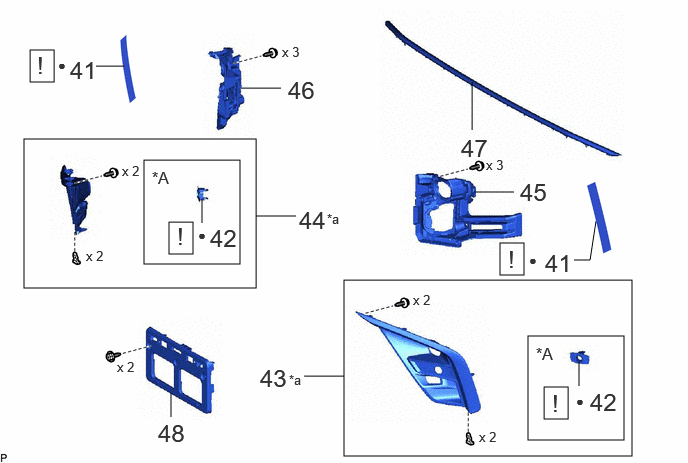

Fig 5: Front Bumper (Except Sport Package) Reassembly Components [12/2023 - ] (5 Of 8)
GTY1234514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
41 NO. 1 MOULDING TAPE 75895K See step  41 - -
42 FRONT CORNER ULTRASONIC SENSOR RETAINER 89C48D See step  42 - -
43 FOG LIGHT COVER LH 81482C - - -
44 FOG LIGHT COVER RH 81481E - - -
45 FOG LIGHT MOUNTING BRACKET LH 52126D - - -
46 FOG LIGHT MOUNTING BRACKET RH 52125A - - -
47 HOOD TO FRONT END PANEL SEAL 53395J - - -
48 FRONT BUMPER EXTENSION MOUNTING BRACKET 52114A - - -
*A w/ Parking Support Brake System - -
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
• Non-reusable part - -

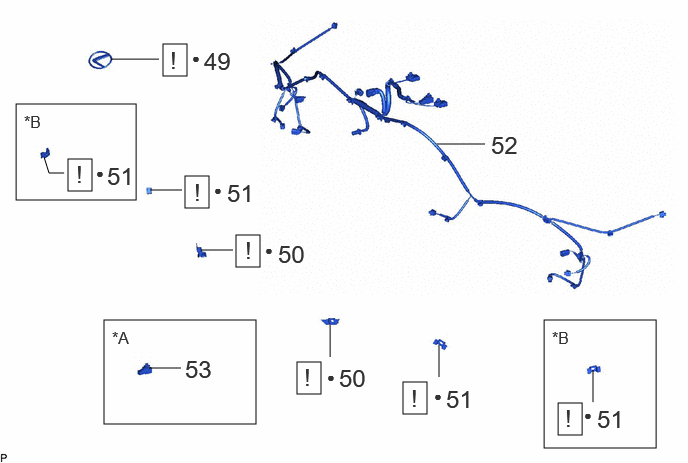

Fig 6: Front Bumper (Except Sport Package) Reassembly Components [12/2023 - ] (6 Of 8)
GTY1231910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
49 RADIATOR GRILLE (OR FRONT PANEL) EMBLEM 75311 See step  49 - -
50 NO. 2 FRONT ULTRASONIC SENSOR CLIP 89C48 See step  50 - -
51 FRONT ULTRASONIC SENSOR CLIP 89348X See step  51 - -
52 NO. 4 ENGINE ROOM WIRE 82114 - - -
53 CONNECTOR COVER 82H21Z - - -
*A w/ Connector Cover *B w/ Advanced Park
• Non-reusable part - -

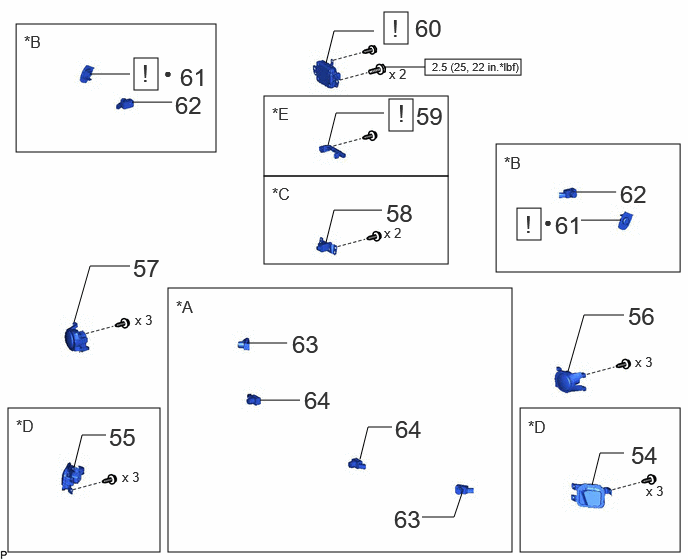

Fig 7: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications [12/2023 - ] (7 Of 8)
GTY1240253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
54 CORNERING LIGHT ASSEMBLY LH 81390E - - -
55 CORNERING LIGHT ASSEMBLY RH 81360E - - -
56 FOG LIGHT UNIT LH - - - -
57 FOG LIGHT UNIT RH - - - -
58 FRONT TELEVISION CAMERA ASSEMBLY 86790B - - -
59 NO. 2 ELECTRICAL KEY ANTENNA 89997A See step  59 - -
60 MILLIMETER WAVE RADAR SENSOR ASSEMBLY 88211B See step  60 - -
61 FRONT SIDE ULTRASONIC SENSOR RETAINER 89C48F See step  61 - -
62 FRONT SIDE ULTRASONIC SENSOR 89341M - - -
63 FRONT CORNER ULTRASONIC SENSOR 89341K - - -
64 FRONT CENTER ULTRASONIC SENSOR 89341L - - -
*A w/ Parking Support Brake System *B w/ Advanced Park
*C w/ Panoramic View Monitor System *D w/ Cornering Light
*E w/ Remote Parking Antenna - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

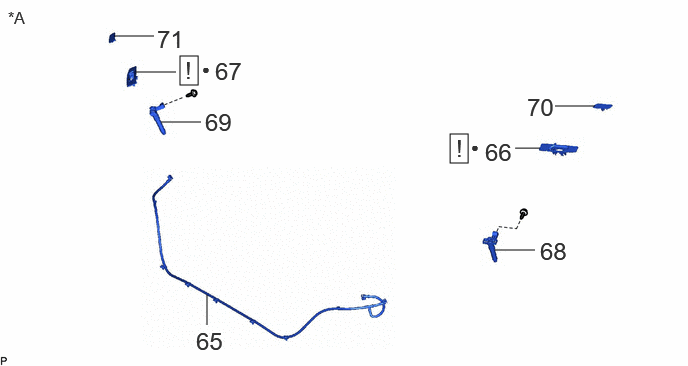

Fig 8: Front Bumper (Except Sport Package) Reassembly Components [12/2023 - ] (8 Of 8)
GTY1229174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
65 WASHER HOSE - - - -
66 NO. 2 WASHER BRACKET 85362 See step  66 - -
67 WASHER BRACKET 85361C See step  67 - -
68 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH 85208A - - -
69 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH 85207A - - -
70 HEADLIGHT WASHER COVER LH 85354 - - -
71 HEADLIGHT WASHER COVER RH 85353 - - -
*A w/ Headlight Cleaner System - -
• Non-reusable part - -
