Reassembly [09/2023 - 12/2023]: Procedure

  1. INSTALL FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

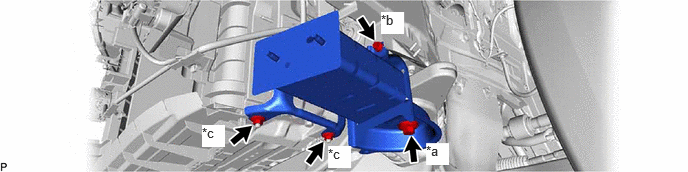

    1. GTY1199411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt A *b Bolt B
      *c Nut - -

      Bolt(A)

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

      Bolt(B)

      Torque: 9.5 N.m (97 kgf/cm, 84 in.lbf)

      Nut

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

  2. INSTALL FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  3. INSTALL SUSPENSION TOWER DAMPER (w/ Suspension Tower Damper)
    Refer to PROCEDURE - Step 1
  4. CONNECT FRONT FENDER LINER LH
  5. CONNECT FRONT FENDER LINER RH
    1. Use the same procedure as for the LH side.
  6. INSTALL NO. 1 ENGINE UNDER COVER

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  7. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
  8. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
  9. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    Torque: 31 N.m (316 kgf/cm, 23 ft.lbf)

  10. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

  11. INSTALL VEHICLE APPROACHING SPEAKER ASSEMBLY (w/ Acoustic Vehicle Alerting System)

    Refer to PROCEDURE - Step 1

  12. INSTALL FRONT BUMPER LOWER ABSORBER
  13. INSTALL FRONT BUMPER ENERGY ABSORBER
  14. INSTALL FRONT RADIATOR SIDE AIR GUIDE PLATE LH
  15. INSTALL FRONT RADIATOR SIDE AIR GUIDE PLATE RH
  16. INSTALL THERMISTOR ASSEMBLY
  17. INSTALL NO. 2 FRONT BUMPER LOWER RETAINER
  18. INSTALL FRONT BUMPER SIDE RETAINER LH

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  19. INSTALL FRONT BUMPER SIDE RETAINER RH
    1. Use the same procedure as for the LH side.
  20. INSTALL FRONT BUMPER PROTECTOR

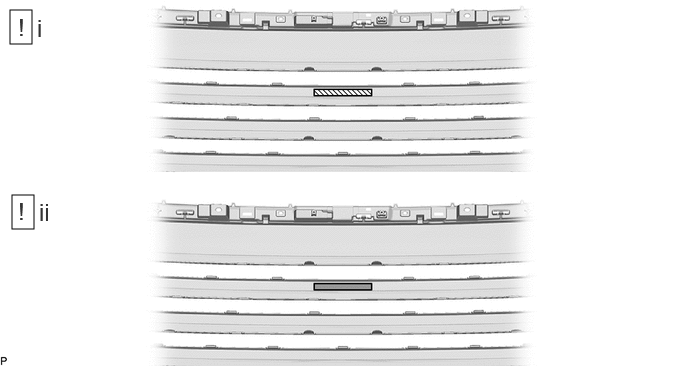

    1. GTY1234601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Cleaning Area Primer
      1. Clean the front bumper cover surface.

        1. Using a heat light, heat the double-sided tape remaining on the front bumper cover and front bumper protector.

        HEATING TEMPERATURE

        Area Temperature Area Temperature
        Front Bumper Cover 20 to 30 °C (68 to 86 °F) Front Bumper Protector 20 to 30 °C (68 to 86 °F)
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the front bumper cover excessively.

        2. Remove any remaining double-sided tape from the front bumper cover.

        3. Wipe off any tape adhesive residue with cleaner.

      2. Apply primer to the installation area of the front bumper protector on the front bumper cover.

        1. Using a brush or felt, apply primer or equivalent to the installation area of the front bumper protector.

        NOTE:
        • Replace the brush or felt if it is dirty or has become hardened.
        • Do not apply primer to the painted side.
        • Do not touch the front bumper cover until the primer has dried.

        2. Let the primer dry sufficiently.

        NOTE:

        Do not touch applied surfaces until the primer is dry.

        Recommended drying time

        10 minutes or more (at 23°C (73°F))

        3. Confirm that the primer has completely dried by touching the front bumper cover.

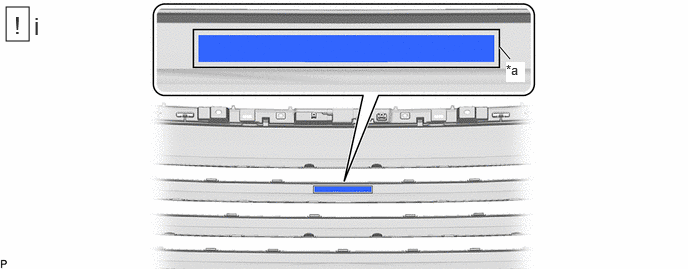

    2. GTY1239808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Scribed Line - -
      1. Install a new front bumper protector.

        1. Using a heat light, heat the front bumper cover surface.

        2. Remove the release paper from the front bumper protector.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install a front bumper protector as shown in the illustration.

        HINT:

        • Apply the front bumper protector along the scribed line on the front bumper cover.
        • Press the front bumper protector firmly to install it.
  21. INSTALL NO. 1 LOWER RADIATOR GRILLE
  22. INSTALL FRONT BUMPER GUARD
  23. INSTALL RADIATOR GRILLE ASSEMBLY
  24. INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
  25. INSTALL RADIATOR GRILLE
  26. INSTALL FRONT BUMPER PAD LH

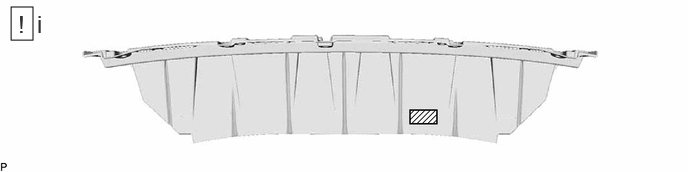

    1. GTY1232601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Cleaning Area - -
      1. Clean the No. 1 radiator grille seal surface.

        1. Using a heat light, heat the double-sided tape remaining on the No. 1 radiator grille seal and front bumper pad LH.

        HEATING TEMPERATURE

        Area Temperature Area Temperature
        No. 1 Radiator Grille Seal 20 to 30 °C (68 to 86 °F) Front Bumper Pad LH 20 to 30 °C (68 to 86 °F)
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the No. 1 radiator grille seal excessively.

        2. Remove any remaining double-sided tape from the No. 1 radiator grille seal.

        3. Wipe off any tape adhesive residue with cleaner.

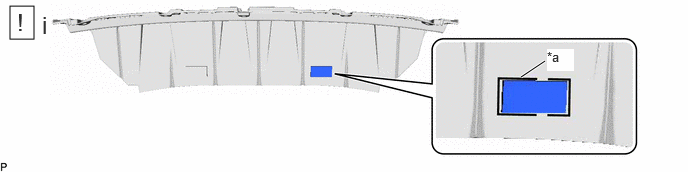

    2. GTY1239685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Scribed Line - -
      1. Install a new front bumper pad LH.

        1. Using a heat light, heat the No. 1 radiator grille seal surface.

        2. Remove the release paper from the front bumper pad LH.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the front bumper pad LH as shown in the illustration.

        HINT:

        • Apply the front bumper pad LH along the scribed line on the No. 1 radiator grille seal.
        • Press the front bumper pad LH firmly to install it.
  27. INSTALL FRONT BUMPER PAD RH
    1. Use the same procedure as for the LH side.
  28. INSTALL NO. 1 RADIATOR GRILLE SEAL
  29. INSTALL RADIATOR GRILLE GARNISH
  30. INSTALL NO. 2 RADIATOR GRILLE GARNISH (w/o Heater)
  31. INSTALL NO. 2 RADIATOR GRILLE GARNISH (w/ Heater)
  32. INSTALL RADIATOR GRILLE SUB-ASSEMBLY
  33. INSTALL FRONT BUMPER MOULDING
  34. INSTALL RADIATOR GRILLE BRACKET
  35. INSTALL FRONT BUMPER UPPER RETAINER
  36. INSTALL NO. 2 RADIATOR GRILLE BRACKET
  37. INSTALL NO. 1 FRONT BUMPER LOWER RETAINER
  38. INSTALL FRONT BUMPER SIDE BRACKET LH
  39. INSTALL FRONT BUMPER SIDE BRACKET RH
  40. INSTALL NO. 1 MOULDING TAPE

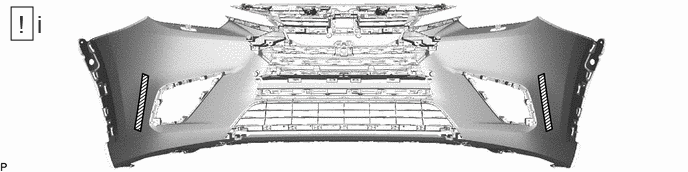

    1. GTY1228112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Cleaning Area - -
      1. Clean the front bumper cover surface.

        1. Using a heat light, heat the double-sided tape remaining on the front bumper cover and 2 No. 1 moulding tapes.

        HEATING TEMPERATURE

        Area Temperature Area Temperature
        Front Bumper Cover 20 to 30 °C (68 to 86 °F) No. 1 Moulding Tape 20 to 30 °C (68 to 86 °F)
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the front bumper cover excessively.

        2. Remove any remaining double-sided tape from the front bumper cover.

        3. Wipe off any tape adhesive residue with cleaner.

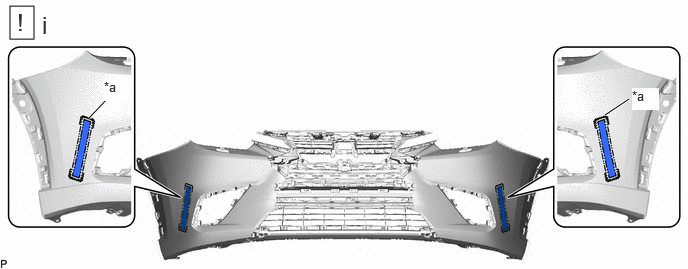

    2. GTY1236454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Scribed Line - -
      1. Install 2 new No. 1 moulding tapes.

        1. Using a heat light, heat the front bumper cover surface.

        2. Remove the release paper from the 2 No. 1 moulding tapes.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the 2 No. 1 moulding tapes as shown in the illustration.

        HINT:

        • Apply the No. 1 moulding tape along the scribed line on the front bumper cover.
        • Press the No. 1 moulding tape firmly to install it.
  41. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    Refer to PROCEDURE - Step 3
  42. INSTALL FOG LIGHT COVER LH
  43. INSTALL FOG LIGHT COVER RH
  44. INSTALL FOG LIGHT MOUNTING BRACKET LH
  45. INSTALL FOG LIGHT MOUNTING BRACKET RH
  46. INSTALL HOOD TO FRONT END PANEL SEAL
  47. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
  48. INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    Refer to PROCEDURE - Step 5
  49. INSTALL NO. 2 FRONT ULTRASONIC SENSOR CLIP
    1. GTY1234852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Cleaning Area Primer
      1. Clean the front bumper cover surface.

        1. Using a heat light, heat the double-sided tape remaining on the front bumper cover and 2 No. 2 ultrasonic sensor clips.

        HEATING TEMPERATURE

        Area Temperature Area Temperature
        Front Bumper Cover 20 to 30 °C (68 to 86 °F) No. 2 Ultrasonic Sensor Clip 20 to 30 °C (68 to 86 °F)
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the front bumper cover excessively.

        2. Remove any remaining double-sided tape from the front bumper cover.

        3. Wipe off any tape adhesive residue with cleaner.

      2. Apply primer to the installation area of the 2 No. 2 ultrasonic sensor clips on the front bumper cover.

        1. Using a brush or felt, apply primer or equivalent to the 2 No. 2 ultrasonic sensor clips installation area.

        NOTE:
        • Replace the brush or felt if it is dirty or has become hardened.
        • Do not apply primer to the painted side.
        • Do not touch the front bumper cover until the primer has dried.

        2. Let the primer dry sufficiently.

        NOTE:

        Do not touch applied surfaces until the primer is dry.

        Recommended drying time

        10 minutes or more (at 23°C (73°F))

        3. Confirm that the primer has completely dried by touching the front bumper cover. Then remove the tape.

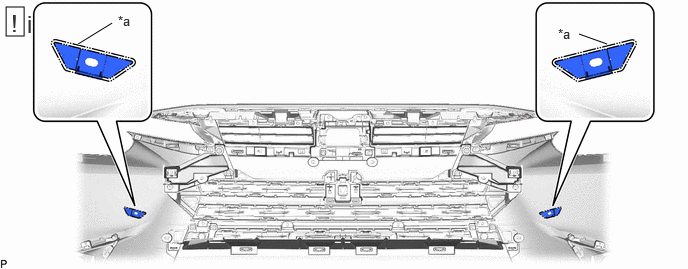

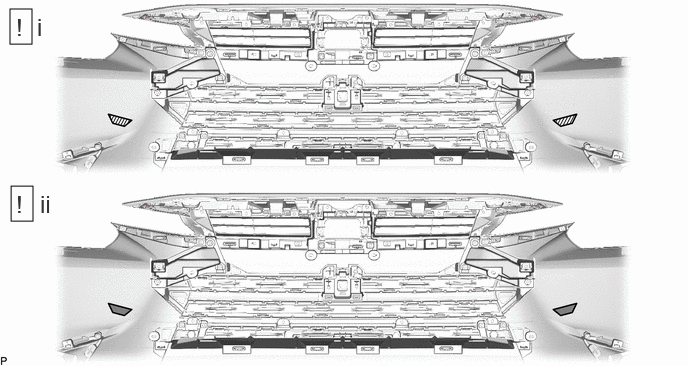

    2. GTY1232963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Scribed Line - -
      1. Install 2 new No. 2 ultrasonic sensor clips.

        1. Using a heat light, heat the front bumper cover surface.

        2. Remove the release paper from the 2 No. 2 ultrasonic sensor clips.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the 2 No. 2 ultrasonic sensor clips as shown in the illustration.

        HINT:

        • Apply the No. 2 ultrasonic sensor clip along the scribed line on the front bumper cover.
        • Press the No. 2 ultrasonic sensor clip firmly to install it.
  50. INSTALL FRONT ULTRASONIC SENSOR CLIP

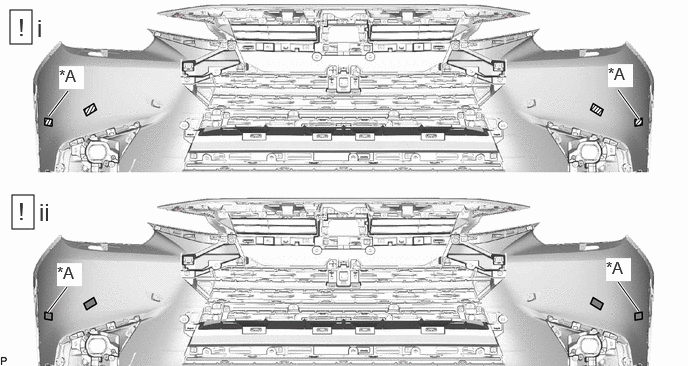

    1. GTY1231141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Park - -
      Cleaning Area Primer
      1. Clean the front bumper cover surface.

        1. Using a heat light, heat the double-sided tape remaining on the front bumper cover and each front ultrasonic sensor clip.

        HEATING TEMPERATURE

        Area Temperature Area Temperature
        Front Bumper Cover 20 to 30 °C (68 to 86 °F) Front Ultrasonic Sensor Clip 20 to 30 °C (68 to 86 °F)
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the front bumper cover excessively.

        2. Remove any remaining double-sided tape from the front bumper cover.

        3. Wipe off any tape adhesive residue with cleaner.

      2. Apply primer to the installation area of each front ultrasonic sensor clip on the front bumper cover.

        1. Using a brush or felt, apply primer or equivalent to the installation area of each front ultrasonic sensor clip.

        NOTE:
        • Replace the brush or felt if it is dirty or has become hardened.
        • Do not apply primer to the painted side.
        • Do not touch the front bumper cover until the primer has dried.

        2. Let the primer dry sufficiently.

        NOTE:

        Do not touch applied surfaces until the primer is dry.

        Recommended drying time

        10 minutes or more (at 23°C (73°F))

        3. Confirm that the primer has completely dried by touching the front bumper cover. Then remove the tape.

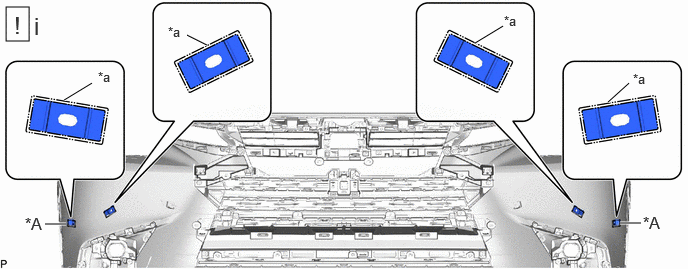

    2. GTY1229537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Park - -
      *a Scribed Line - -
      1. Install each new front ultrasonic sensor clip.

        1. Using a heat light, heat the front bumper cover surface.

        2. Remove the release paper from each front ultrasonic sensor clip.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install each front ultrasonic sensor clip as shown in the illustration.

        HINT:

        • Apply the front ultrasonic sensor clip along the scribed line on the front bumper cover.
        • Press the front ultrasonic sensor clip firmly to install it.
  51. INSTALL NO. 4 ENGINE ROOM WIRE
  52. INSTALL CONNECTOR COVER (w/ Connector Cover)
  53. INSTALL CORNERING LIGHT ASSEMBLY LH (w/ Cornering Light)
  54. INSTALL CORNERING LIGHT ASSEMBLY RH (w/ Cornering Light)
  55. INSTALL FOG LIGHT UNIT LH
  56. INSTALL FOG LIGHT UNIT RH
  57. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
  58. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    Refer to PROCEDURE - Step 1
  59. INSTALL FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    Refer to PROCEDURE - Step 2
  60. INSTALL FRONT SIDE ULTRASONIC SENSOR (w/ Advanced Park)
  61. INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)
  62. INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)
  63. INSTALL WASHER HOSE (w/ Headlight Cleaner System)
  64. INSTALL NO. 2 WASHER BRACKET (w/ Headlight Cleaner System)
    Refer to PROCEDURE - Step 1
  65. INSTALL WASHER BRACKET (w/ Headlight Cleaner System)
    1. Use the same procedure as for the LH side.
  66. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)
  67. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)
  68. INSTALL HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)
  69. INSTALL HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)
scientia non olet · About LEMON Manuals
