Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

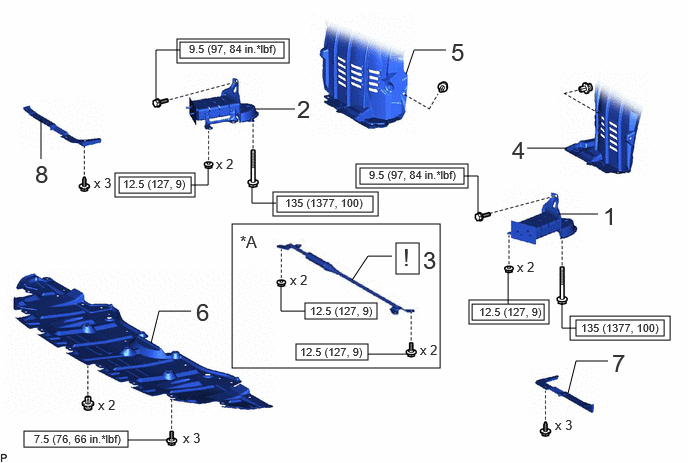

Fig 1: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications [09/2023 - 12/2023] (1 Of 8)
GTY1228993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH 52103A - - -
2 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH 52102B - - -
3 SUSPENSION TOWER DAMPER 48691E See step  3 - -
4 FRONT FENDER LINER LH 53876A - - -
5 FRONT FENDER LINER RH 53875A - - -
6 NO. 1 ENGINE UNDER COVER 51441 - - -
7 FRONT WHEEL OPENING EXTENSION PAD LH 53852B - - -
8 FRONT WHEEL OPENING EXTENSION PAD RH 53851D - - -
*A w/ Suspension Tower Damper - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

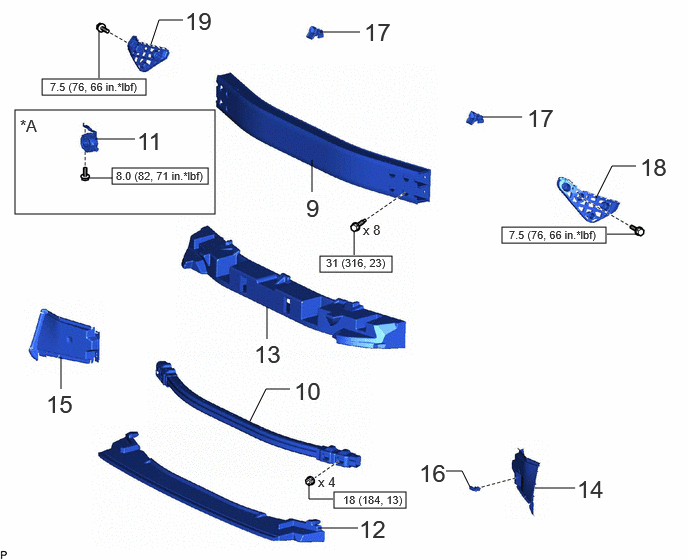

Fig 2: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications [09/2023 - 12/2023] (2 Of 8)
GTY1230924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
9 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY 52021 - - -
10 NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY 52029C - - -
11 VEHICLE APPROACHING SPEAKER ASSEMBLY 86570 - - -
12 FRONT BUMPER LOWER ABSORBER 52618 - - -
13 FRONT BUMPER ENERGY ABSORBER 52611 - - -
14 FRONT RADIATOR SIDE AIR GUIDE PLATE LH 16695A - - -
15 FRONT RADIATOR SIDE AIR GUIDE PLATE RH 16691A - - -
16 THERMISTOR ASSEMBLY 88790B - - -
17 NO. 2 FRONT BUMPER LOWER RETAINER 52527B - - -
18 FRONT BUMPER SIDE RETAINER LH 52536 - - -
19 FRONT BUMPER SIDE RETAINER RH 52535 - - -
*A w/ Acoustic Vehicle Alerting System - -
N.m (kgf/cm, ft.lbf): Specified torque - -

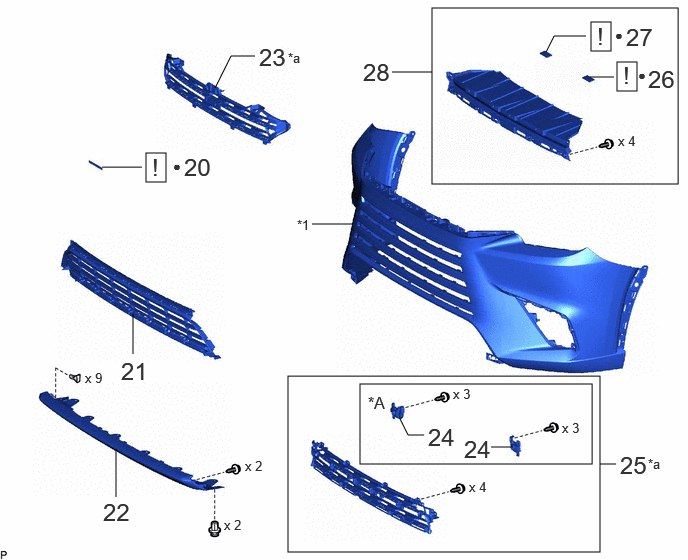

Fig 3: Front Bumper (Except Sport Package) Reassembly Components [09/2023 - 12/2023] (3 Of 8)
GTY1227955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
20 FRONT BUMPER PROTECTOR 52541   - -
21 NO. 1 LOWER RADIATOR GRILLE 53112E - - -
22 FRONT BUMPER GUARD 52411 - - -
23 RADIATOR GRILLE ASSEMBLY - - - -
24 FRONT CENTER ULTRASONIC SENSOR RETAINER 89C48G - - -
25 RADIATOR GRILLE 53111 - - -
26 FRONT BUMPER PAD LH 52423 See step  26 - -
27 FRONT BUMPER PAD RH 52422B See step  27 - -
28 NO. 1 RADIATOR GRILLE SEAL 53155D - - -
*A w/ Parking Support Brake System - -
*1 FRONT BUMPER LOWER COVER - -
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
• Non-reusable part - -

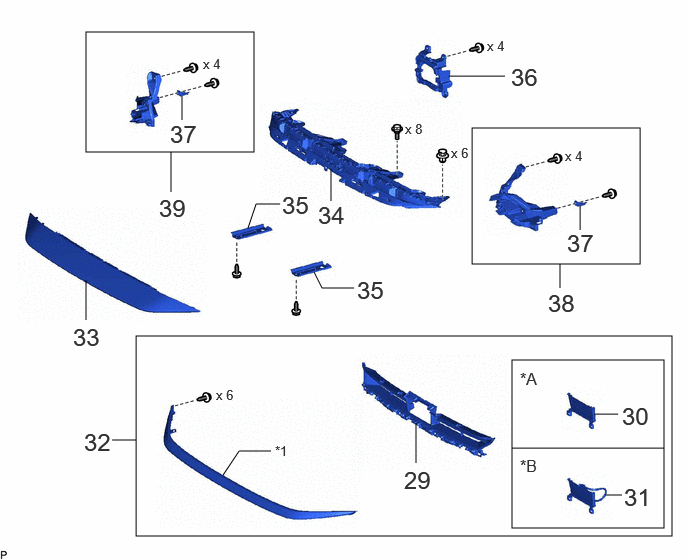

Fig 4: Front Bumper (Except Sport Package) Reassembly Components [09/2023 - 12/2023] (4 Of 8)
GTY1236778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
29 RADIATOR GRILLE GARNISH 53141H - - -
30 NO. 2 RADIATOR GRILLE GARNISH 53142G - - -
31 NO. 2 RADIATOR GRILLE GARNISH 53142G - - -
32 RADIATOR GRILLE SUB-ASSEMBLY - - - -
33 FRONT BUMPER MOULDING 52711C - - -
34 RADIATOR GRILLE BRACKET 53115B - - -
35 FRONT BUMPER UPPER RETAINER 52521C - - -
36 NO. 2 RADIATOR GRILLE BRACKET 53116B - - -
37 NO. 1 FRONT BUMPER LOWER RETAINER 52526A - - -
38 FRONT BUMPER SIDE BRACKET LH 52144D - - -
39 FRONT BUMPER SIDE BRACKET RH 52143D - - -
*A w/o Heater *B w/ Heater
*1 NO. 1 RADIATOR GRILLE MOULDING - -

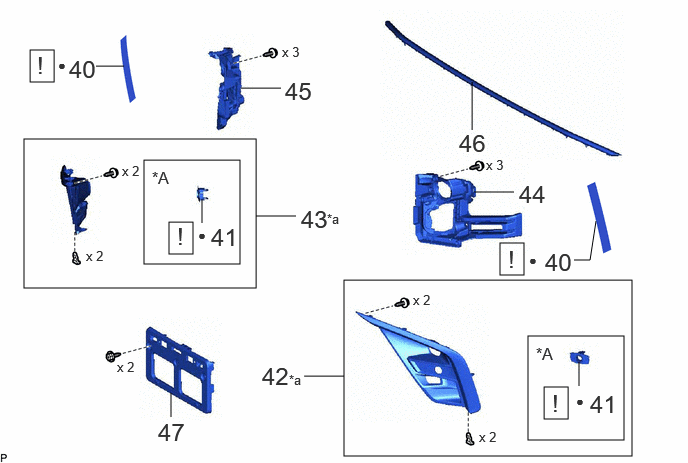

Fig 5: Front Bumper (Except Sport Package) Reassembly Components [09/2023 - 12/2023] (5 Of 8)
GTY1234513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
40 NO. 1 MOULDING TAPE 75895K See step  40 - -
41 FRONT CORNER ULTRASONIC SENSOR RETAINER 89C48D See step  41 - -
42 FOG LIGHT COVER LH 81482C - - -
43 FOG LIGHT COVER RH 81481E - - -
44 FOG LIGHT MOUNTING BRACKET LH 52126D - - -
45 FOG LIGHT MOUNTING BRACKET RH 52125A - - -
46 HOOD TO FRONT END PANEL SEAL 53395J - - -
47 FRONT BUMPER EXTENSION MOUNTING BRACKET 52114A - - -
*A w/ Parking Support Brake System - -
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
• Non-reusable part - -

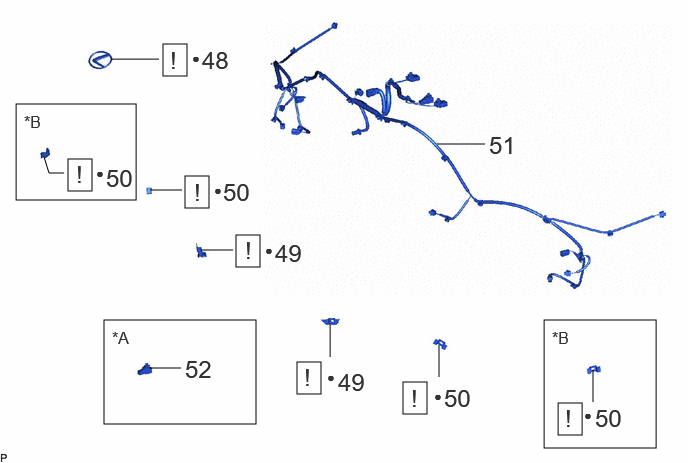

Fig 6: Front Bumper (Except Sport Package) Reassembly Components [09/2023 - 12/2023] (6 Of 8)
GTY1231913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
48 RADIATOR GRILLE (OR FRONT PANEL) EMBLEM 75311 See step  48 - -
49 NO. 2 FRONT ULTRASONIC SENSOR CLIP 89C48 See step  49 - -
50 FRONT ULTRASONIC SENSOR CLIP 89348X See step  50 - -
51 NO. 4 ENGINE ROOM WIRE 82114 - - -
52 CONNECTOR COVER 82H21Z - - -
*A w/ Connector Cover *B w/ Advanced Park
• Non-reusable part - -

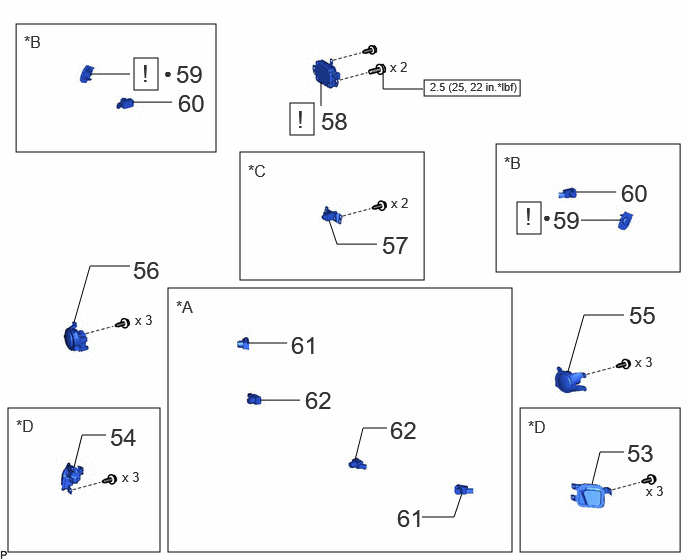

Fig 7: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications [09/2023 - 12/2023] (7 Of 8)
GTY1238277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
53 CORNERING LIGHT ASSEMBLY LH 81390E - - -
54 CORNERING LIGHT ASSEMBLY RH 81360E - - -
55 FOG LIGHT UNIT LH - - - -
56 FOG LIGHT UNIT RH - - - -
57 FRONT TELEVISION CAMERA ASSEMBLY 86790B - - -
58 MILLIMETER WAVE RADAR SENSOR ASSEMBLY 88211B See step  58 - -
59 FRONT SIDE ULTRASONIC SENSOR RETAINER 89C48F See step  59 - -
60 FRONT SIDE ULTRASONIC SENSOR 89341M - - -
61 FRONT CORNER ULTRASONIC SENSOR 89341K - - -
62 FRONT CENTER ULTRASONIC SENSOR 89341L - - -
*A w/ Parking Support Brake System *B w/ Advanced Park
*C w/ Panoramic View Monitor System *D w/ Cornering Light
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

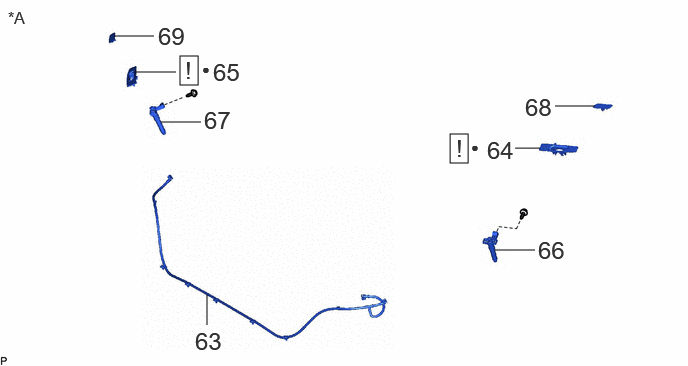

Fig 8: Front Bumper (Except Sport Package) Reassembly Components [09/2023 - 12/2023] (8 Of 8)
GTY1239367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
63 WASHER HOSE - - - -
64 NO. 2 WASHER BRACKET 85362 See step  64 - -
65 WASHER BRACKET 85361C See step  65 - -
66 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH 85208A - - -
67 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH 85207A - - -
68 HEADLIGHT WASHER COVER LH 85354 - - -
69 HEADLIGHT WASHER COVER RH 85353 - - -
*A w/ Headlight Cleaner System - -
• Non-reusable part - -
