Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

Fig 1: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (1 Of 8)
GTY1229175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 HEADLIGHT WASHER COVER LH 85354 See step  1 - -
2 HEADLIGHT WASHER COVER RH 85353 See step  2 - -
3 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH 85208A - - -
4 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH 85207A - - -
5 NO. 2 WASHER BRACKET 85362 See step  5 - -
6 WASHER BRACKET 85361C See step  6 - -
7 WASHER HOSE - - - -
*A w/ Headlight Cleaner System - -
• Non-reusable part - -

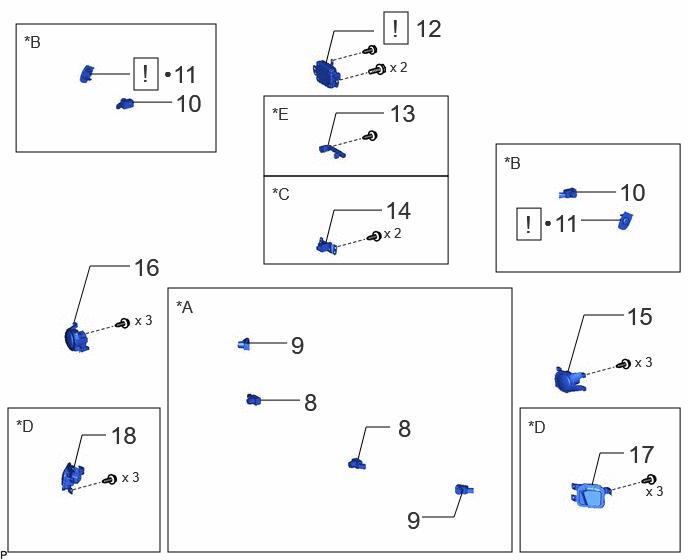

Fig 2: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (2 Of 8)
GTY1233448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
8 FRONT CENTER ULTRASONIC SENSOR 89341L - - -
9 FRONT CORNER ULTRASONIC SENSOR 89341K - - -
10 FRONT SIDE ULTRASONIC SENSOR 89341M - - -
11 FRONT SIDE ULTRASONIC SENSOR RETAINER 89C48F See step  11 - -
12 MILLIMETER WAVE RADAR SENSOR ASSEMBLY 88211B See step  12 - -
13 NO. 2 ELECTRICAL KEY ANTENNA 89997A - - -
14 FRONT TELEVISION CAMERA ASSEMBLY 86790B - - -
15 FOG LIGHT UNIT LH - - - -
16 FOG LIGHT UNIT RH - - - -
17 CORNERING LIGHT ASSEMBLY LH 81390E - - -
18 CORNERING LIGHT ASSEMBLY RH 81360E - - -
*A w/ Parking Support Brake System *B w/ Advanced Park
*C w/ Panoramic View Monitor System *D w/ Cornering Light
*E w/ Remote Parking Antenna - -
• Non-reusable part - -

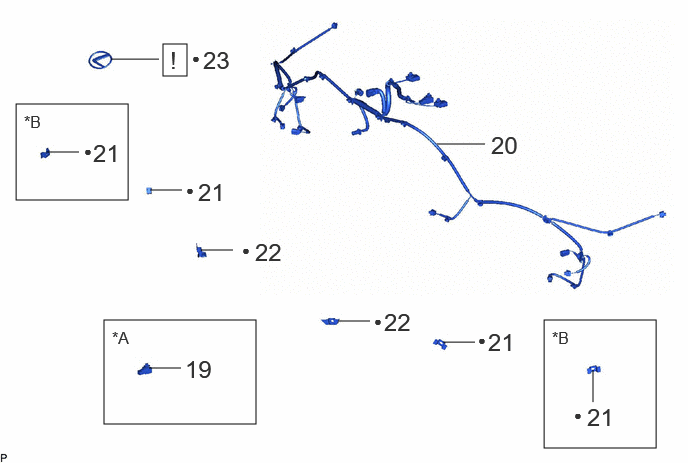

Fig 3: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (3 Of 8)
GTY1231909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
19 CONNECTOR COVER 82H21Z - - -
20 NO. 4 ENGINE ROOM WIRE 82114 - - -
21 FRONT ULTRASONIC SENSOR CLIP 89348X - - -
22 NO. 2 FRONT ULTRASONIC SENSOR CLIP 89C48 - - -
23 RADIATOR GRILLE (OR FRONT PANEL) EMBLEM 75311 See step  23 - -
*A w/ Connector Cover *B w/ Advanced Park
• Non-reusable part - -

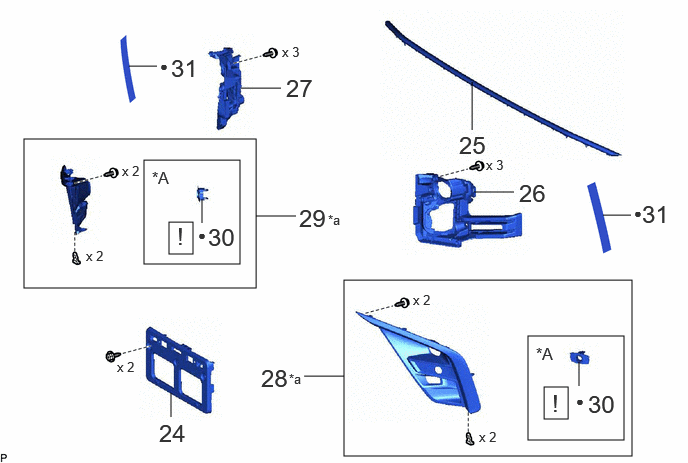

Fig 4: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (4 Of 8)
GTY1234515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
24 FRONT BUMPER EXTENSION MOUNTING BRACKET 52114A - - -
25 HOOD TO FRONT END PANEL SEAL 53395J - - -
26 FOG LIGHT MOUNTING BRACKET LH 52126D - - -
27 FOG LIGHT MOUNTING BRACKET RH 52125A - - -
28 FOG LIGHT COVER LH 81482C - - -
29 FOG LIGHT COVER RH 81481E - - -
30 FRONT CORNER ULTRASONIC SENSOR RETAINER 89C48D See step  30 - -
31 NO. 1 MOULDING TAPE 75895K - - -
*A w/ Parking Support Brake System - -
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
• Non-reusable part - -

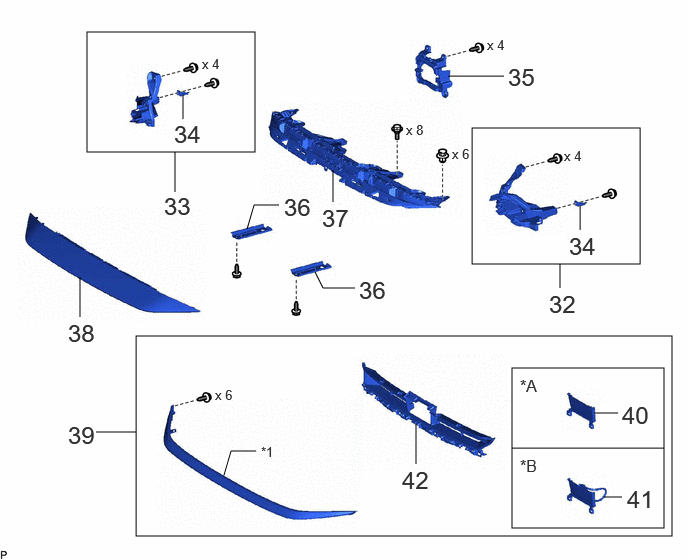

Fig 5: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (5 Of 8)
GTY1236779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
32 FRONT BUMPER SIDE BRACKET LH 52144D - - -
33 FRONT BUMPER SIDE BRACKET RH 52143D - - -
34 NO. 1 FRONT BUMPER LOWER RETAINER 52526A - - -
35 NO. 2 RADIATOR GRILLE BRACKET 53116B - - -
36 FRONT BUMPER UPPER RETAINER 52521C - - -
37 RADIATOR GRILLE BRACKET 53115B - - -
38 FRONT BUMPER MOULDING 52711C - - -
39 RADIATOR GRILLE SUB-ASSEMBLY - - - -
40 NO. 2 RADIATOR GRILLE GARNISH 53142G - - -
41 NO. 2 RADIATOR GRILLE GARNISH 53142G - - -
42 RADIATOR GRILLE GARNISH 53141H - - -
*A w/o Heater *B w/ Heater
*1 NO. 1 RADIATOR GRILLE MOULDING - -

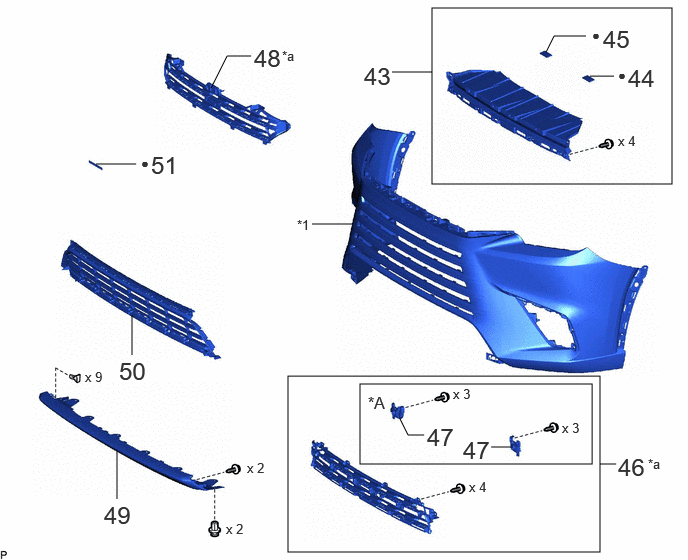

Fig 6: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (6 Of 8)
GTY1227954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
43 NO. 1 RADIATOR GRILLE SEAL 53155D - - -
44 FRONT BUMPER PAD LH 52423 - - -
45 FRONT BUMPER PAD RH 52422B - - -
46 RADIATOR GRILLE 53111 - - -
47 FRONT CENTER ULTRASONIC SENSOR RETAINER 89C48G - - -
48 RADIATOR GRILLE ASSEMBLY - - - -
49 FRONT BUMPER GUARD 52411 - - -
50 NO. 1 LOWER RADIATOR GRILLE 53112E - - -
51 FRONT BUMPER PROTECTOR 52541 - - -
*A w/ Parking Support Brake System - -
*1 FRONT BUMPER COVER - -
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
• Non-reusable part - -

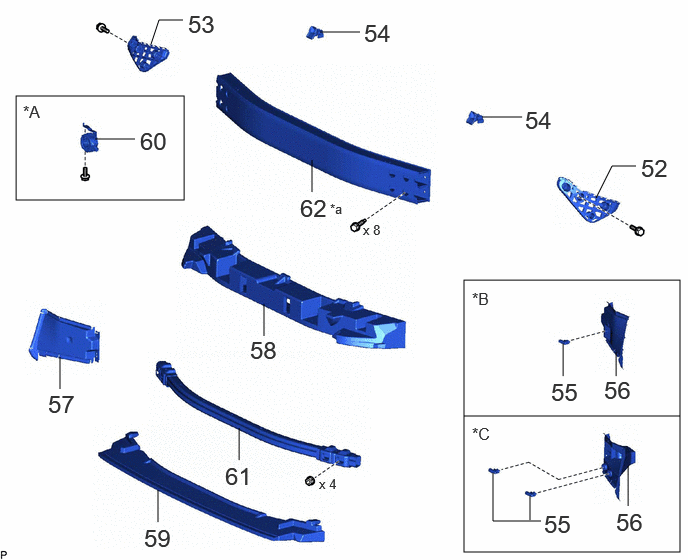

Fig 7: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (7 Of 8)
GTY1234378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
52 FRONT BUMPER SIDE RETAINER LH 52536 - - -
53 FRONT BUMPER SIDE RETAINER RH 52535 - - -
54 NO. 2 FRONT BUMPER LOWER RETAINER 52527B - - -
55 THERMISTOR ASSEMBLY 88790B - - -
56 FRONT RADIATOR SIDE AIR GUIDE PLATE LH 16695A - - -
57 FRONT RADIATOR SIDE AIR GUIDE PLATE RH 16691A - - -
58 FRONT BUMPER ENERGY ABSORBER 52611 - - -
59 FRONT BUMPER LOWER ABSORBER 52618 - - -
60 VEHICLE APPROACHING SPEAKER ASSEMBLY 86570 - - -
61 NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY 52029C - - -
62 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY 52021 - - -
*A w/ Acoustic Vehicle Alerting System *B for T24A-FTS
*C for PHEV Model - -
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -

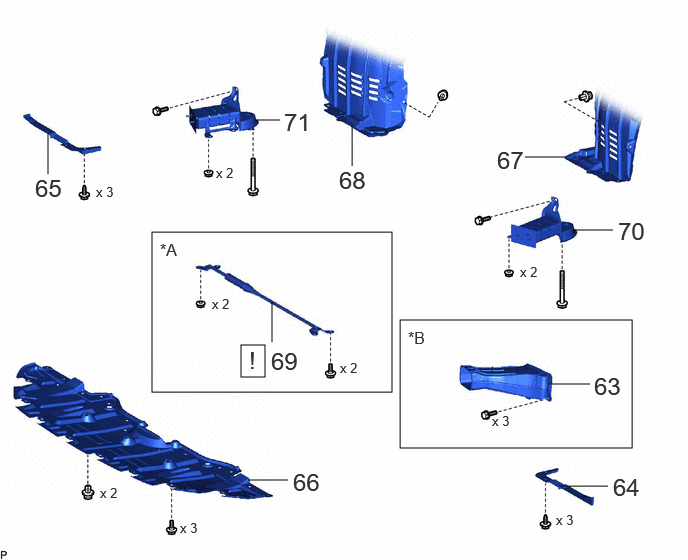

Fig 8: Front Bumper (Except Sport Package) Disassembly Components [12/2023 - ] (8 Of 8)
GTY1230494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
63 TRANSMISSION OIL COOLER AIR DUCT 32917A - - -
64 FRONT WHEEL OPENING EXTENSION PAD LH 53852B - - -
65 FRONT WHEEL OPENING EXTENSION PAD RH 53851D - - -
66 NO. 1 ENGINE UNDER COVER 51441 - - -
67 FRONT FENDER LINER LH 53876A - - -
68 FRONT FENDER LINER RH 53875A - - -
69 SUSPENSION TOWER DAMPER 48691E See step  69 - -
70 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH 52103A - - -
71 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH 52102B - - -
*A w/ Suspension Tower Damper *B w/ Transmission Oil Cooler Air Duct
