COMPONENTS (DISASSEMBLY)

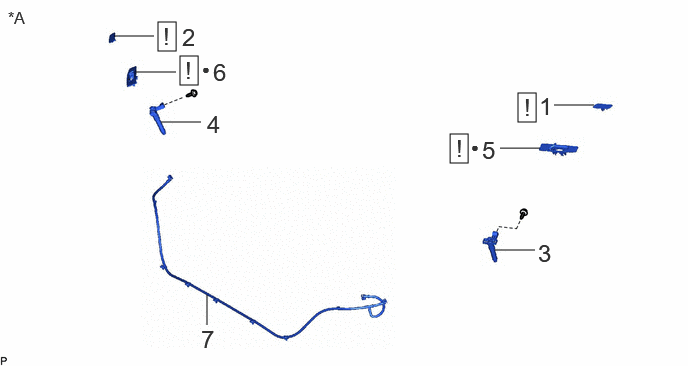

Fig 1: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	HEADLIGHT WASHER COVER LH	85354	See step 1	-	-
2	HEADLIGHT WASHER COVER RH	85353	See step 2	-	-
3	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH	85208A	-	-	-
4	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH	85207A	-	-	-
5	NO. 2 WASHER BRACKET	85362	See step 5	-	-
6	WASHER BRACKET	85361C	See step 6	-	-
7	WASHER HOSE	-	-	-	-

*A	w/ Headlight Cleaner System	-	-
•	Non-reusable part	-	-

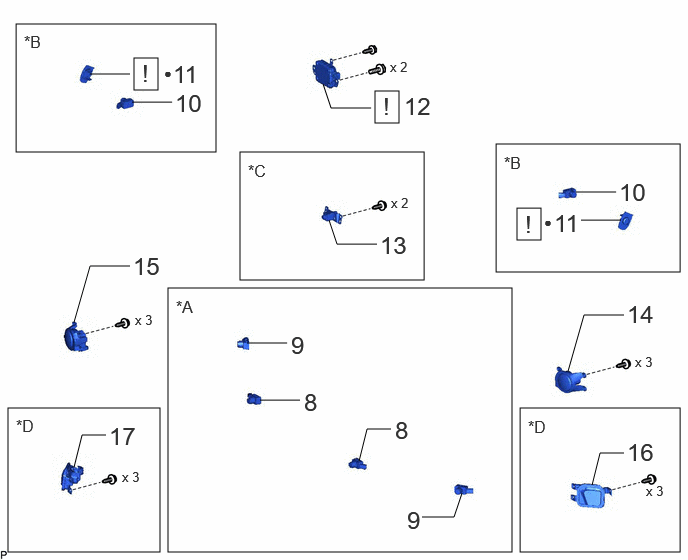

Fig 2: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
8	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-
9	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
10	FRONT SIDE ULTRASONIC SENSOR	89341M	-	-	-
11	FRONT SIDE ULTRASONIC SENSOR RETAINER	89C48F	See step 11	-	-
12	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B	See step 12	-	-
13	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-
14	FOG LIGHT UNIT LH	-	-	-	-
15	FOG LIGHT UNIT RH	-	-	-	-
16	CORNERING LIGHT ASSEMBLY LH	81390E	-	-	-
17	CORNERING LIGHT ASSEMBLY RH	81360E	-	-	-

*A	w/ Parking Support Brake System	*B	w/ Advanced Park
*C	w/ Panoramic View Monitor System	*D	w/ Cornering Light
•	Non-reusable part	-	-

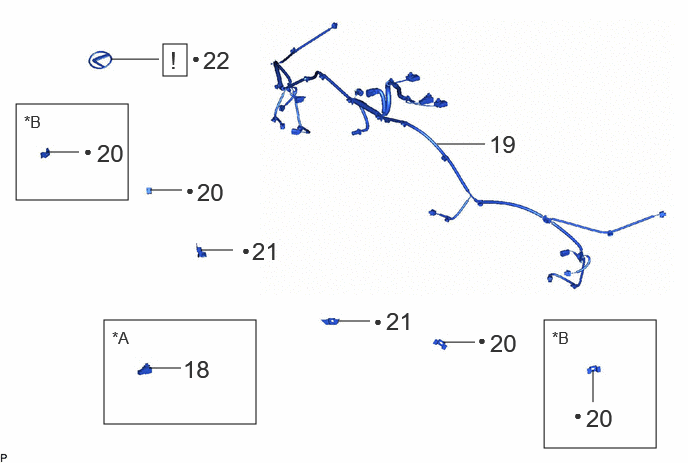

Fig 3: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
18	CONNECTOR COVER	82H21Z	-	-	-
19	NO. 4 ENGINE ROOM WIRE	82114	-	-	-
20	FRONT ULTRASONIC SENSOR CLIP	89348X	-	-	-
21	NO. 2 FRONT ULTRASONIC SENSOR CLIP	89C48	-	-	-
22	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	75311	See step 22	-	-

*A	w/ Connector Cover	*B	w/ Advanced Park
•	Non-reusable part	-	-

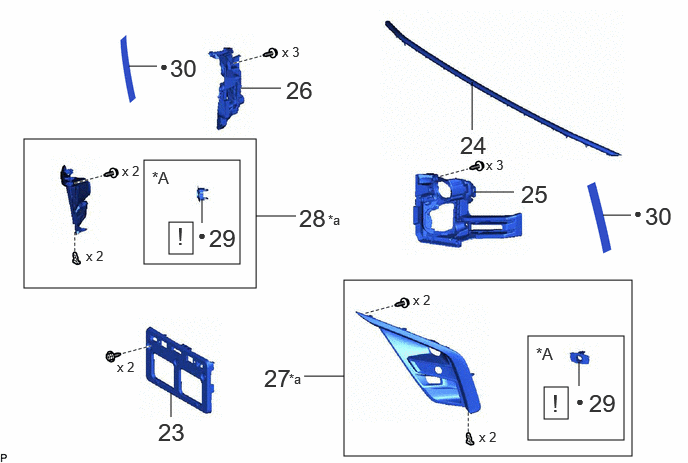

Fig 4: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
23	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114A	-	-	-
24	HOOD TO FRONT END PANEL SEAL	53395J	-	-	-
25	FOG LIGHT MOUNTING BRACKET LH	52126D	-	-	-
26	FOG LIGHT MOUNTING BRACKET RH	52125A	-	-	-
27	FOG LIGHT COVER LH	81482C	-	-	-
28	FOG LIGHT COVER RH	81481E	-	-	-
29	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D	See step 29	-	-
30	NO. 1 MOULDING TAPE	75895K	-	-	-

*A	w/ Parking Support Brake System	-	-
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-
•	Non-reusable part	-	-

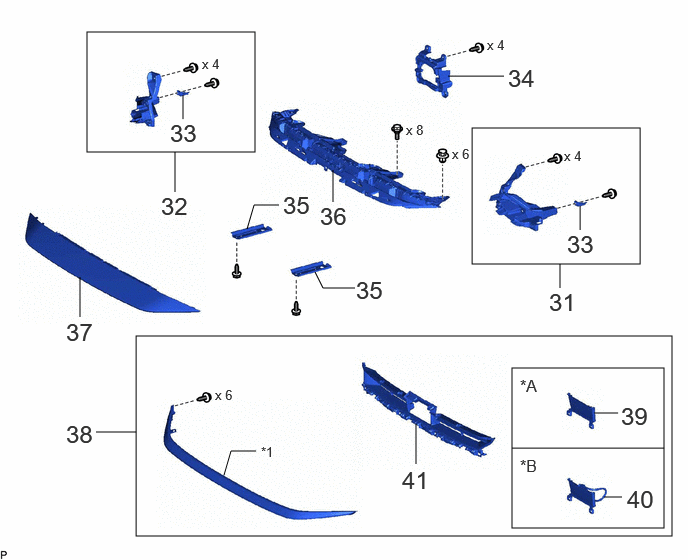

Fig 5: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
31	FRONT BUMPER SIDE BRACKET LH	52144D	-	-	-
32	FRONT BUMPER SIDE BRACKET RH	52143D	-	-	-
33	NO. 1 FRONT BUMPER LOWER RETAINER	52526A	-	-	-
34	NO. 2 RADIATOR GRILLE BRACKET	53116B	-	-	-
35	FRONT BUMPER UPPER RETAINER	52521C	-	-	-
36	RADIATOR GRILLE BRACKET	53115B	-	-	-
37	FRONT BUMPER MOULDING	52711C	-	-	-
38	RADIATOR GRILLE SUB-ASSEMBLY	-	-	-	-
39	NO. 2 RADIATOR GRILLE GARNISH	53142G	-	-	-
40	NO. 2 RADIATOR GRILLE GARNISH	53142G	-	-	-
41	RADIATOR GRILLE GARNISH	53141H	-	-	-

*A	w/o Heater	*B	w/ Heater
*1	NO. 1 RADIATOR GRILLE MOULDING	-	-

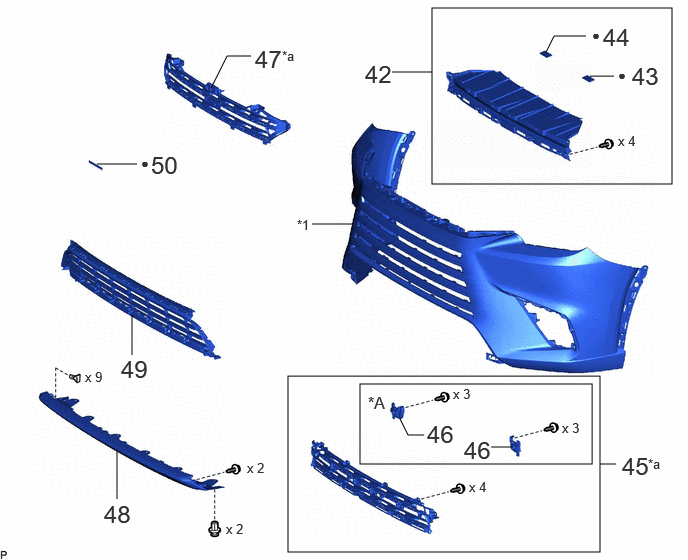

Fig 6: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (6 Of 8)

Procedure		Part Name Code
42	NO. 1 RADIATOR GRILLE SEAL	53155D	-	-	-
43	FRONT BUMPER PAD LH	52423	-	-	-
44	FRONT BUMPER PAD RH	52422B	-	-	-
45	RADIATOR GRILLE	53111	-	-	-
46	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48G	-	-	-
47	RADIATOR GRILLE ASSEMBLY	-	-	-	-
48	FRONT BUMPER GUARD	52411	-	-	-
49	NO. 1 LOWER RADIATOR GRILLE	53112E	-	-	-
50	FRONT BUMPER PROTECTOR	52541	-	-	-

*A	w/ Parking Support Brake System	-	-
*1	FRONT BUMPER COVER	-	-
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-
•	Non-reusable part	-	-

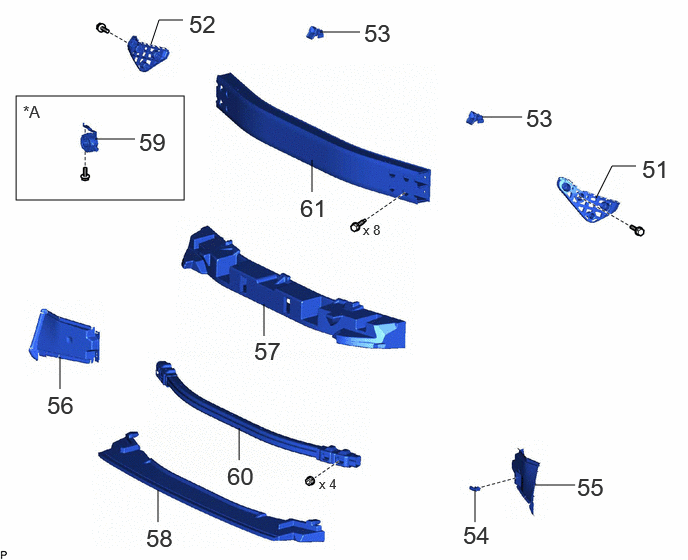

Fig 7: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (7 Of 8)

Procedure		Part Name Code
51	FRONT BUMPER SIDE RETAINER LH	52536	-	-	-
52	FRONT BUMPER SIDE RETAINER RH	52535	-	-	-
53	NO. 2 FRONT BUMPER LOWER RETAINER	52527B	-	-	-
54	THERMISTOR ASSEMBLY	88790B	-	-	-
55	FRONT RADIATOR SIDE AIR GUIDE PLATE LH	16695A	-	-	-
56	FRONT RADIATOR SIDE AIR GUIDE PLATE RH	16691A	-	-	-
57	FRONT BUMPER ENERGY ABSORBER	52611	-	-	-
58	FRONT BUMPER LOWER ABSORBER	52618	-	-	-
59	VEHICLE APPROACHING SPEAKER ASSEMBLY	86570	-	-	-
60	NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	52029C	-	-	-
61	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	52021	-	-	-

w/ Acoustic Vehicle Alerting System

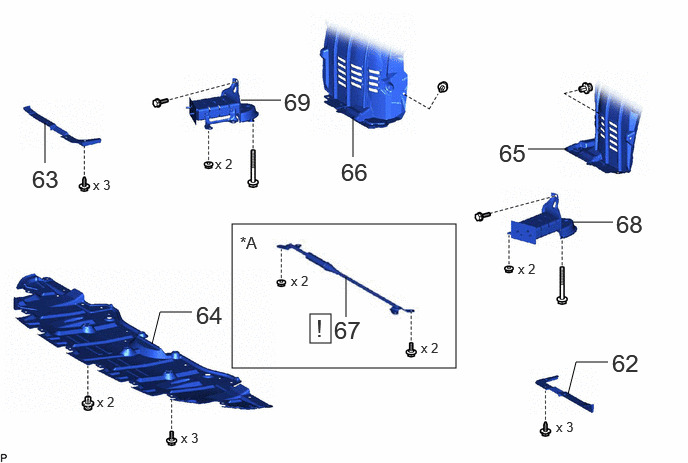

Fig 8: Front Bumper (Except Sport Package) Disassembly Components [09/2023 - 12/2023] (8 Of 8)

Procedure		Part Name Code
62	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
63	FRONT WHEEL OPENING EXTENSION PAD RH	53851D	-	-	-
64	NO. 1 ENGINE UNDER COVER	51441	-	-	-
65	FRONT FENDER LINER LH	53876A	-	-	-
66	FRONT FENDER LINER RH	53875A	-	-	-
67	SUSPENSION TOWER DAMPER	48691E	See step 67	-	-
68	FRONT BUMPER EXTENSION SUB-ASSEMBLY LH	52103A	-	-	-
69	FRONT BUMPER EXTENSION SUB-ASSEMBLY RH	52102B	-	-	-

w/ Suspension Tower Damper
