COMPONENTS (REASSEMBLY)

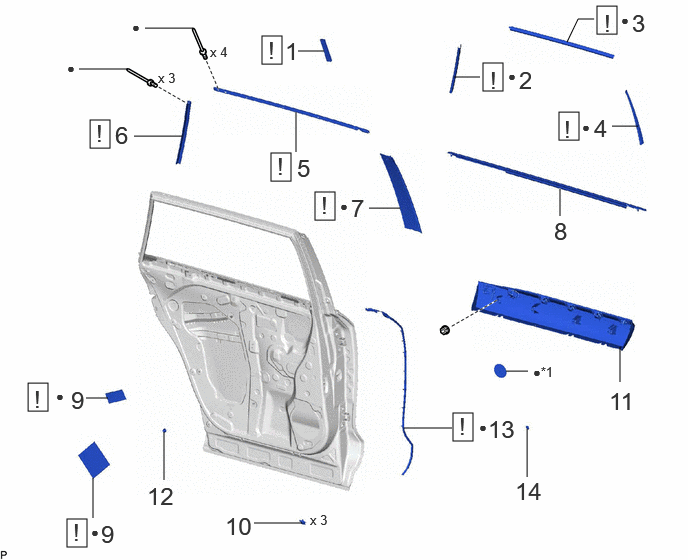

Fig 1: Rear Door Reassembly Components [09/2023 - 12/2023] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BLE DOOR DIGITAL KEY RECEIVER ASSEMBLY	-	See step 1	-	-
2	REAR DOOR OUTSIDE STRIPE	75988E	See step 2	-	-
3	REAR INNER BLACK OUT TAPE	75954A	See step 3	-	-
4	REAR DOOR LOWER OUTSIDE STRIPE	75978H	See step 4	-	-
5	REAR DOOR WINDOW FRAME UPPER MOULDING	75764A	See step 5	-	-
6	REAR DOOR WINDOW FRAME REAR MOULDING	75766A	See step 6	-	-
7	REAR DOOR WINDOW FRAME FRONT MOULDING	75762A	See step 7	-	-
8	REAR DOOR BELT MOULDING ASSEMBLY	75740	-	-	-
9	REAR DOOR SILENCER PAD	67811A	See step 9	-	-
10	REAR DOOR DUST PROOF SEAL	67837C	-	-	-
11	REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY	75076	-	-	-
12	REAR DOOR PANEL CUSHION	-	-	-	-
13	REAR DOOR NO. 3 WEATHERSTRIP	67896	See step 13	-	-
14	DOOR WINDOW FRAME MOULDING CLIP	75792	-	-	-

*1	PLUG PLATE	-	-
•	Non-reusable part	-	-

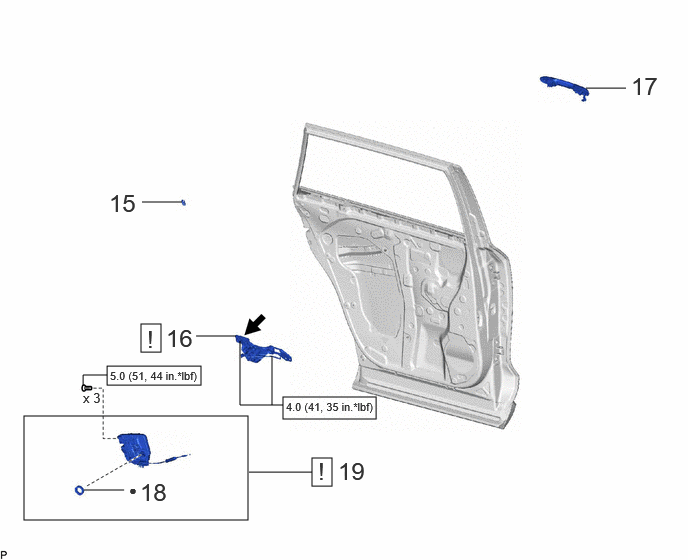

Fig 2: Rear Door Reassembly Components With Torque Specifications [09/2023 - 12/2023] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
15	REAR DOOR LOCK CHILD PROTECTION COVER	67836D	-	-	-
16	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY	69204A	See step 16	-	-
17	REAR DOOR OUTSIDE HANDLE ASSEMBLY	69240	-	-	-
18	DOOR LOCK WIRING HARNESS SEAL	69318D	-	-	-
19	REAR DOOR LOCK WITH MOTOR ASSEMBLY WITH CABLE	-	See step 19	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

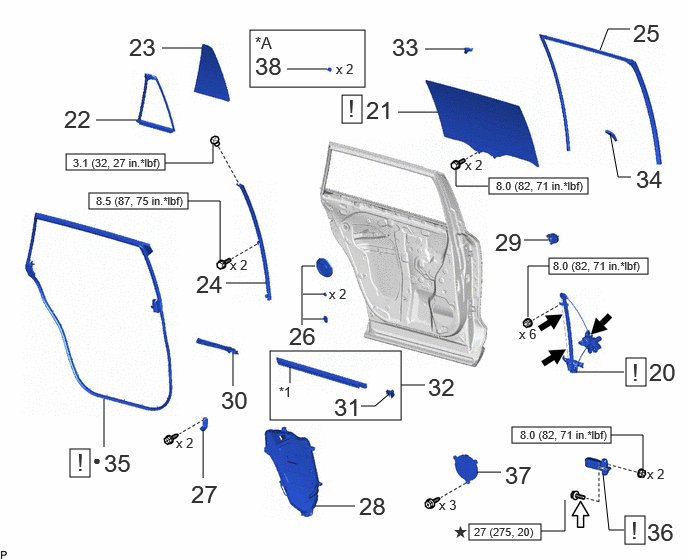

Fig 3: Rear Door Reassembly Components With Torque Specifications [09/2023 - 12/2023] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
20	REAR DOOR WINDOW REGULATOR ASSEMBLY	-	See step 20	-	-
21	REAR DOOR GLASS SUB-ASSEMBLY	68104	See step 21	-	-
22	REAR DOOR QUARTER WINDOW WEATHERSTRIP	68189	-	-	-
23	REAR DOOR QUARTER WINDOW GLASS	68124B	-	-	-
24	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY	67408E	-	-	-
25	REAR DOOR GLASS RUN	68152C	-	-	-
26	HOLE PLUG	-	-	-	-
27	REAR DOOR ARMREST SET BRACKET	67646A	-	-	-
28	REAR DOOR SERVICE HOLE COVER	67842E	-	-	-
29	REAR DOOR LOCK CONTROL BELLCRANK SUB-ASSEMBLY	69701H	-	-	-
30	QUARTER WINDOW STOP UPPER	67225A	-	-	-
31	NO. 1 REAR DOOR VENT SEAL	67848A	-	-	-
32	REAR DOOR INNER GLASS WEATHERSTRIP WITH NO. 1 REAR DOOR VENT SEAL	-	-	-	-
33	NO. 2 REAR DOOR FRAME GARNISH	67676C	-	-	-
34	REAR DOOR FRAME GARNISH	67674A	-	-	-
35	REAR DOOR WEATHERSTRIP	67872	See step 35	-	-
36	REAR DOOR CHECK ASSEMBLY	68640A	See step 36	-	-
37	REAR DOOR SPEAKER COVER	86262D	-	-	-
38	CURTAIN HOOK	65923E	-	-	-

*A	w/ Sunshade	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease		Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
*	Precoated part	-	-
*1	REAR DOOR INNER GLASS WEATHERSTRIP	-	-

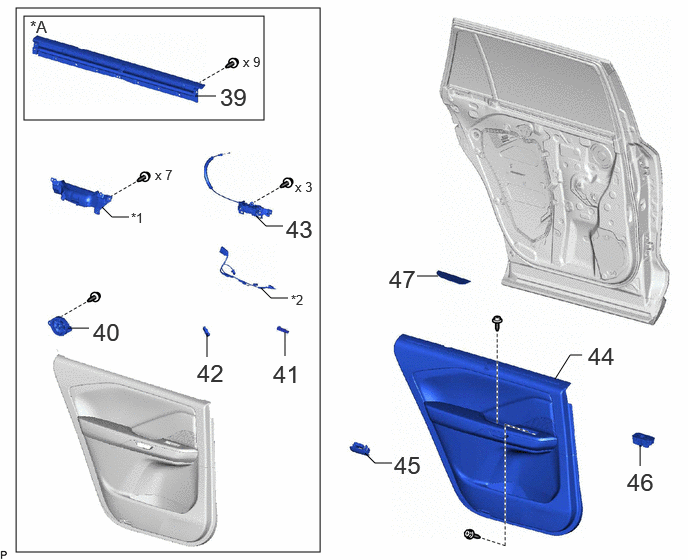

Fig 4: Rear Door Reassembly Components [09/2023 - 12/2023] (4 Of 5)

Procedure		Part Name Code
39	REAR CURTAIN SUB-ASSEMBLY	65908D	-	-	-
40	REAR SPEAKER ASSEMBLY	86160B	-	-	-
41	REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY	81080G	-	-	-
42	NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080U	-	-	-
43	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY	-	-	-	-
44	REAR DOOR TRIM BOARD SUB-ASSEMBLY	67604	-	-	-
45	REAR DOOR COURTESY LIGHT ASSEMBLY	81230G	-	-	-
46	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-	-	-	-
47	REAR DOOR ARMREST COVER	74262A	-	-	-

*A	w/ Sunshade	-	-
*1	COVER	*2	REAR DOOR WIRE

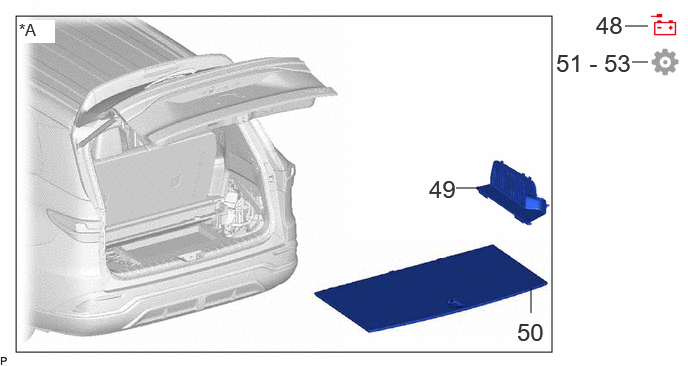

Fig 5: Rear Door Reassembly Components [09/2023 - 12/2023] (5 Of 5)

Procedure		Part Name Code
48	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
49	BATTERY SERVICE HOLE COVER	58441L	-	-	-
50	DECK BOARD ASSEMBLY	58410B	-	-	-
51	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step 51
52	INITIALIZE POWER WINDOW CONTROL SYSTEM	-	-	-	See step 52
53	INSPECT POWER WINDOW OPERATION	-	-	-	See step 53

for HEV Model
