Caution / Notice / Hint

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

COMPONENTS (REMOVAL)

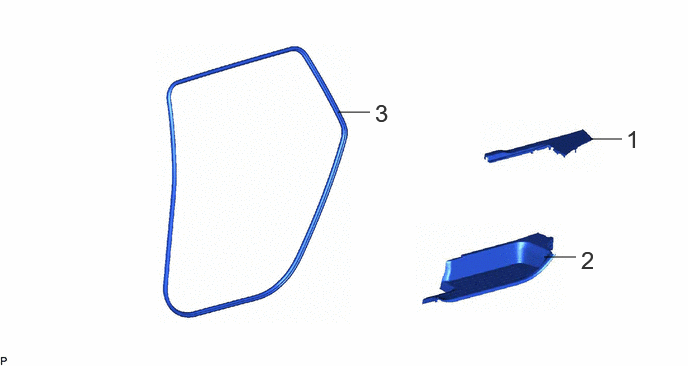

Fig 1: Rear Door Opening Trim Weatherstrip Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	REAR OUTER SEAT TRACK BRACKET COVER	72138M	-	-	-
2	REAR DOOR SCUFF PLATE	67918A	-	-	-
3	REAR DOOR OPENING TRIM WEATHERSTRIP	62332C	-	-	-
