Caution / Notice / Hint

COMPONENTS (REMOVAL)

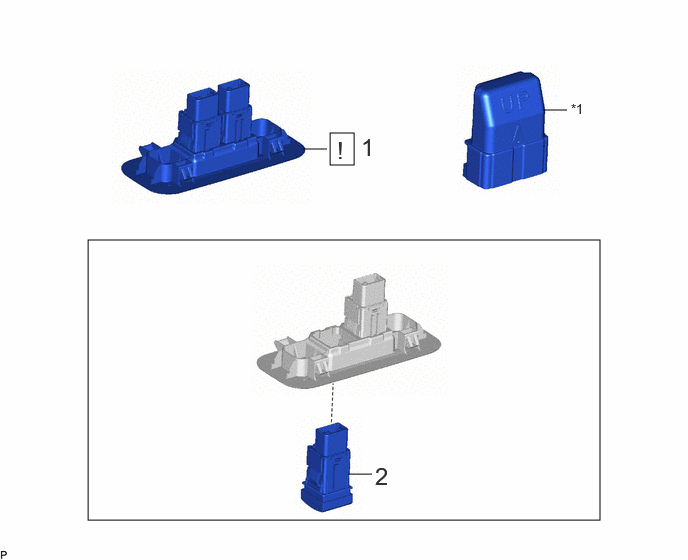

Fig 1: Power Back Door Closer Switch Removal Components
GTY1202826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 BACK DOOR FINISH COVER RH 75837D See step  1 - -
2 NO. 1 POWER BACK DOOR CONTROL SWITCH 84966A - - -
*1 DOOR CONTROL SWITCH COVER - -
