The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel filler opening lid sub-assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly | Parking Support Brake System* | Refer to INITIALIZATION [09/2023 - ] |
|
Initialize fold seat control ECU | Rear Power Seat Control System | Refer to INITIALIZATION [09/2023 - ] |
| Tires | for Gasoline Model AWD:
|
Dynamic Torque Control AWD System | Refer to CALIBRATION [09/2023 - ] |
|
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below | |
| Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | Refer to CALIBRATION [09/2023 - ] | |
| Parking assist ECU initialization | Panoramic View Monitor System | Refer to CALIBRATION [09/2023 - ] |
*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
*2: Also necessary after performing a tire rotation.
*3: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
NOTE:
- When the cable is disconnected from the negative (-) auxiliary battery terminal and the security lock setting has been enabled, multi-display operations will be disabled upon next startup unless the password is entered. Be sure to check the security lock setting before disconnecting the cable from the negative (-) auxiliary battery terminal.
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. Refer to PRECAUTION [09/2023 - ] Lighting System (w/ Automatic Headlight Beam Level Control System) Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [09/2023 - ] Front Camera System Adaptive High Beam System - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Back Door System Reset back door close position Refer to INITIALIZATION [09/2023 - ] Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

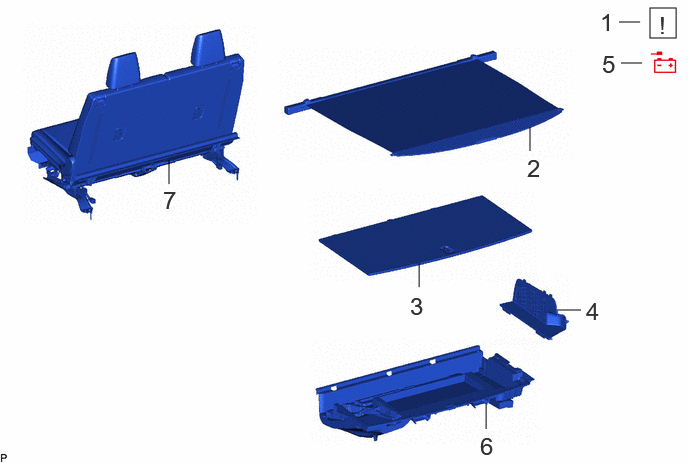

| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| 3 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 4 | BATTERY SERVICE HOLE COVER | 58441L | - | - | - |
| 5 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 6 | REAR DECK FLOOR BOX | 64993 | - | - | - |
| 7 | REAR NO. 2 SEAT ASSEMBLY | - | - | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

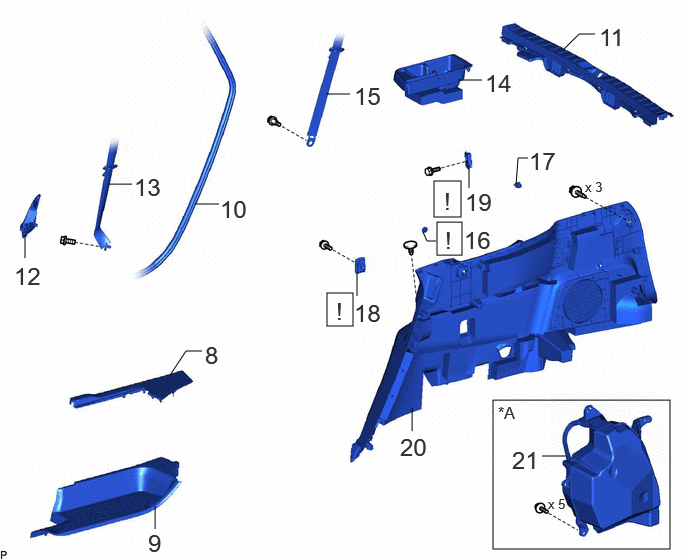

| 8 | REAR OUTER SEAT TRACK BRACKET COVER LH | 72138M | - | - | - |
| 9 | REAR DOOR SCUFF PLATE LH | 67918A | - | - | - |
| 10 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | 62332C | - | - | - |
| 11 | REAR FLOOR FINISH PLATE | 58387B | - | - | - |
| 12 | CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH | 73296A | - | - | - |
| 13 | REAR SEAT OUTER BELT ASSEMBLY LH | 73370E | - | - | - |
| 14 | DECK SIDE TRIM COVER LH | 64715C | - | - | - |
| 15 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH | 73570 | - | - | - |
| 16 | DECK TRIM POCKET COVER | 64974 | See step 16 | - | - |
| 17 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | 64725F | - | - | - |
| 18 | ROPE HOOK | 66311 | See step 18 | - | - |
| 19 | ROPE HOOK ASSEMBLY | 66310H | See step 19 | - | - |
| 20 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C | - | - | - |
| 21 | NO. 1 SPEAKER ASSEMBLY WITH BOX | 86150 | - | - | - |
| *A | w/ Woofer | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

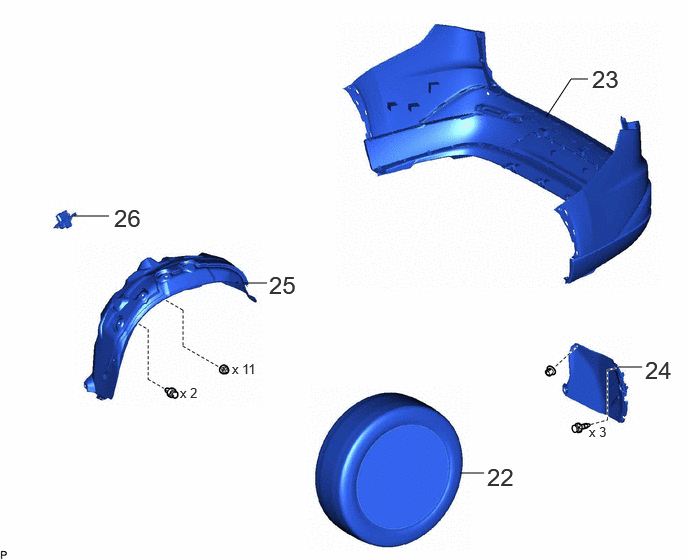

| 22 | REAR WHEEL LH | - | - | - | - |
| 23 | REAR BUMPER ASSEMBLY | - | - | - | - |
| 24 | REAR BUMPER SIDE SEAL LH | 52592 | - | - | - |
| 25 | REAR WHEEL HOUSE LINER LH | 65638 | - | - | - |
| 26 | FUEL LID WITH MOTOR LOCK ASSEMBLY | 77030A | - | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

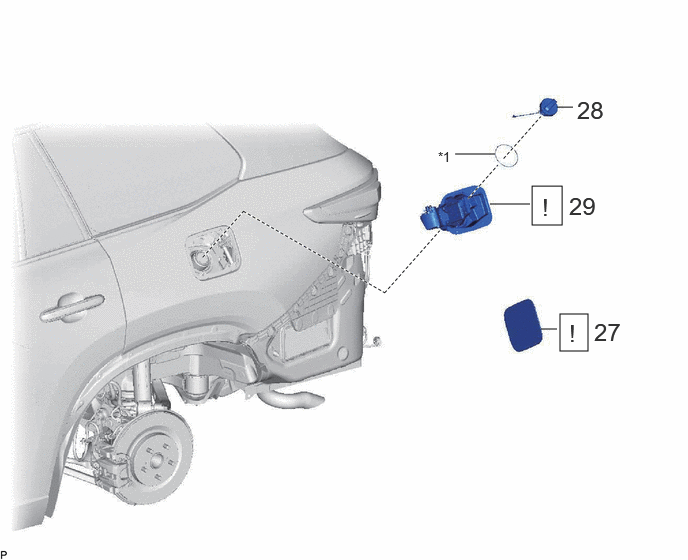

| 27 | FUEL FILLER OUTER OPENING LID | 77351 | See step 27 | - | - |
| 28 | FUEL TANK CAP ASSEMBLY | 77310A | - | - | - |
| 29 | FUEL FILLER OPENING LID SUB-ASSEMBLY | 77305A | See step 29 | - | - |
| *1 | FUEL INLET BOX RING | - | - |
