Home >> Lexus >> 2024 >> TX 350 Base, FWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) - Service Information (2 Of 2) >> Fuel Lid Opener Motor Assembly >> Removal [09/2023 - ] >> Procedure

Removal [09/2023 - ]: Procedure

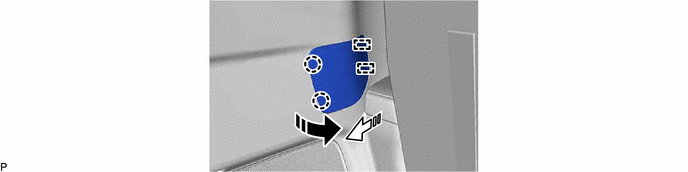

  1. REMOVE DECK TRIM SIDE SERVICE HOLE COVER
    1. GTY1239105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

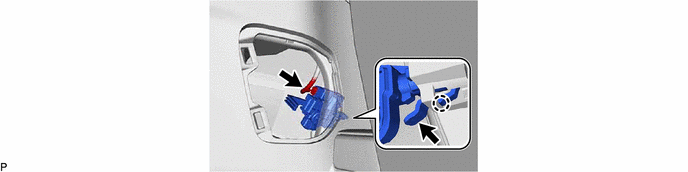

  2. REMOVE FUEL LID WITH MOTOR LOCK ASSEMBLY
    1. GTY1228816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
