Caution / Notice / Hint

COMPONENTS (REMOVAL)

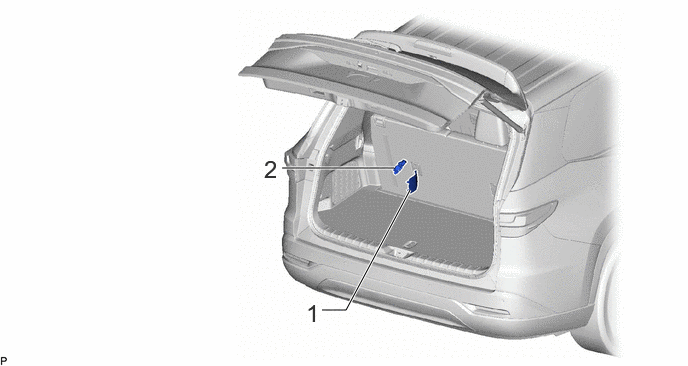

Fig 1: Fuel Lid Opener Motor Assembly Removal Components
GTY1229053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 DECK TRIM SIDE SERVICE HOLE COVER 64735 - - -
2 FUEL LID WITH MOTOR LOCK ASSEMBLY 77030A - - -
