Inspection [09/2023 - ]: Procedure
- INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY
- Check the operation of the fuel lid lock with motor assembly (motor operation).
- Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and check that the fuel lid lock with motor assembly operates smoothly.
OK
Auxiliary Battery Connection Specified Condition Auxiliary battery positive (+) → Terminal 1 (B)
Auxiliary battery negative (-) → Terminal 2 (E)16.2 to 17.4 mm

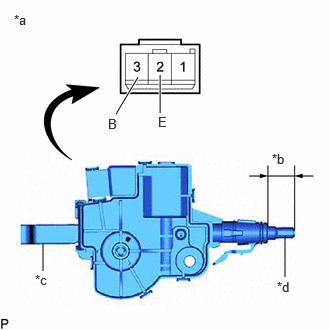

(0.638 to 0.685 in.)*a Component without harness connected
(Fuel Lid Lock with Motor Assembly)*b Shaft Stroke *c Lever *d Shaft If the result is not as specified, replace the fuel lid lock with motor assembly.
- Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and check that the fuel lid lock with motor assembly operates smoothly.
- Check the operation of the fuel lid lock with motor assembly (fuel lid courtesy switch). (w/ Fuel Lid Courtesy Switch)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition Result 2 (E) - 3 (B) Not pushed (ON) Below 7.5 Ω Ω 2 (E) - 3 (B) Pushed (OFF) 50 MΩ or higher MΩ If the result is not as specified, replace the fuel lid lock with motor assembly.
*a Component without harness connected
(Fuel Lid Lock with Motor Assembly)*b Shaft Stroke *c Lever *d Shaft
- Measure the resistance according to the value(s) in the table below.
- Measure the shaft stroke.
OK
Area Condition Specified Condition Shaft stroke Lever pulled 18.3 mm
(0.720 in.)If the result is not as specified, replace the fuel lid lock with motor assembly.
- Check the operation of the fuel lid lock with motor assembly (motor operation).
