The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery charger connector opening lid sub-assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Service plug grip	High voltage fuse accumulated load history reset	DTCs are stored	Refer to UTILITY [12/2023 - ]
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*	Refer to INITIALIZATION [09/2023 - ]
Fold seat control ECU1 No. 2 seat cushion frame sub-assembly LH1 No. 2 seat cushion frame sub-assembly RH1 No. 2 seatback frame sub-assembly LH1 No. 2 seatback frame sub-assembly RH*1	Initialize fold seat control ECU	Rear Power Seat Control System	Refer to INITIALIZATION [09/2023 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

WARNING:

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information .

Refer to PRECAUTION [09/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [09/2023 - ]
Lighting System (w/ Automatic Headlight Beam Level Control System)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [09/2023 - ]
Front Camera System
Adaptive High Beam System

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

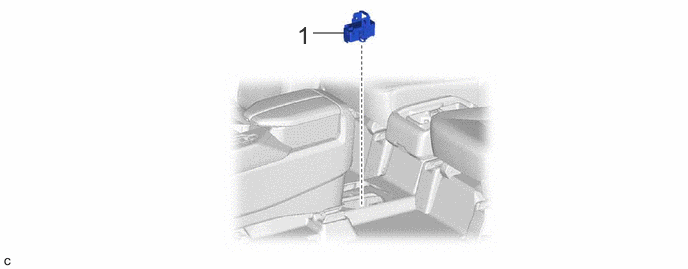

Fig 1: Charge Lid Opener Unit Removal Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	SERVICE PLUG GRIP	G3834	-	-	-

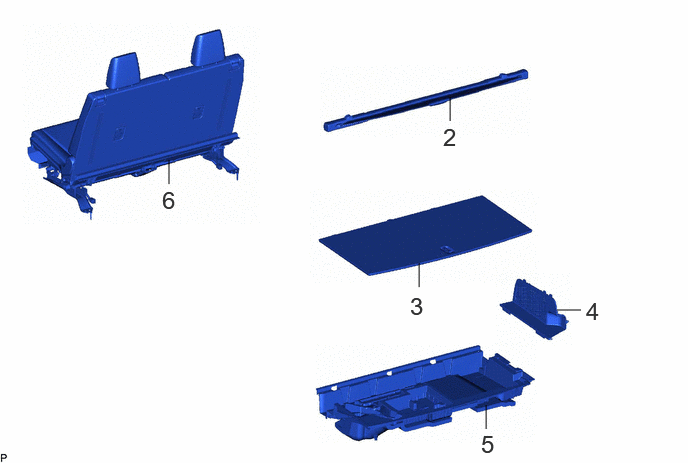

Fig 2: Charge Lid Opener Unit Removal Components (2 Of 4)

Procedure		Part Name Code
2	TONNEAU COVER ASSEMBLY	64910J	-	-	-
3	DECK BOARD ASSEMBLY	58410B	-	-	-
4	BATTERY SERVICE HOLE COVER	58441L	-	-	-
5	REAR DECK FLOOR BOX	64993	-	-	-
6	REAR NO. 2 SEAT ASSEMBLY	-	-	-	-

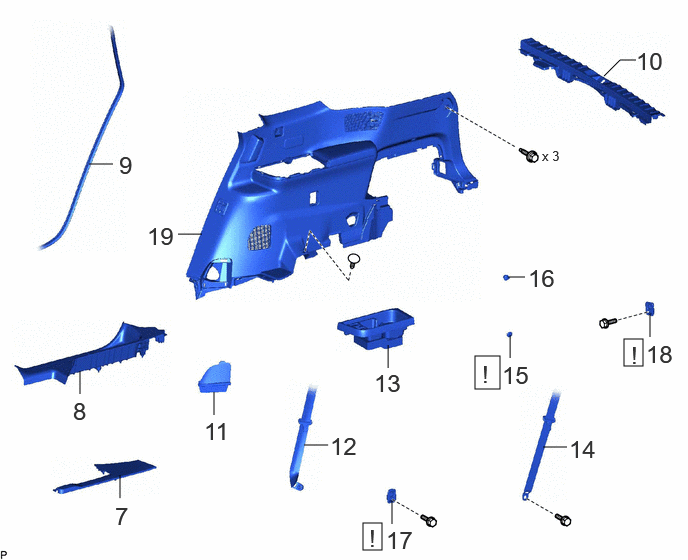

Fig 3: Charge Lid Opener Unit Removal Components (3 Of 4)

Procedure		Part Name Code
7	REAR OUTER SEAT TRACK BRACKET COVER RH	72137S	-	-	-
8	REAR DOOR SCUFF PLATE RH	67917A	-	-	-
9	REAR DOOR OPENING TRIM WEATHERSTRIP RH	62331C	-	-	-
10	REAR FLOOR FINISH PLATE	58387B	-	-	-
11	CENTER PILLAR LOWER GARNISH BELT HOLE COVER RH	73295A	-	-	-
12	REAR SEAT OUTER BELT ASSEMBLY RH	73360D	-	-	-
13	DECK SIDE TRIM COVER RH	64714C	-	-	-
14	REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH	73560	-	-	-
15	DECK TRIM POCKET COVER	64974	See step 15	-	-
16	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	-	-	-
17	ROPE HOOK	66311	See step 17	-	-
18	ROPE HOOK ASSEMBLY	66310H	See step 18	-	-
19	DECK TRIM SIDE PANEL ASSEMBLY RH	64730B	-	-	-

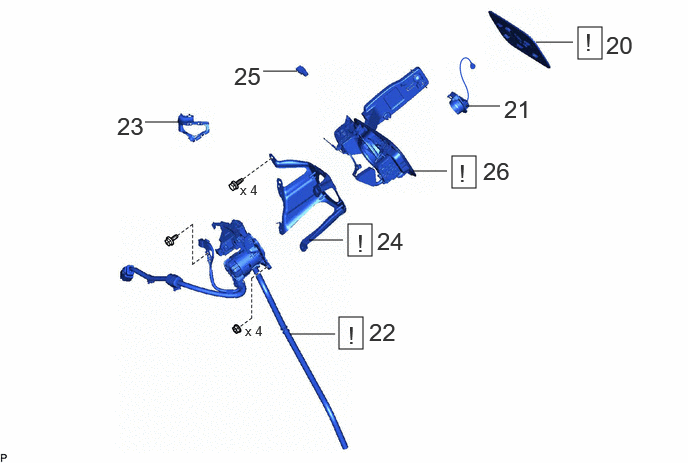

Fig 4: Charge Lid Opener Unit Removal Components (4 Of 4)

Procedure		Part Name Code
20	FUEL FILLER OUTER OPENING LID	77351	See step 20	-	-
21	CONNECTOR COVER	G9060B	-	-	-
22	AC CHARGER INLET CABLE	G9081C	See step 22	-	-
23	NO. 1 ROOF SIDE GARNISH PROTECTOR	75565H	-	-	-
24	POWER SUPPLY CONNECTOR SUPPORT PLATE	77315B	See step 24	-	-
25	SPOT LIGHT ASSEMBLY	81360N	-	-	-
26	BATTERY CHARGER CONNECTOR OPENING LID SUB-ASSEMBLY	58409E	See step 26	-	-
