Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

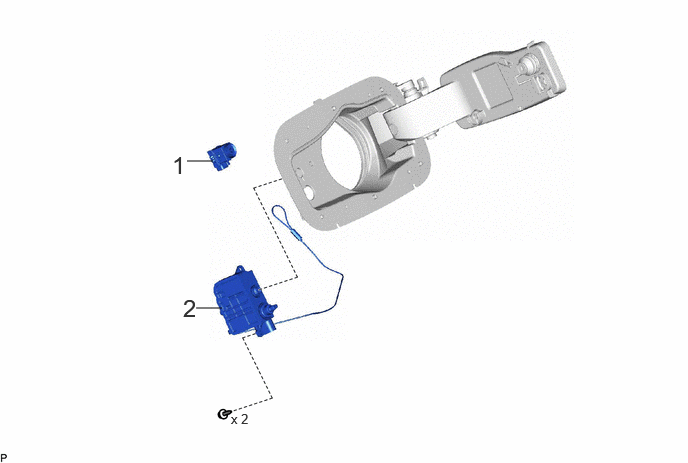

Fig 1: Charge Lid Opener Unit Reassembly Components
GTY1239807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 EV CHARGER LID INDICATOR G90H1 - - -
2 CHARGING PORT OPENING LID WITH MOTOR LOCK ASSEMBLY 77030D - - -
